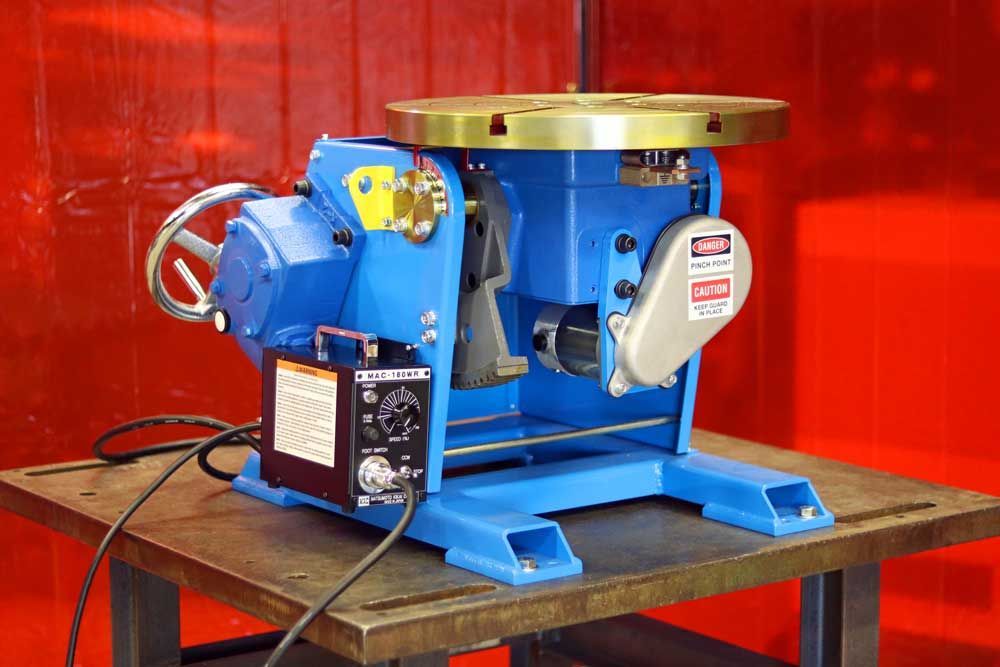

MAC PS-3F Benchtop Welding Positioner

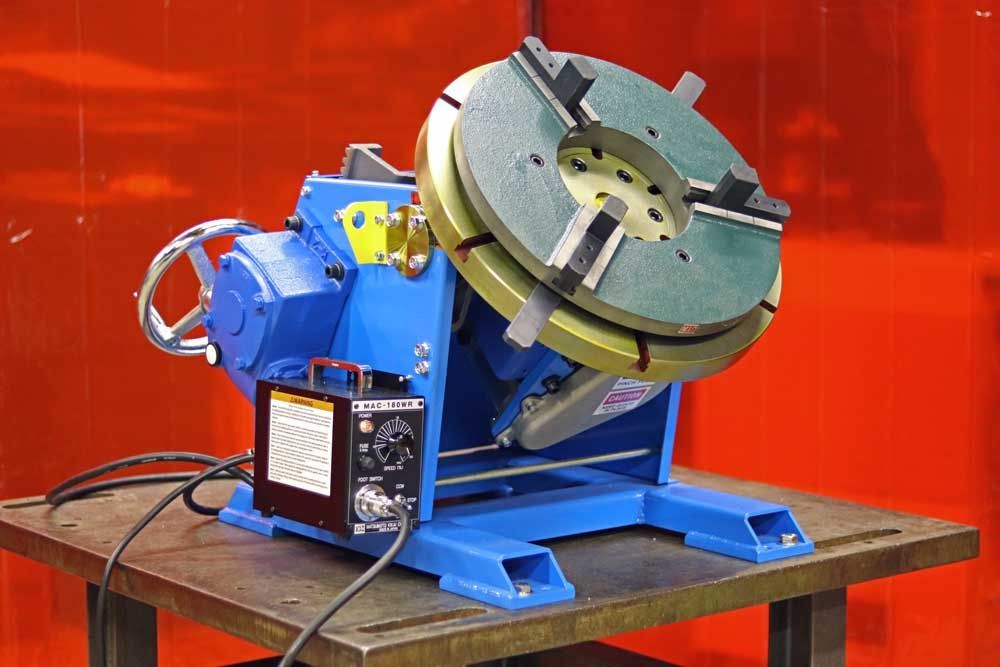

 MAC Model PS-3F Welding Positioner with Gator MT12 Chuck as shown in video below.

MAC Model PS-3F welding positioner price includes:

500 Amp Capacity welding ground

On/off foot control with 20 feet of cable.

Machined Tee slotted table with centering grooves

Variable speed table rotation with dynamic braking


Qty. 1 – MAC Model PS-3F-2.5-A welding positioner with no chuck………….……$5,399.00

Qty. 1 – MAC Model PS-3F-2.5-A welding positioner with Gator MT12 chuck…....$6,299.00  (Shown Above)


Qty. 1 – MAC Model PS-3F-2.5-A welding positioner with MAC WP-400 chuck….$6,299.00


All prices fob Allegan, MI 49010

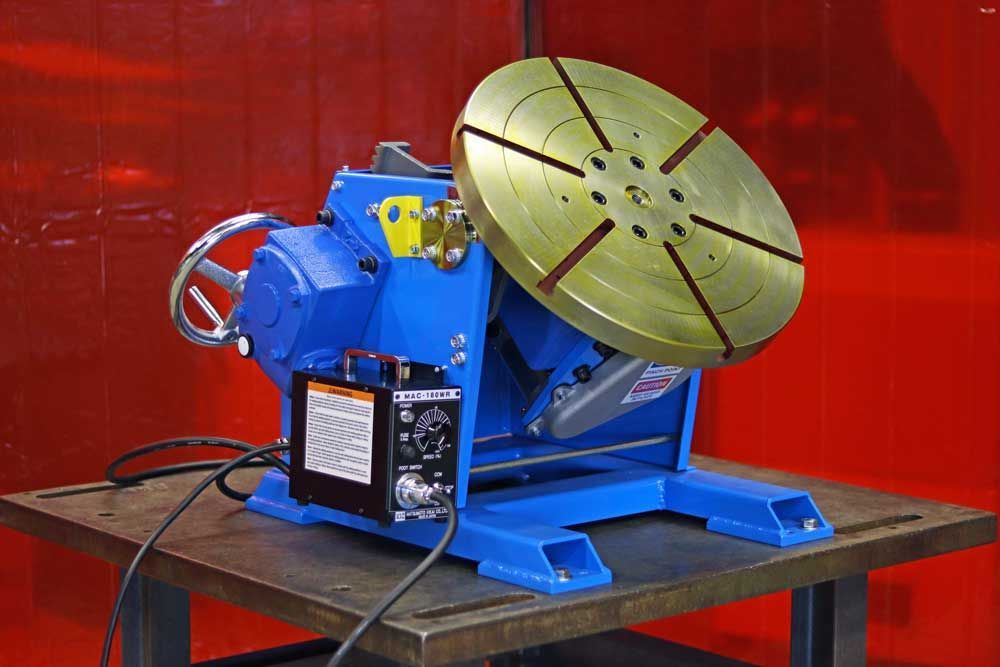

MAC PS-3F Benchtop Welding Positioner

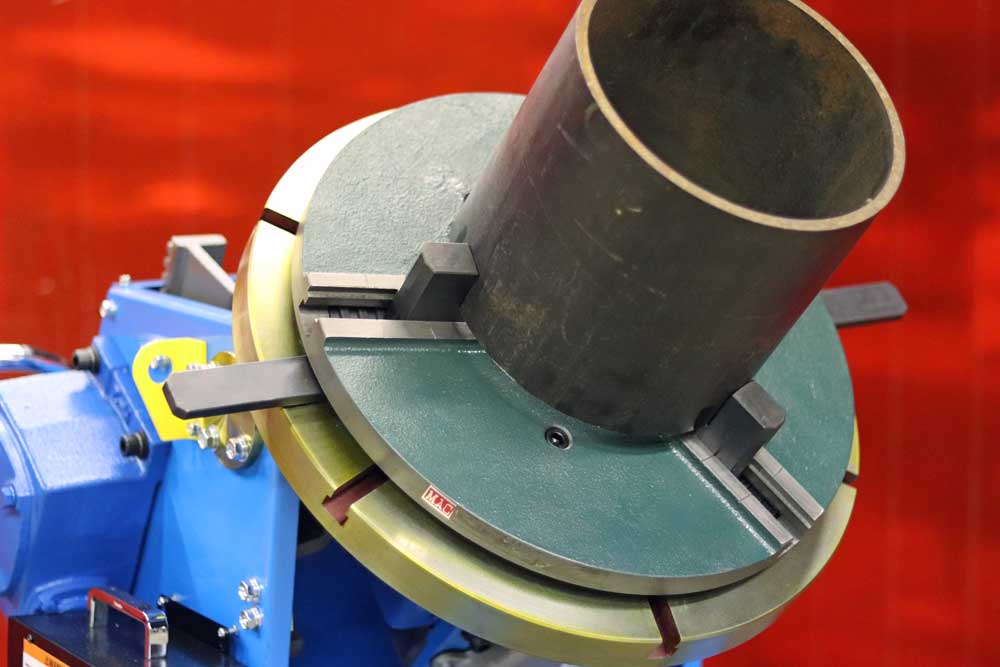

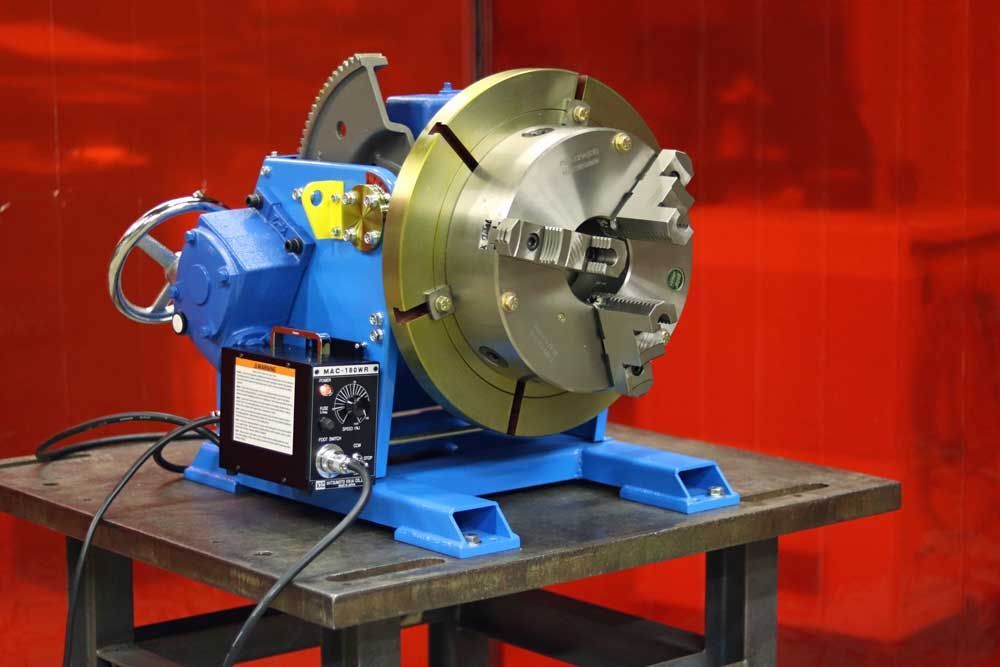

Above:  MAC PS-3F Benchtop Welding Positioner Shown with Optional Gator MT12 Welding Chuck holding a workpiece.

  • Maximum load capacity table in the flat horizontal position 990 pounds.
  • Maximum load capacity table tilted 90 degrees vertical position 650 pounds @ 4 inch CG.
  • 500 AMP Welding Current Conduction.
  • Table tilting 0 to 90 degrees forward.
  • Table Diameter 18 inches with centering grooves & 6 tee slots
  • Variable rotation speed 0.2 to 2.5 rpm.

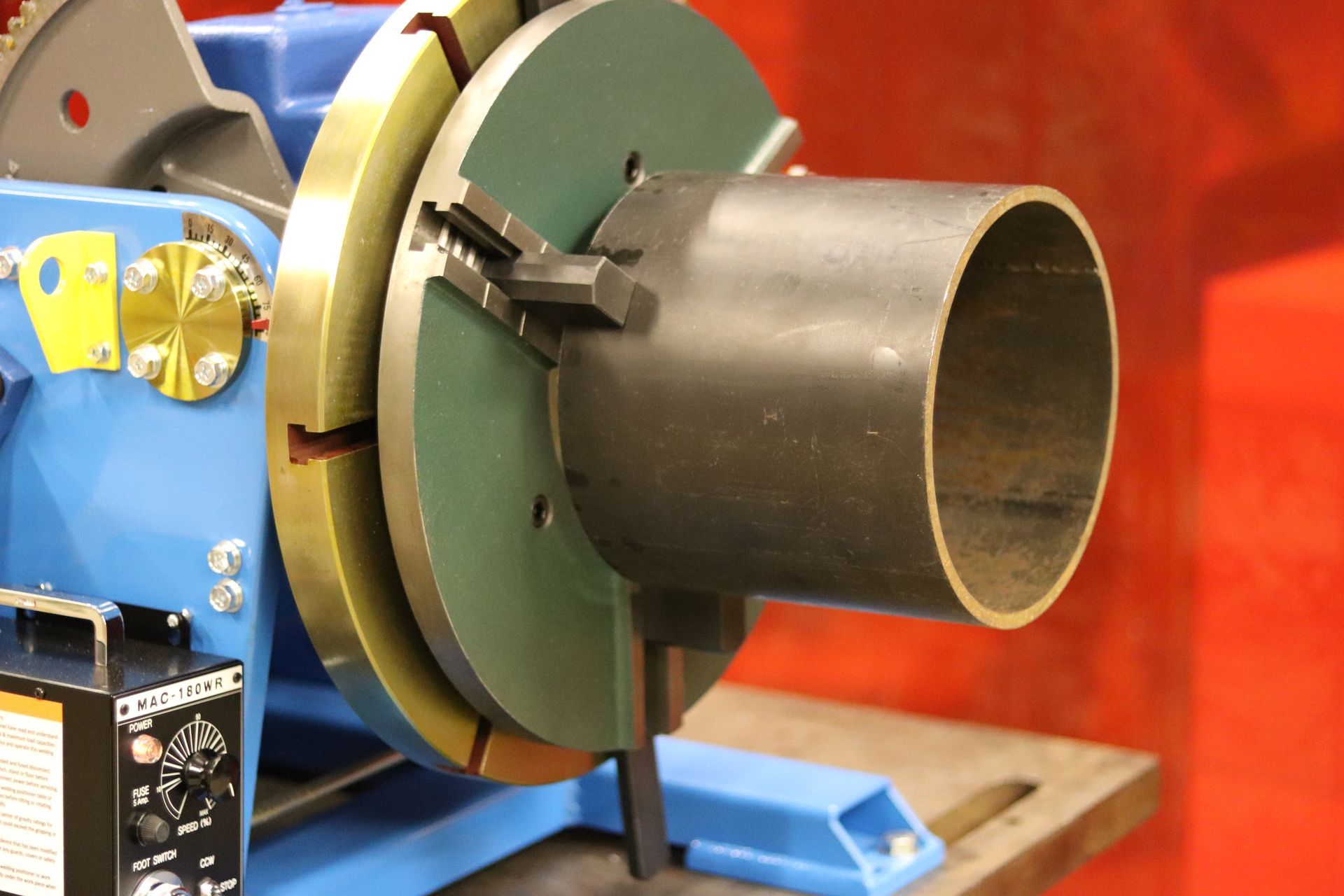

PS-3F Benchtop Welding Positioner Shown with Optional MAC WP-400 Welding Chuck holding a workpiece.

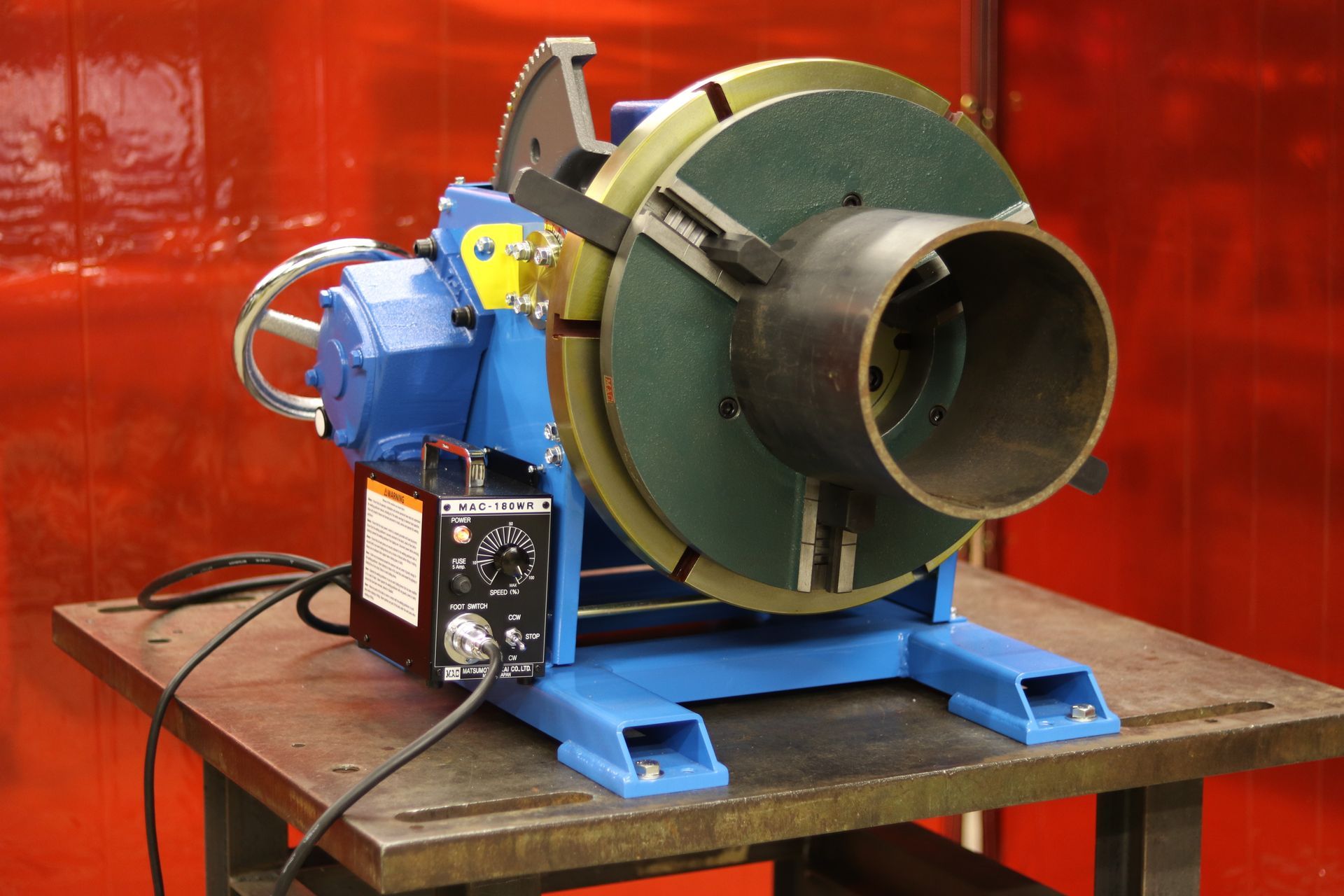

Above: PS-3F Benchtop Welding Positioner Shown with Optional MAC WP-400 Welding Chuck holding a workpiece.

SIZE MATTERS You need a 500 Amp welding ground in order to handle the most demanding MIG, TIG and Flux-Core welding, especially when welding Aluminum. The MAC PS-3F benchtop welding positioner comes standard with a 500 Amp. capacity welding ground (highest capacity in the industry).

MAC PS-3F Welding Positioner Photo Gallery Below. Click on images to enlarge.

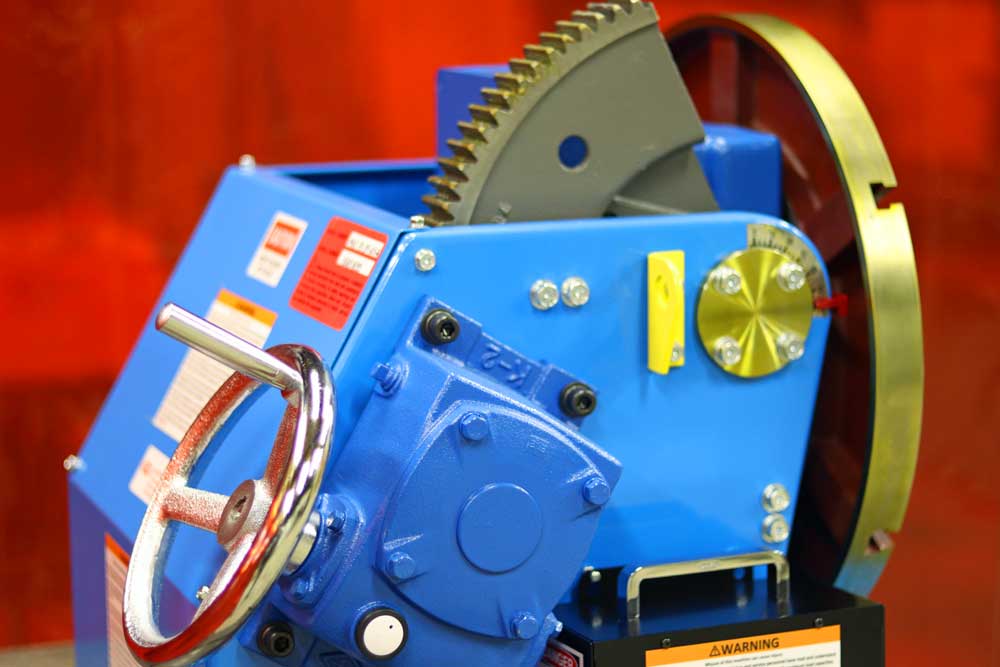

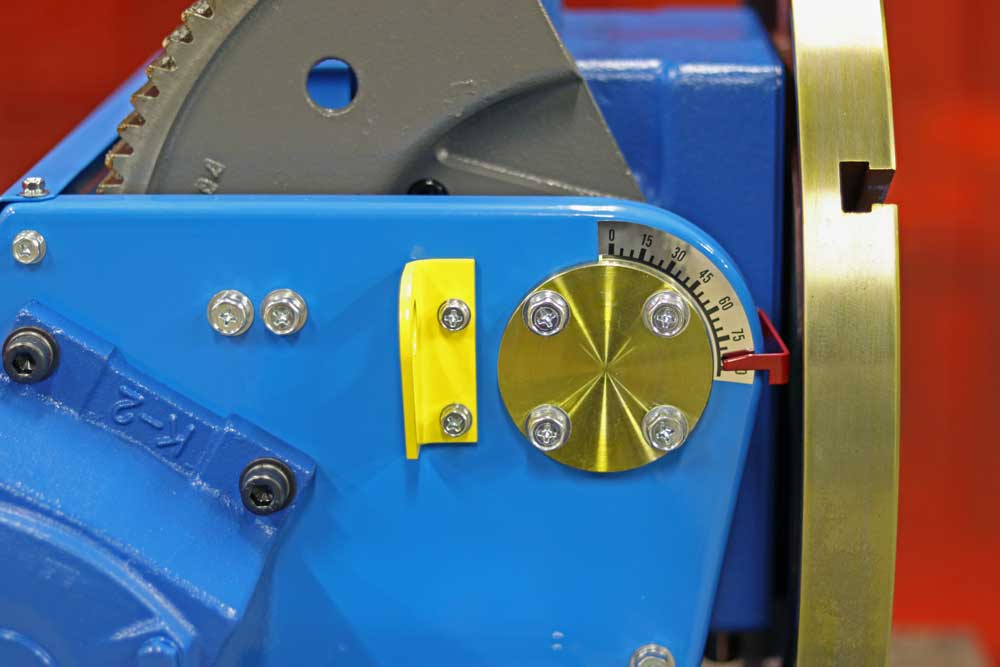

PS-3F Benchtop Welding Positioner

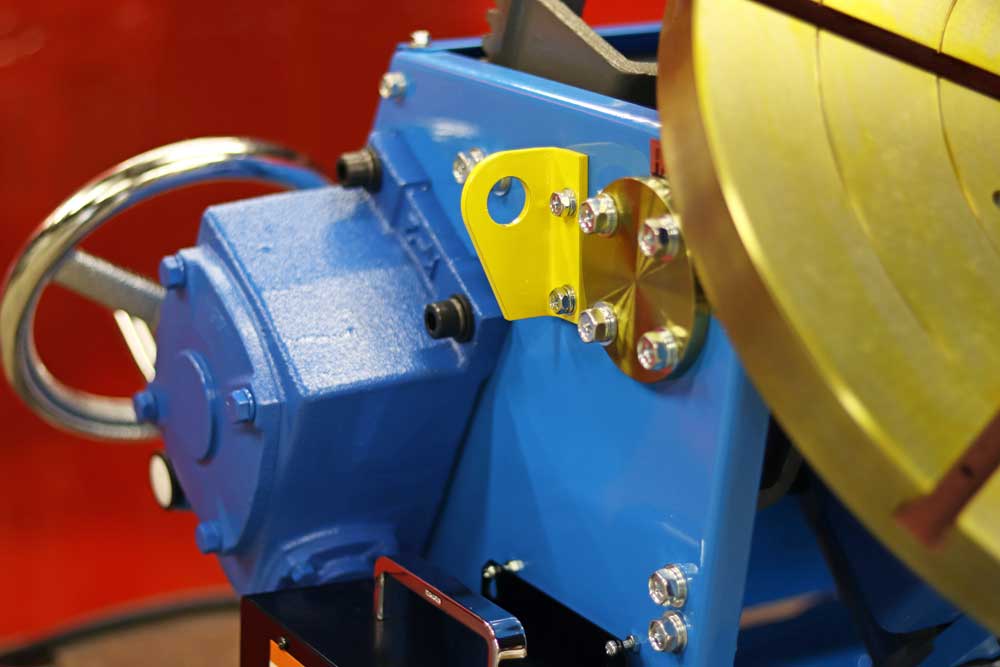

PS-3F Benchtop Welding Positioner
PS-3F Benchtop Welding Positioner
PS-3F Benchtop Welding Positioner
PS-3F Benchtop Welding Positioner
PS-3F Benchtop Welding Positioner
PS-3F Benchtop Welding Positioner
PS-3F Benchtop Welding Positioner
PS-3F Benchtop Welding Positioner

Above Video: Welding Chuck Options for the MAC Model PS-3F Benchtop Welding Positioner

PS-3F Benchtop Welding Positioner with Optional Gator MT12 Welding Chuck
Specifications: Model PS-3F Bench Top Welding Positioner
Capacity

Maximum Load Capacity Table Flat Horizontal position - 990 pounds

Maximum Load Capacity using outboard roller support - 650 pounds

Maximum Load Capacity Table Tilted 90 degrees Vertical Position:
Rating @ 4 inch CG load height from table – 650 pounds
Rating @ 8 inch CG load height from table – 437 pounds
Rating @ 12 inch CG load height from table – 329 pounds
Rating @ 16 inch CG load height from table – 264 pounds
Rating @ 20 inch CG load height from table – 220 pounds

Maximum Rotation Load Torque – 1250 inch-pound
Rating @ 2.5 inch CG Load Eccentricity from axis – 500 pounds
Rating @ 5 inch CG Load Eccentricity from axis – 250 pounds
Rating @ 8 inch CG Load Eccentricity from axis – 156 pounds

CG = Center of Gravity

Rotation

Motor: 1/4 HP DC Variable speed.
Speed Range – Variable from 0.2 to 2.5 RPM
Speed Accuracy – 2 % of base speed.
Rotation Drive – Fully enclosed & lubricated self-locking worm gear.
Tilt

Tilt Range – 90 degrees forward
Tilt Torque – Manual
Tilt Actuation – 7 inch Dia. hand wheel with self-locking worm gear.

Table

Round – 18 inch Diameter with centering grooves.
Number of Tee slots – 6 @ 60 degrees
Tee Nut bolt size – 7/16 inch
Inherent overhang – 4.21 inches

Welding Ground Conduction – 500 Amps thru spring loaded mechanical ground.

Primary Input power – AC 115 volts 60 Hz Single Phase 15 Amp.

Controls

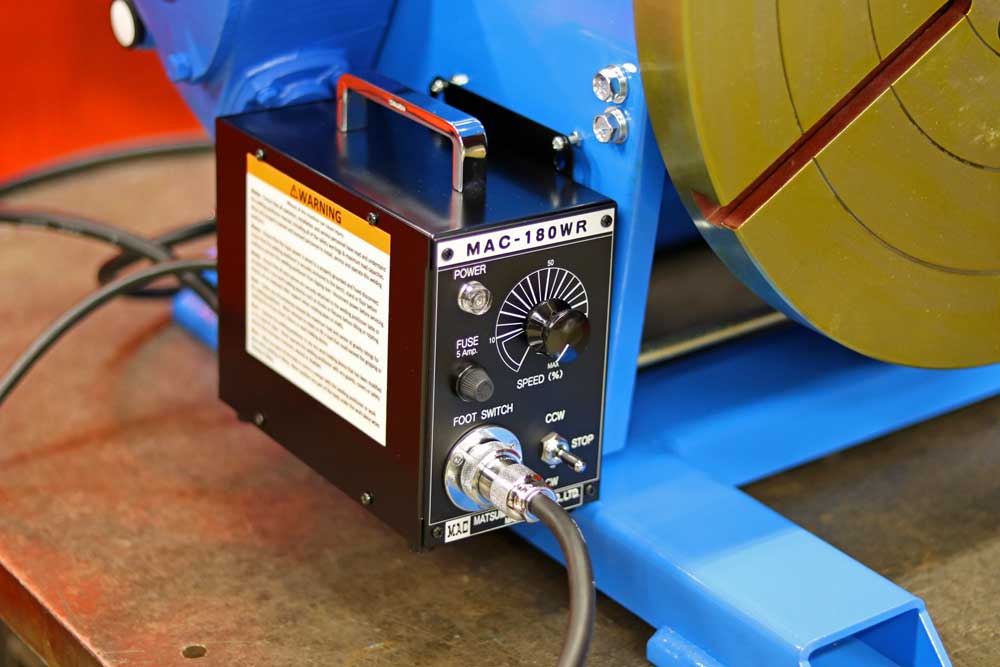

External Control box – With Power on indicator light & Foot control receptacle.
Speed Control – One turn potentiometer
Directional Control – Forward-Stop-Reverse switch.
Overload Protection – 5 Amp motor fuse.
Dynamic braking – Brings table rotation to a quick stop.
Foot Switch – Remote start/stop with 22 feet of cable.

Frame – 4 anchor bolt holes.

Approximate shipping Weight – 450 pounds, crate size 32” x 32” x 32”
MAC PS-3F Options Below:
MT-12 Welding Chuck

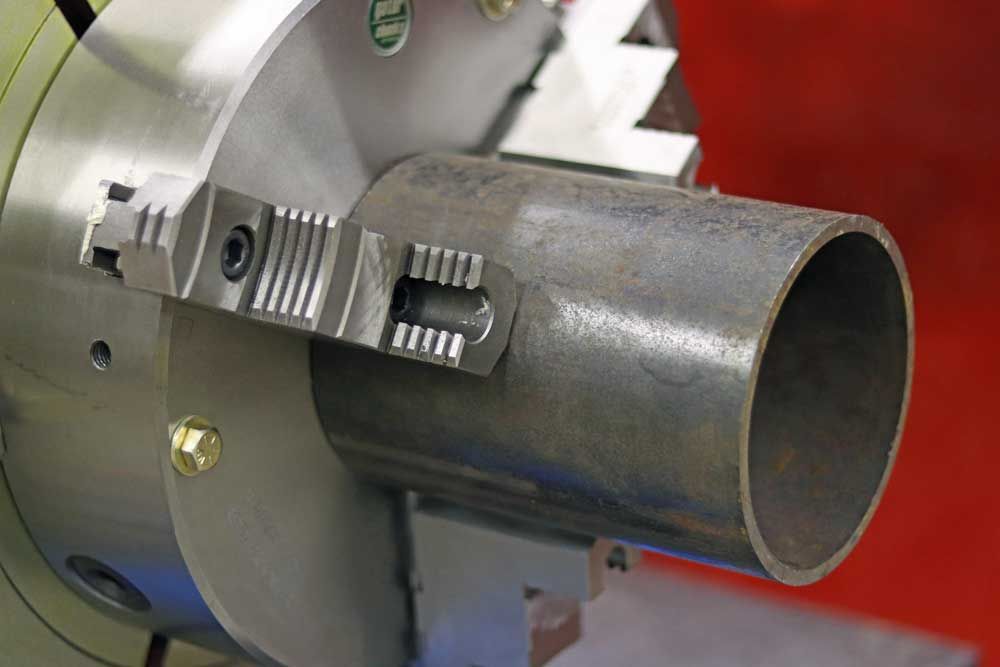

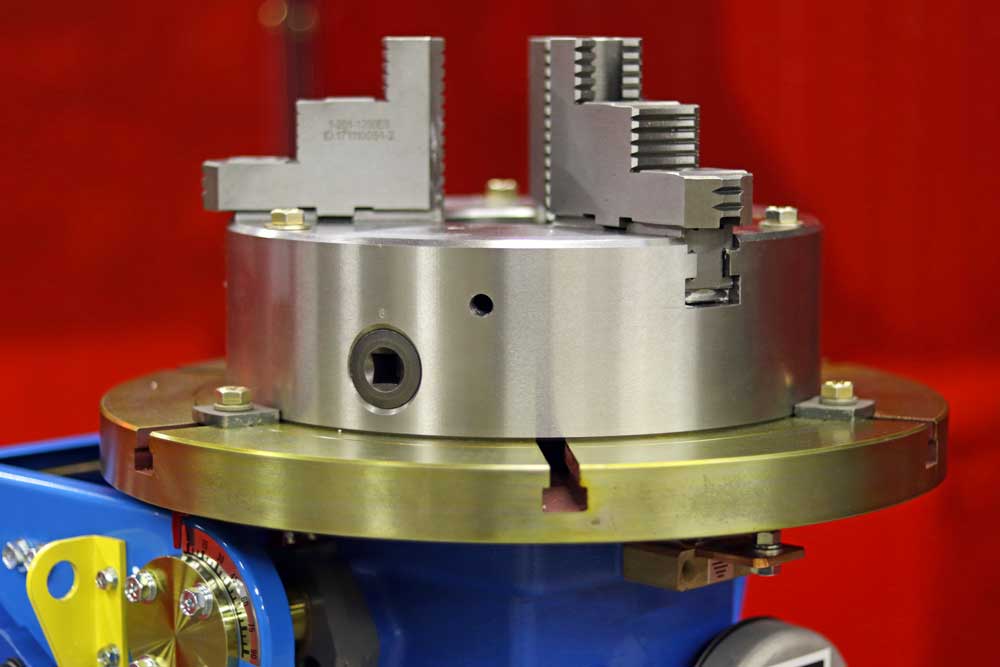

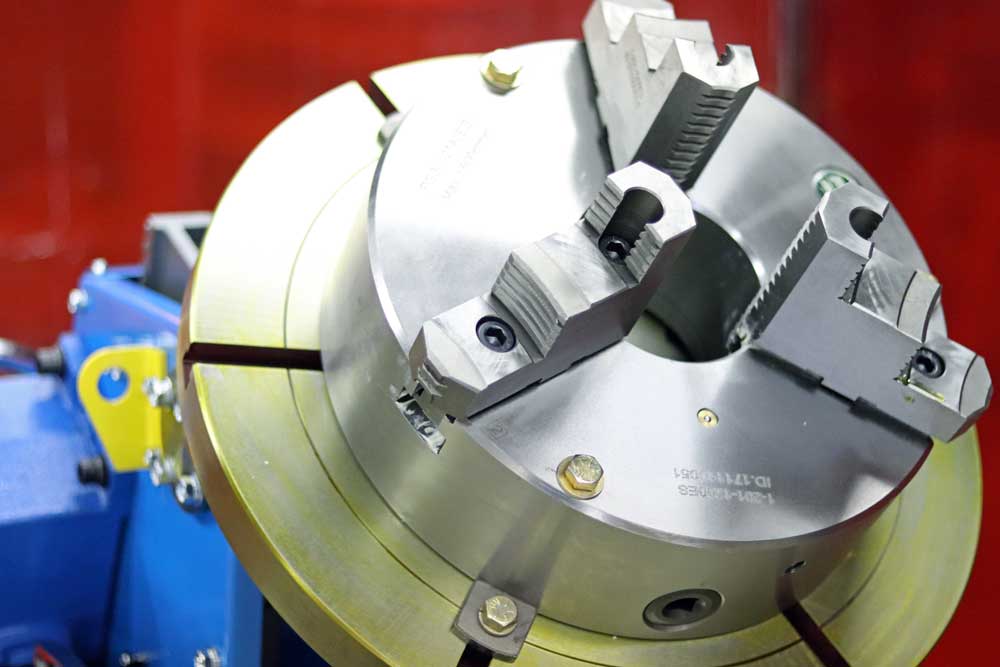

MT12 – Premium Quality Gator 3-jaw self-centering scroll welding chuck. Hardened reversible American standard jaws.
