PS-2F Benchtop Welding Positioner

MAC Model PS-2F-5-A Two Axis Benchtop Welding Positioner

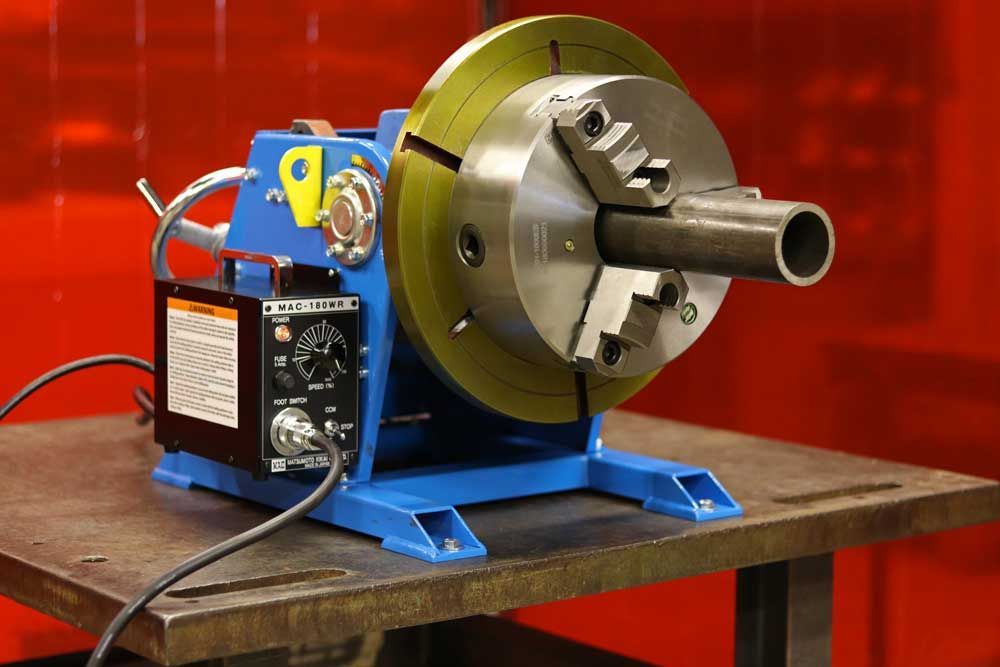

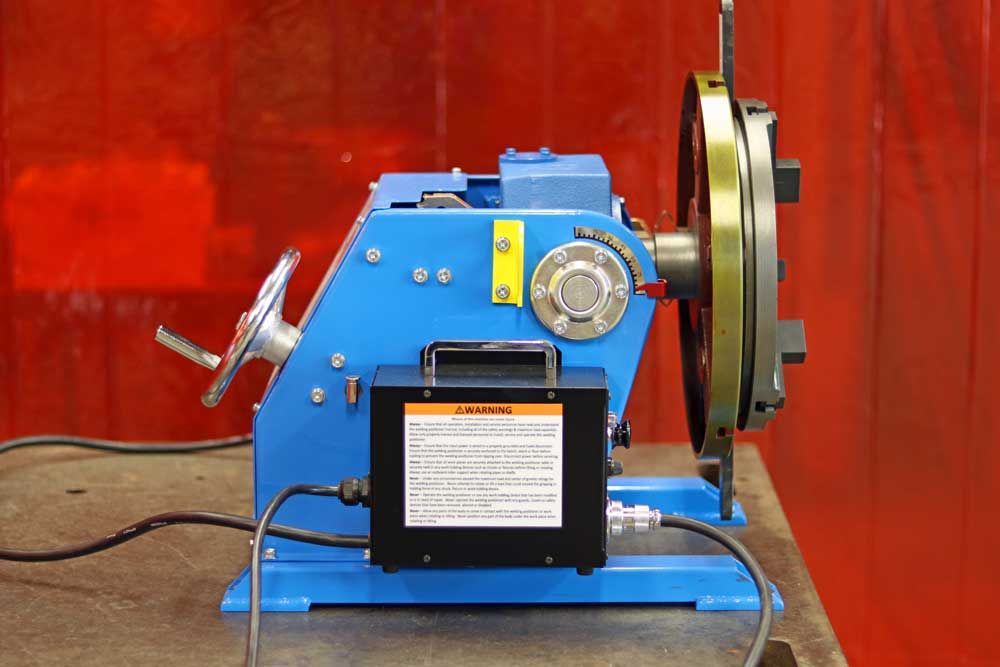

Above: MAC Model PS-2F-5-A welding positioner show with Gator MT10 chuck

MAC Model PS-2F welding positioner price includes:

500 Amp Capacity welding ground

On/off foot control with 20 feet of cable.

Machined Tee slotted table with centering grooves

Variable speed table rotation with dynamic braking


Qty. 1 – MAC Model PS-2F-5-A welding positioner with no chuck………………$3,899.00

Qty. 1 – MAC Model PS-2F-5-A welding positioner with Gator MT10 chuck…...$4,499.00 (Shown In Above Video)

Qty. 1 – MAC Model PS-2F-5-A welding positioner with MAC WP-300 chuck....$4,499.00


All prices fob Allegan, MI 49010

MAC Model PS-2F-5-A Two Axis Welding Positioner
  • Maximum load capacity table in the flat horizontal position 550 pounds.
  • Maximum load capacity table tilted 90 degrees vertical position 325 pounds @ 4 inch CG.
  • 500 AMP Welding Current Conduction.
  • Table tilting 0 to 90 degrees forward.
  • Table Diameter 14 inches with centering grooves 3 tee slots and 3 slots.
  • Variable rotation speed 0.3 to 5.0 rpm.
Optional Gator MT6 welding chuck mounted on the MAC PS-2F benchtop welding positioner.

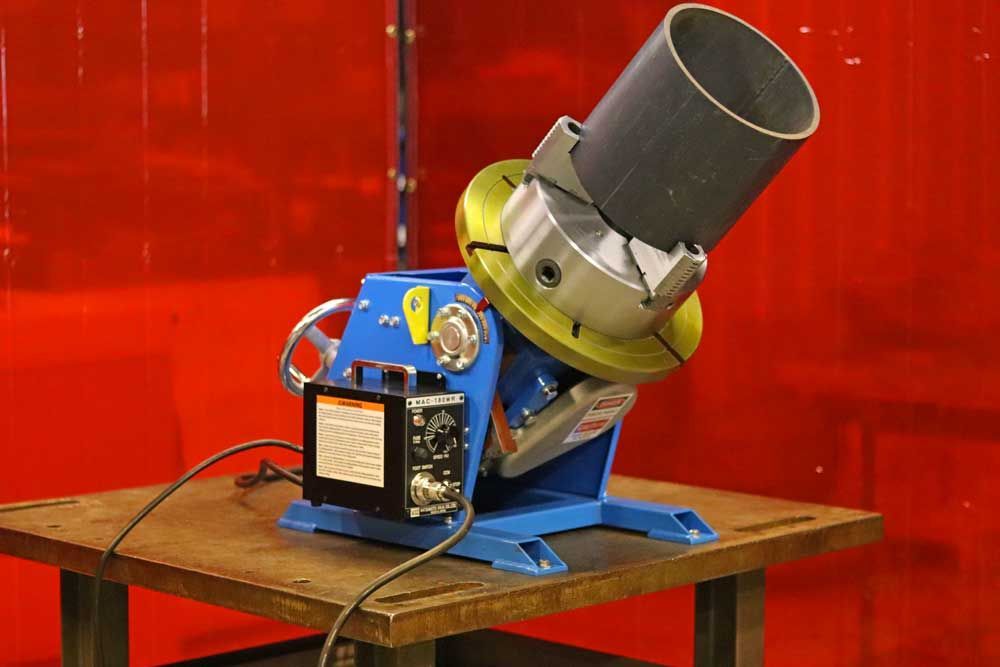

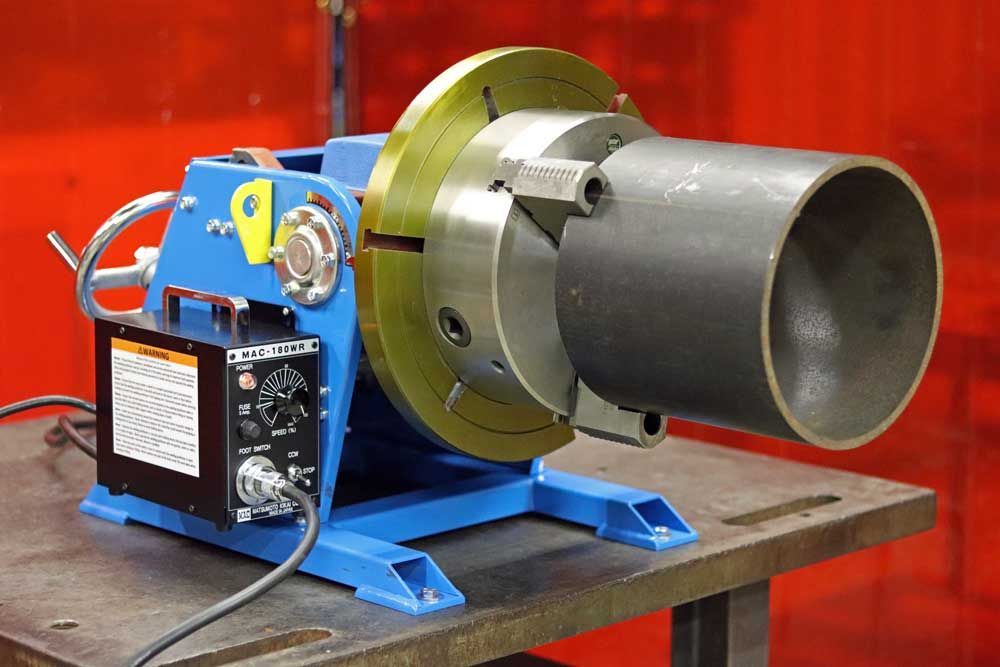

Above:  MAC PS-2F Benchtop Welding Positioner with optional Gator MT10 welding chuck.
SIZE MATTERS You need a 500 Amp welding ground in order to handle the most demanding MIG, TIG and Flux-Core welding, especially when welding Aluminum. The PS-2F benchtop welding positioner comes standard with a 500 Amp. capacity welding ground (highest capacity in the industry).

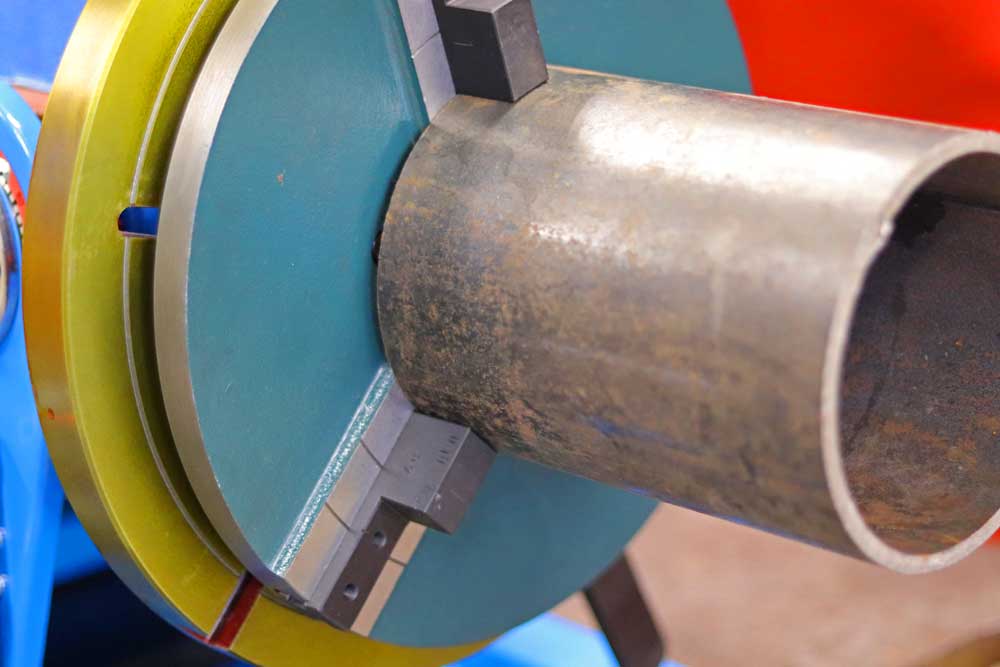

Above: MAC PS-2F benchtop welding positioner with optional MAC WP-300 welding chuck.
Above Video: MAC PS-2F benchtop welding positioner shown with optional MAC WP-300 welding chuck.
Above Video: MAC PS-2F Benchtop Welding Positioner with optional Gator MT10 welding chuck.
MAC Model PS-2F-5-A Two Axis Welding Positioner Photo Gallery.  Click on an image to enlarge.

Are you tired of dealing with excessive backlash and table drifting? The MAC PS-2F heavy duty worm gear rotation drive eliminates both problems.

Specifications Model PS-2F Bench Top Welding Positioner


Capacity

Maximum Load Capacity Table Flat Horizontal position - 550 pounds

Maximum Load Capacity using outboard roller support - 325 pounds


Maximum Load Capacity Table Tilted 90 degrees Vertical Position:

Rating @ 4 inch CG load height from table – 325 pounds

Rating @ 8 inch CG load height from table – 226 pounds

Rating @ 12 inch CG load height from table – 173 pounds

Rating @ 16 inch CG load height from table – 140 pounds

Rating @ 20 inch CG load height from table – 118 pounds


Maximum Rotation Load Torque – 650 inch-pound

Rating @ 2 inch CG Load Eccentricity from axis – 325 pounds

Rating @ 5 inch CG Load Eccentricity from axis – 130 pounds

Rating @ 8 inch CG Load Eccentricity from axis – 81 pounds


CG = Center of Gravity


Rotation


Motor: 1/4 HP DC Variable speed.

Speed Range – Variable from 0.3 to 5 RPM

Speed Accuracy – 2 % of base speed.

Rotation Drive – Fully enclosed & lubricated self-locking worm gear.

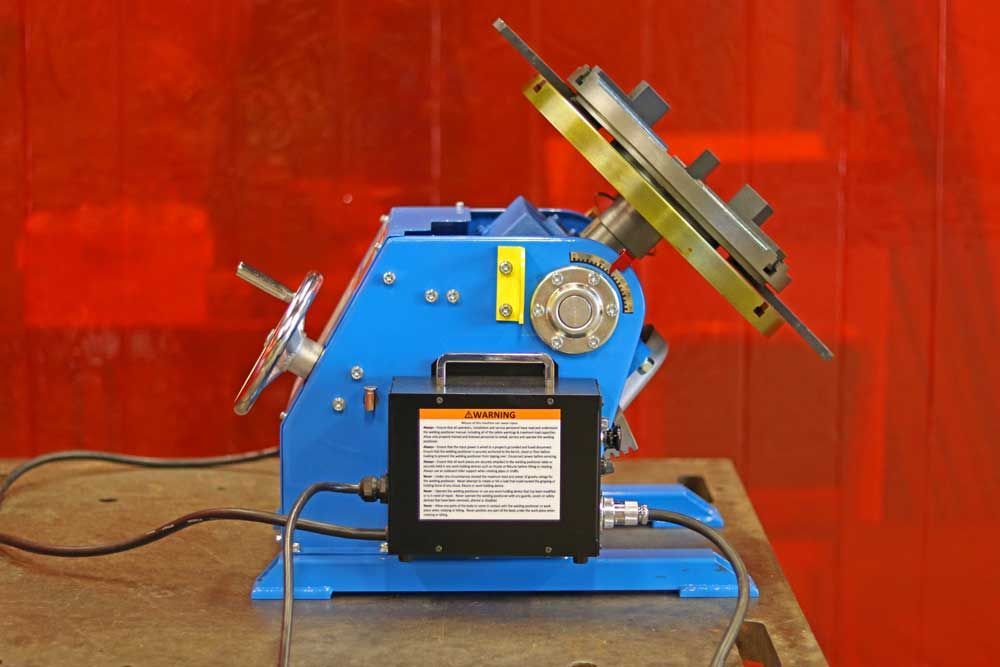

Tilt


Tilt Range – 90 degrees forward

Tilt Torque – Manual

Tilt Actuation – 7 inch Dia. hand wheel with self-locking worm gear.

Table
Round – 14 inch Diameter with centering grooves.
Number of Tee slots – 3 @ 120 degrees
Number of Slots – 3 @ 120 degrees
Tee Nut bolt size – 3/8 inch
Inherent overhang – 5.12 inches

Welding Ground Conduction – 500 Amps thru spring loaded mechanical ground.

Primary Input power – AC 115 volts 60 Hz Single Phase 15 Amp.

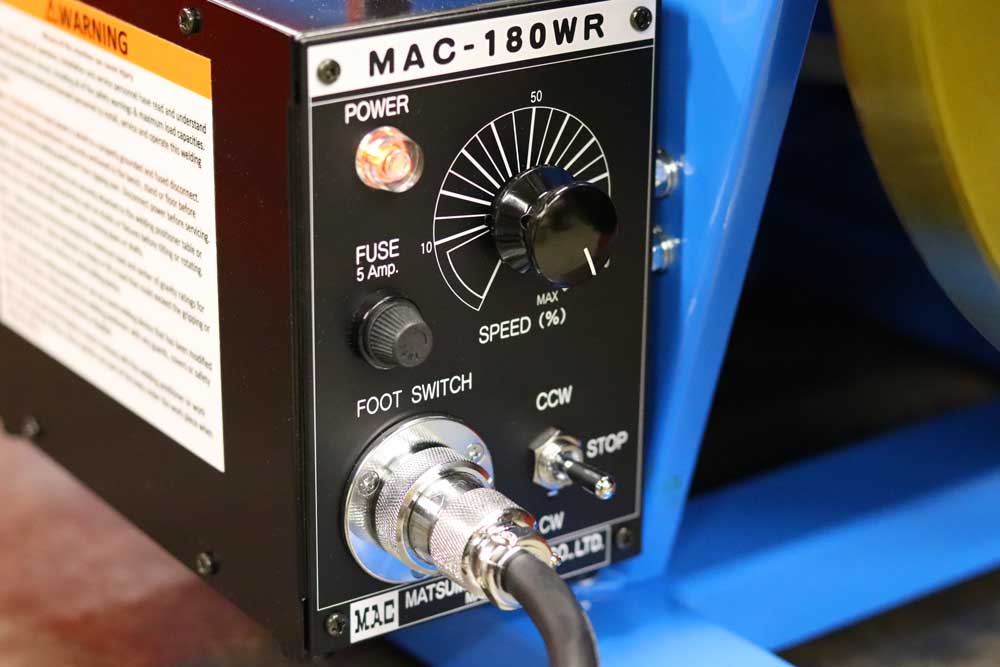

Controls

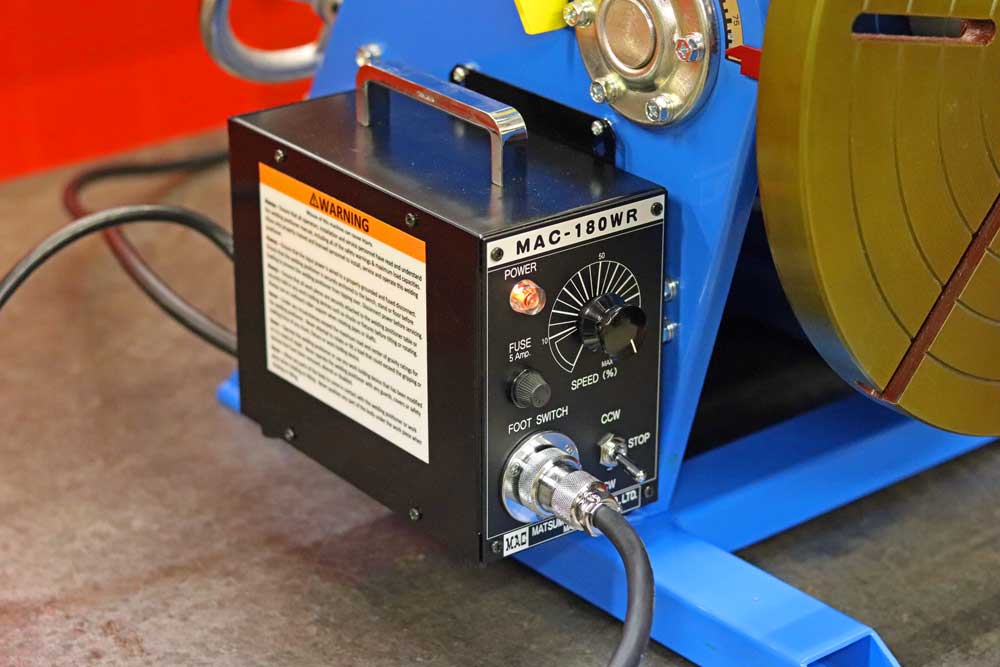

External Control box – With Power on indicator light & Foot control receptacle.
Speed Control – One turn potentiometer
Directional Control – Forward-Stop-Reverse switch.
Overload Protection – 5 Amp motor fuse.
Dynamic braking – Brings table rotation to quick stop.
Foot Switch – Remote start/stop with 22 feet of cable.

Frame – 4 anchor bolt holes.

Approximate shipping Weight – 250 pounds, crate size 32” x 32” x 32”

Below:Model PS-2F-5 Welding Positioner Options - Welding Chucks
MT10 Welding Chuck

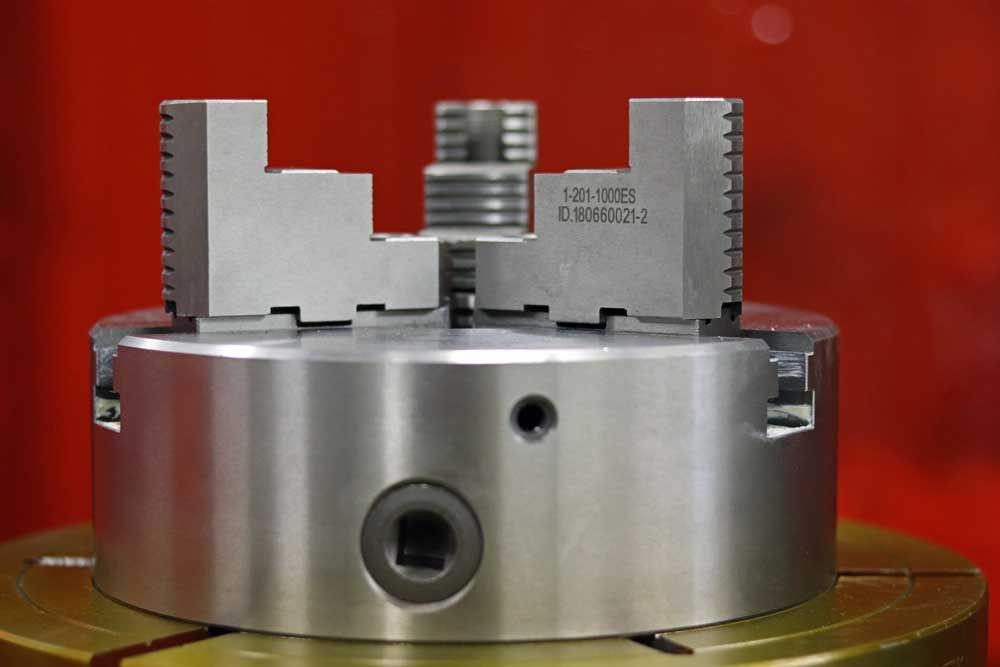

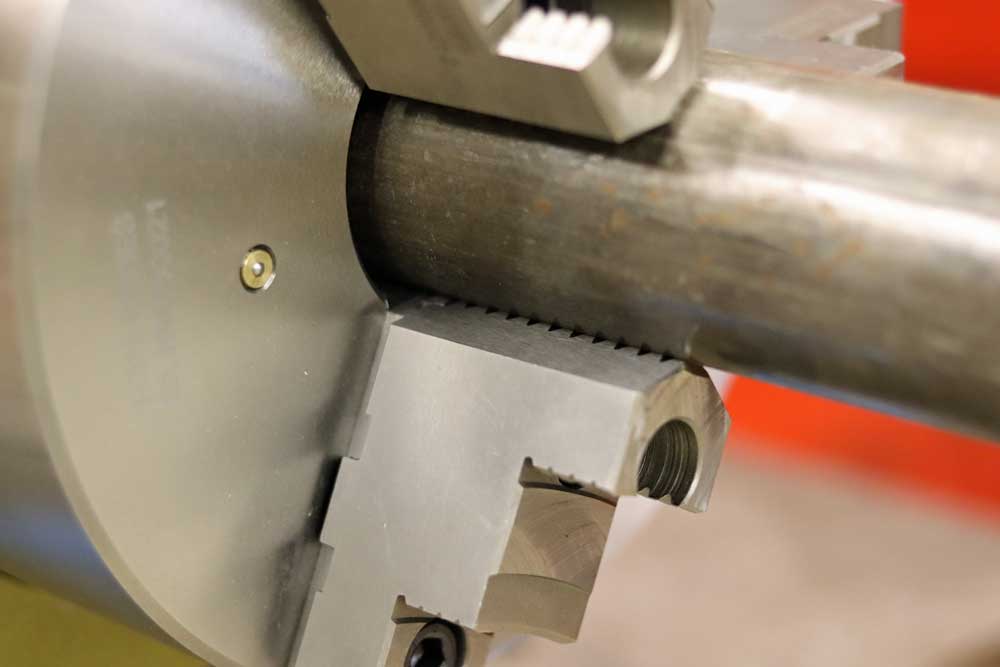

MT10 – Premium quality Gator 3-jaw self-centering scroll welding chuck. Hardened reversible American standard jaws.  The MT10 chuck has a clamping range of .20 to 10.125 inches.
MAC WP-300 welding chuck.
MAC WP-300 welding chuck.  The WP-300 has a clamping range of 3.15 to 11.02 inches.  The WP-300 is fast acting to open and close quickly.  The handles are permanently attached. No
T-wrench is needed in order to adjust the chuck.
