Model PB1005 Pipe Bully Welding Positioner with MT16 chuck and RS-15 outboard roller support.
*Maximum Load Capacity using outboard roller support 1000 pounds
Maximum Rotation Torque 5000 in-lb
Maximum Pipe Diameter 16 inches
*Model PB1005 must be used with an outboard roller support. Chuck is fixed at
90 degrees to floor and does not tilt.
Motor: 1/2 HP DC Variable speed.
Speed Range – Variable from 0.08 to 1.9 RPM
Speed Accuracy – 2 % of base speed.
Rotation Drive – Fully enclosed & lubricated self-locking worm gear.

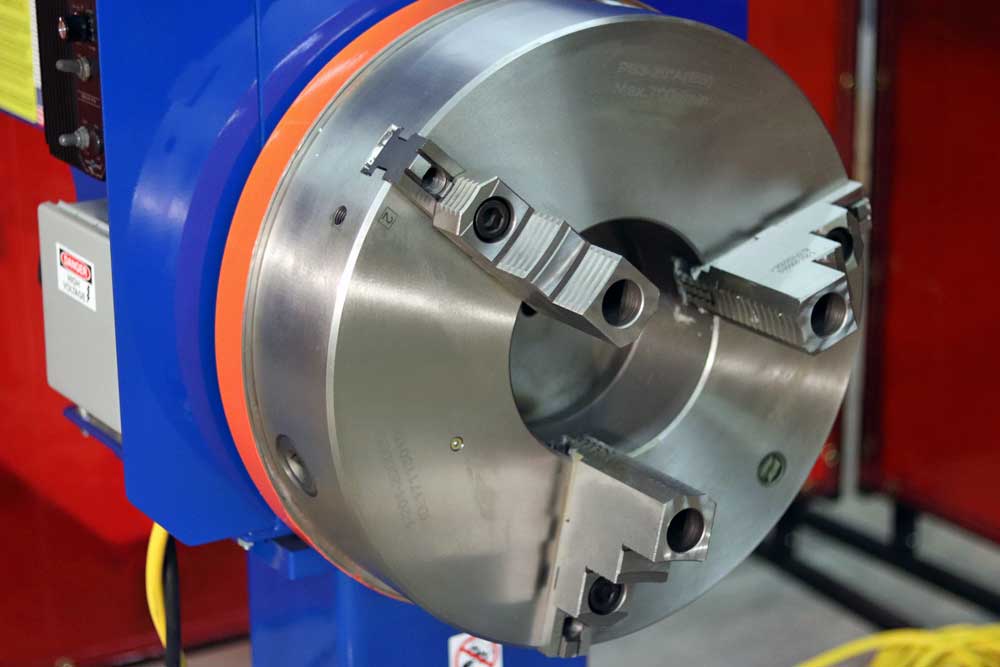

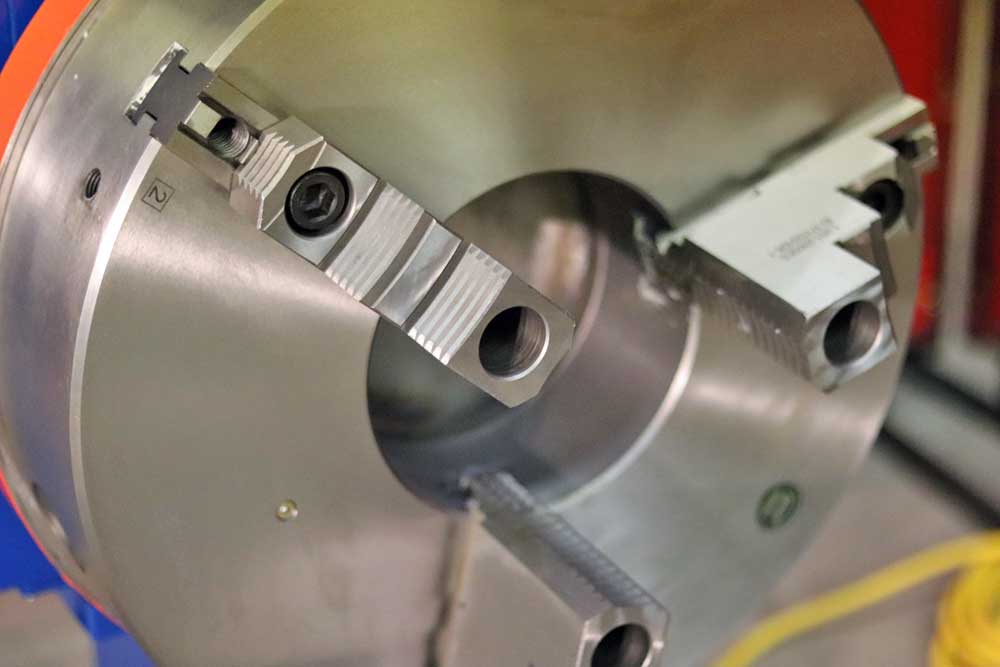

Chuck – MT16 Gator 3-jaw self-centering
Maximum Outside Diameter gripping 16 inch
Minimum Outside Diameter gripping 0.625 inch
Fixed at 90 degrees to floor
Centerline of chuck to floor 32 inches.

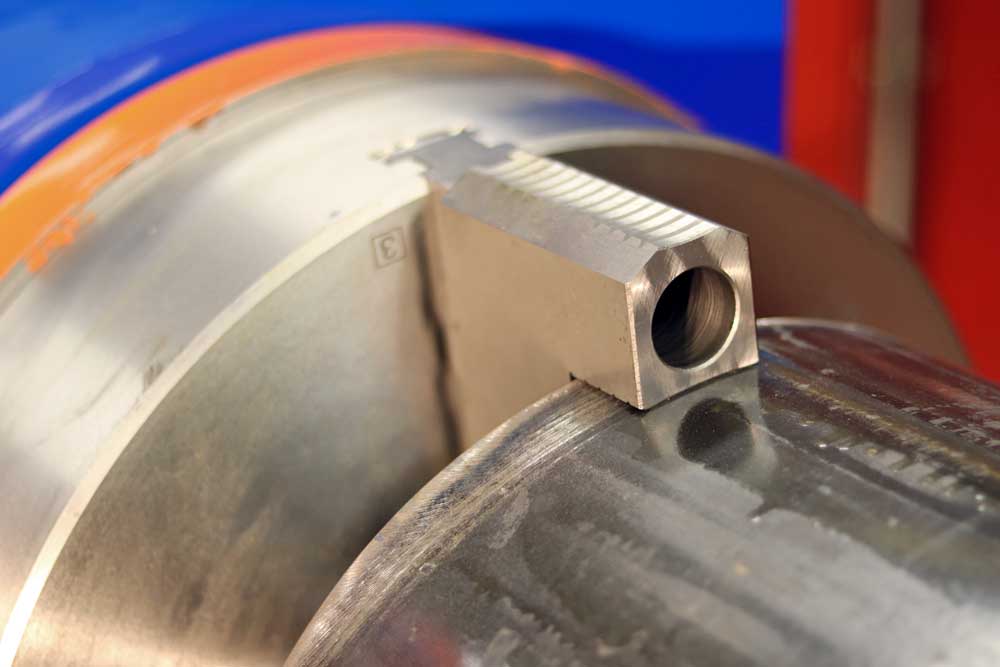

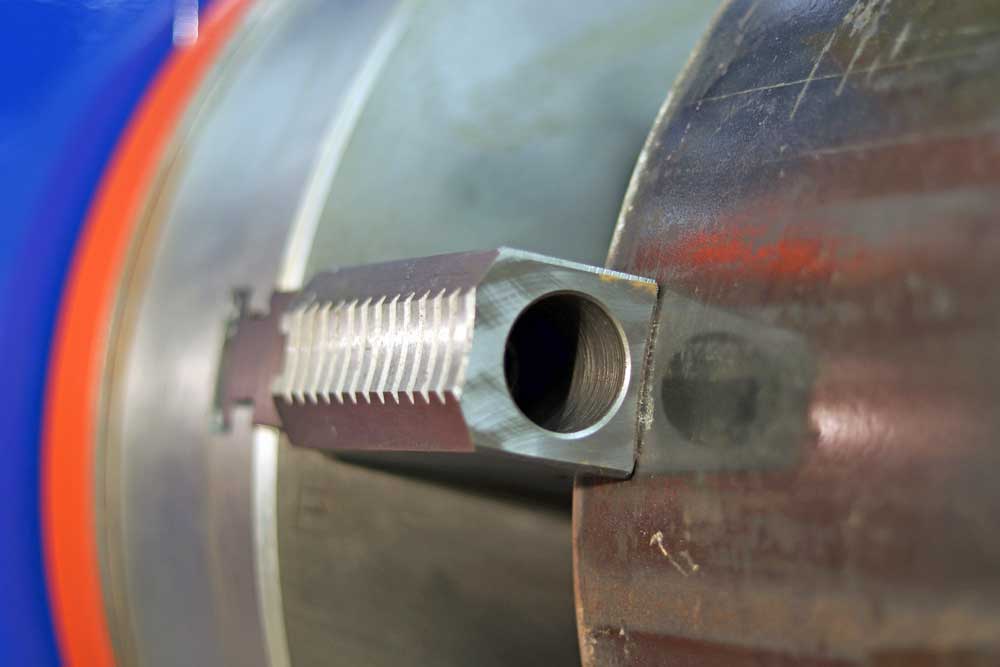

3-jaw self-centering hardened reversible jaws.
RS-15 outboard roller support
Maximum Load Capacity 1500 lbs.
Maximum Pipe Diameter 20 inches
Minimum Pipe Diameter 2 inches
Vertical Height adjustment 9.0 inches
Urethane rolls with sealed ball bearings
Roll to roll adjustment settings - 3
Powder coated frame with 4 anchor bolt holes.
Welding Ground Conduction –
500 Amps thru spring loaded mechanical ground.
Primary Input power –
AC 115 volts 60 Hz Single Phase 15 Amp.

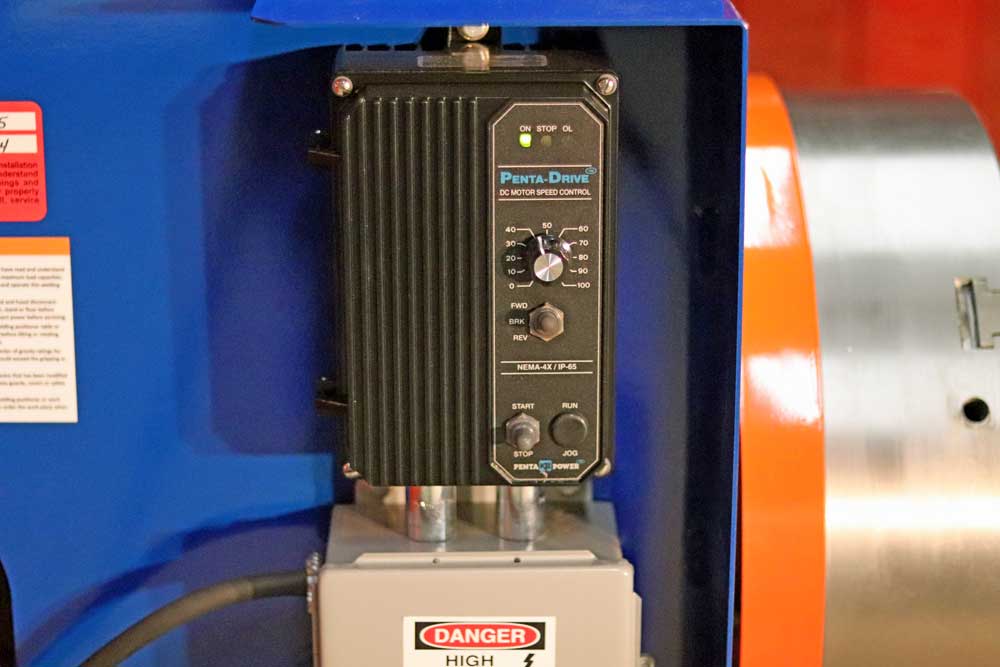

External Nema 4X Control box – With Power On, Stop and Overload indicator lights.
Speed Control – One turn potentiometer
Directional Control – Forward/Reverse switch with dynamic braking resistor.
Start Stop Switch – For safety must be used to start if power is lost.
Overload Protection – 8 Amp motor fuse.
Foot Switch – Heavy Duty Remote start/stop with 25 feet of cable.
Cables – All motor, foot control and input power cable Heavy Duty 600 volt.
Heavy tube construction powder coated, Qty. 4 anchor bolt holes.
Approximate shipping Weight –
980 pounds, crate size 54” x 44” x 54”
