RD-40-INW Tank Turning Rolls

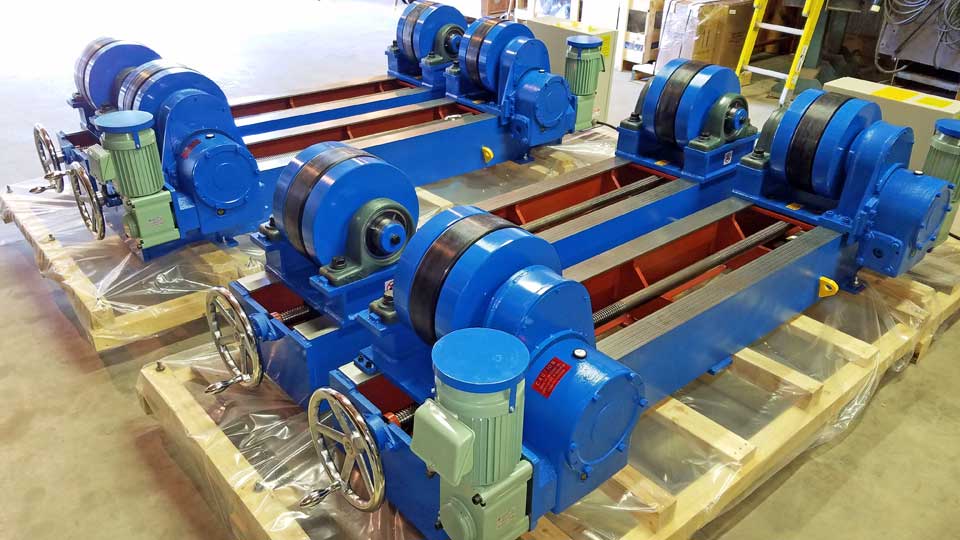

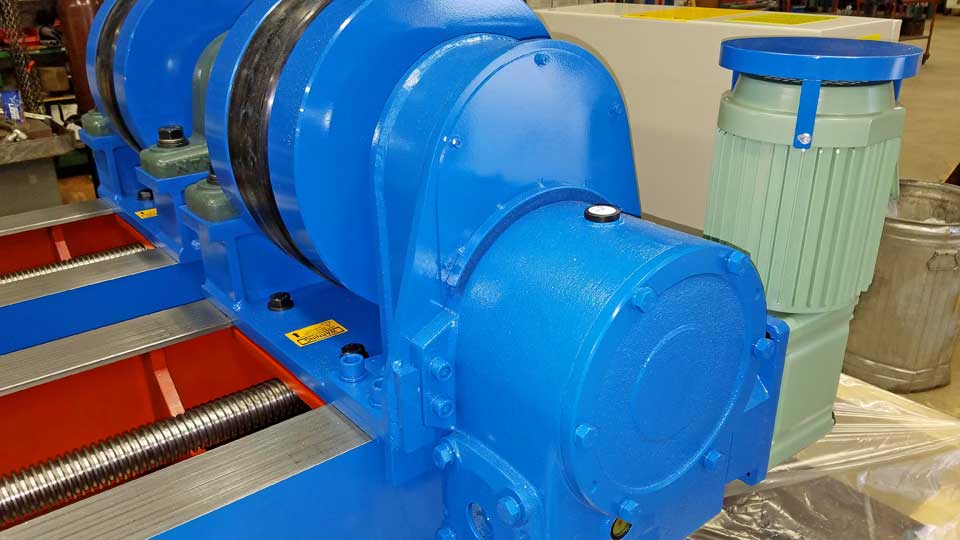

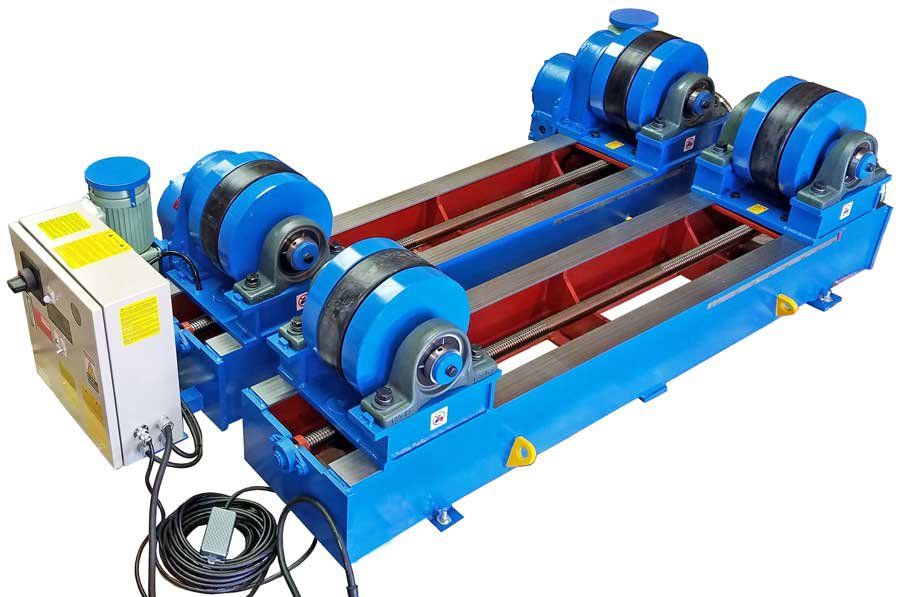

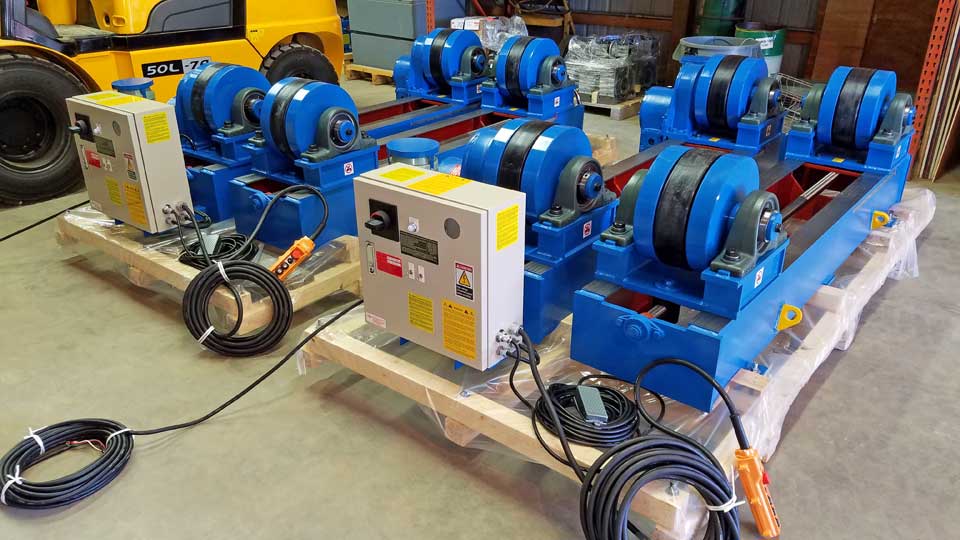

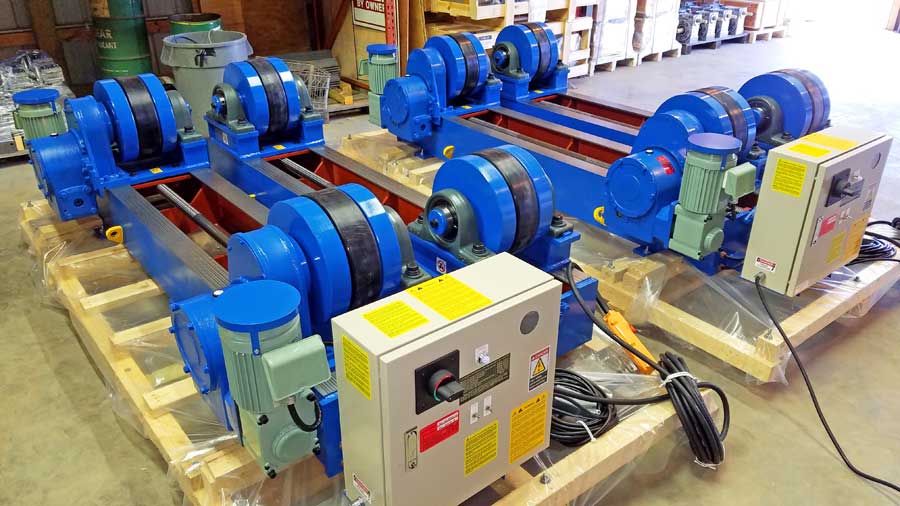

RD-40-INW Tank Turning Roll
With the RD-40-INW you won't have setup or down time due to lost or bent drive shafts used by most other turning rolls. Don’t get burned by other obsolete drive shaft, chain or friction drive turning rolls. MAC Twin Drive Roll System offers the most reliable, steady, and maintenance free drive system available in turning rolls.
Specifications MAC Model RD-40-INW-A
• Input Power: AC 208 Volts Three Phase 60 Hz (240/480 volt also available).
• Control voltage at pendent & foot control: 24 volt DC.
• Maximum load capacity per set of one drive roll and one idler roll: 88,000 lbs.
• Maximum work-piece diameter: 157 inches
• Work-piece diameter range: 15.8 in. to 157 in.
• Speed Range: Variable 3.9 to 39 in./min.
• Roll Type: Machined steel side plates with rubber center.
• Approximate shipping weight per set: 4,180 lbs.
Standard Features MAC Model RD-40-INW-A

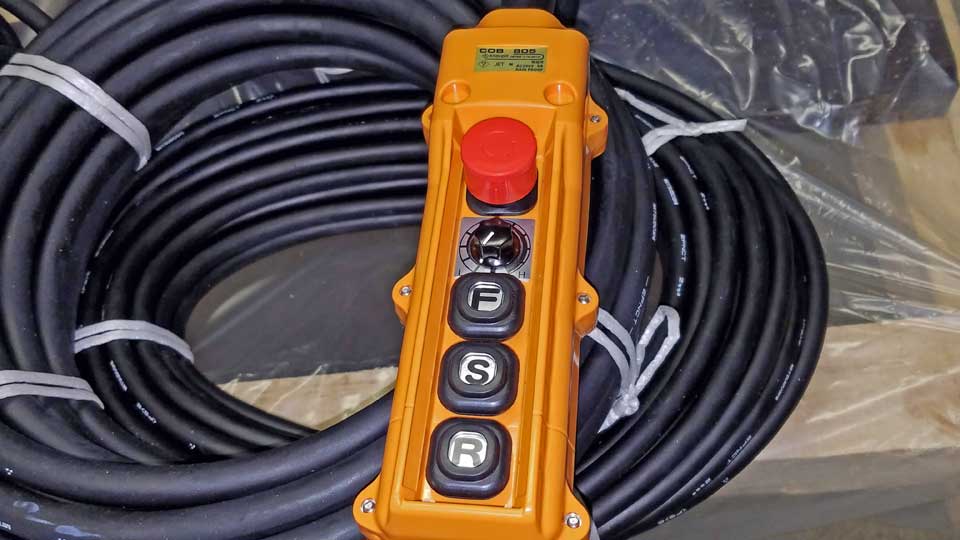

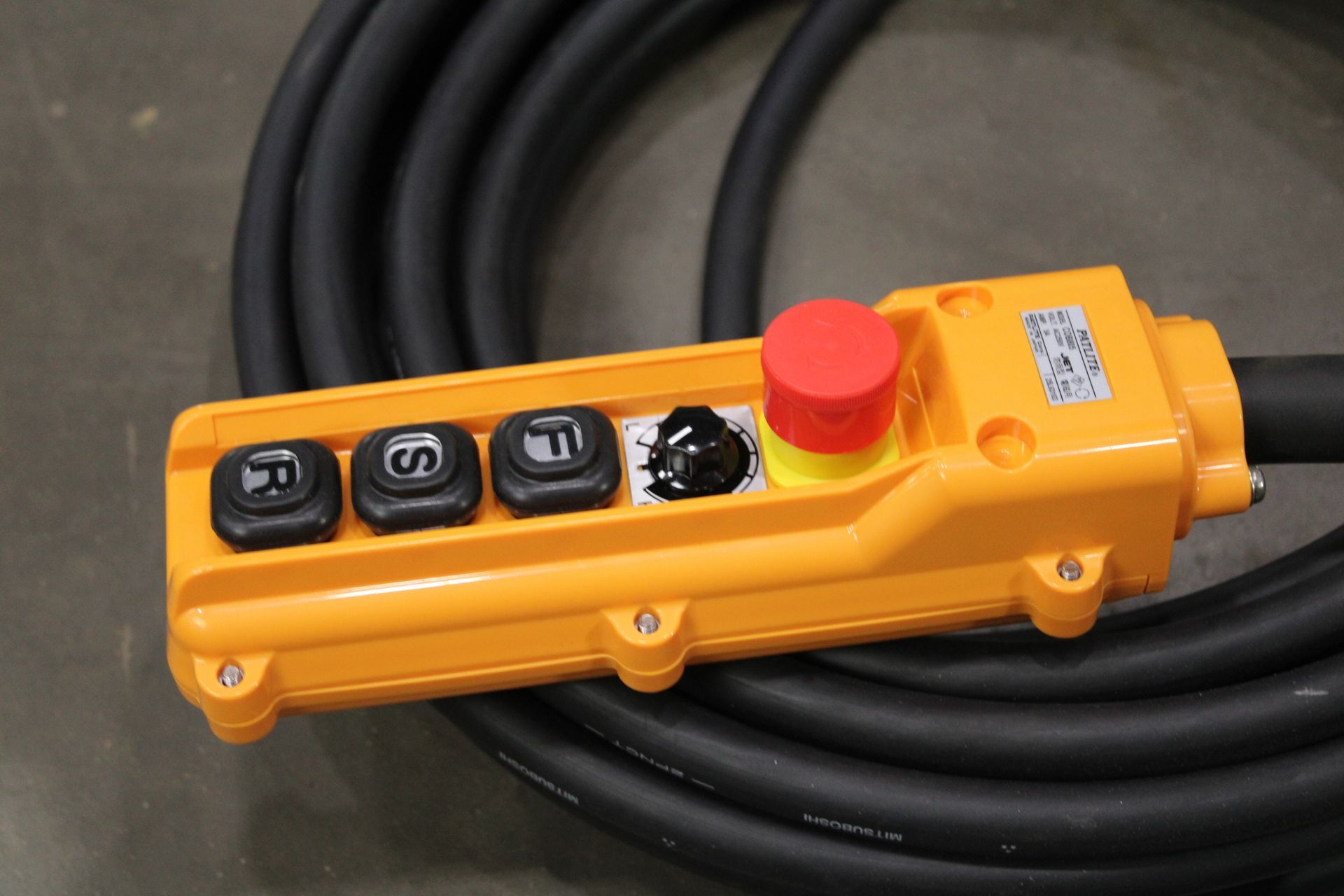

• Push button pendent control with maintained forward, stop, reverse, E-stop and roll speed adjustment.

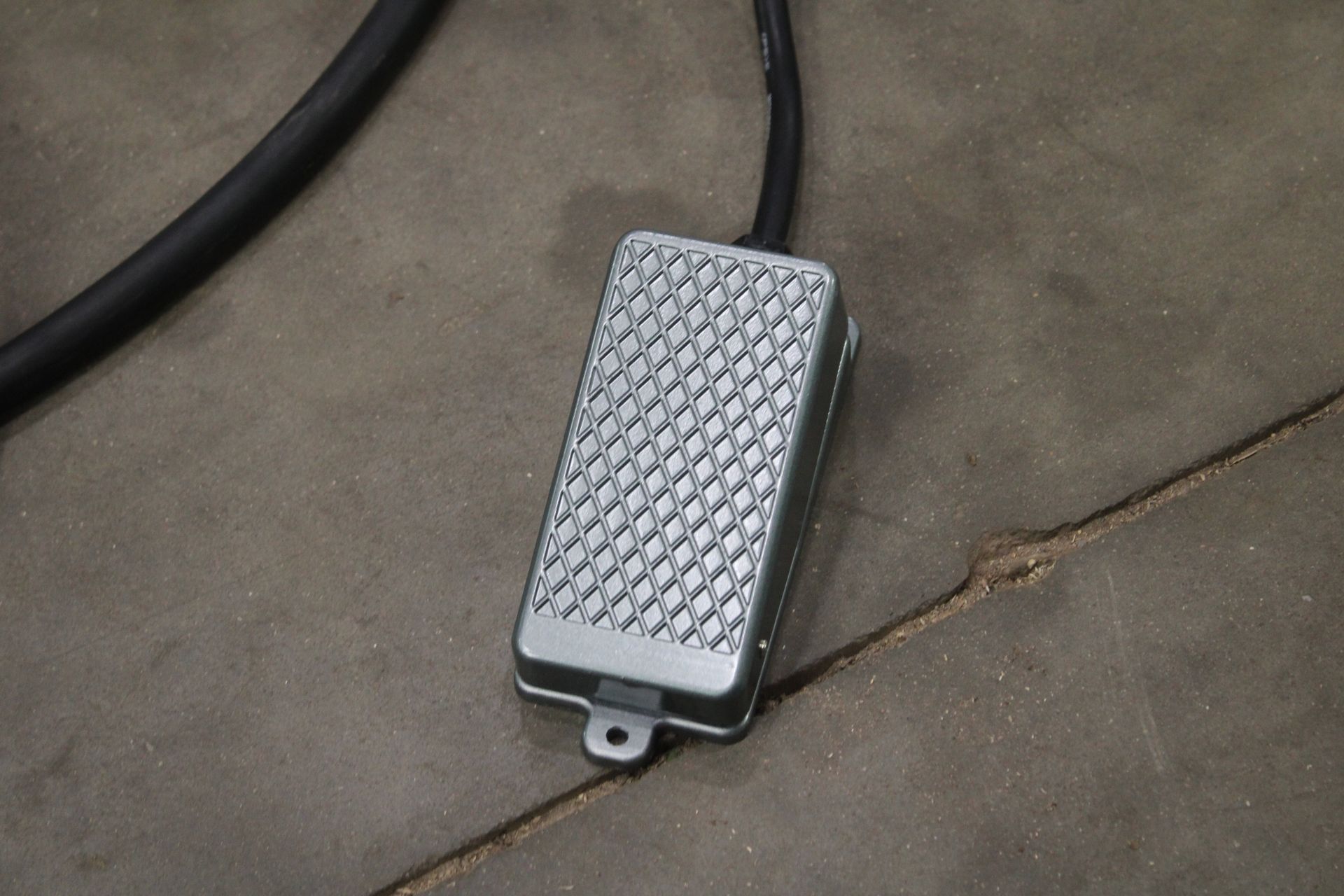

• On/off foot control with quick plug in for easy removal and storage.
• Control voltage stepped down to 24 volt DC for operator safety.

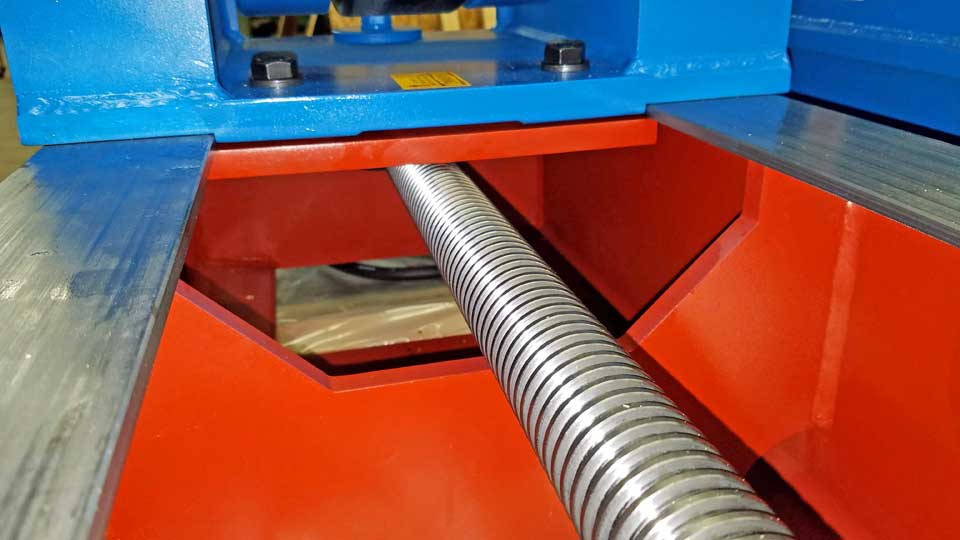

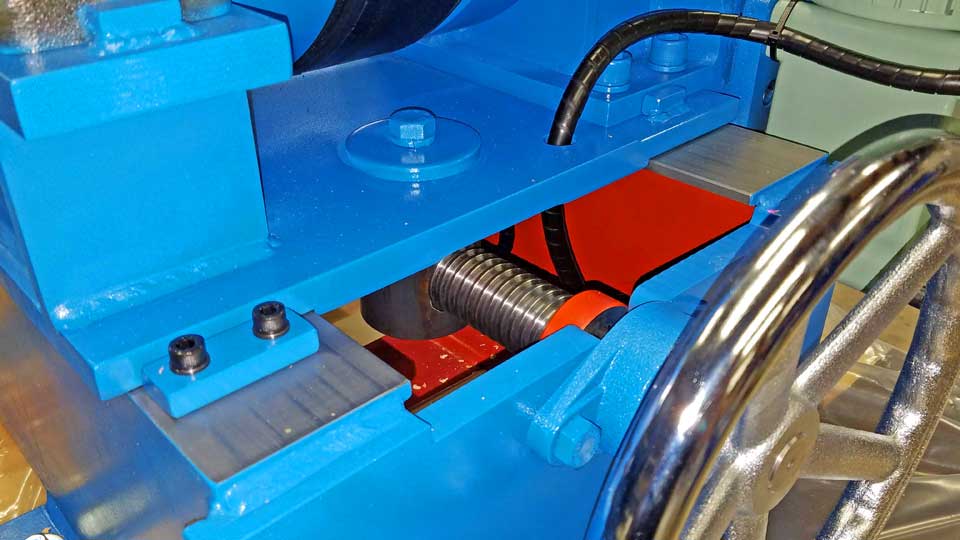

• Variable roll to roll center distance by hand wheel & acme screw to maintain constant centerline of the work-piece.

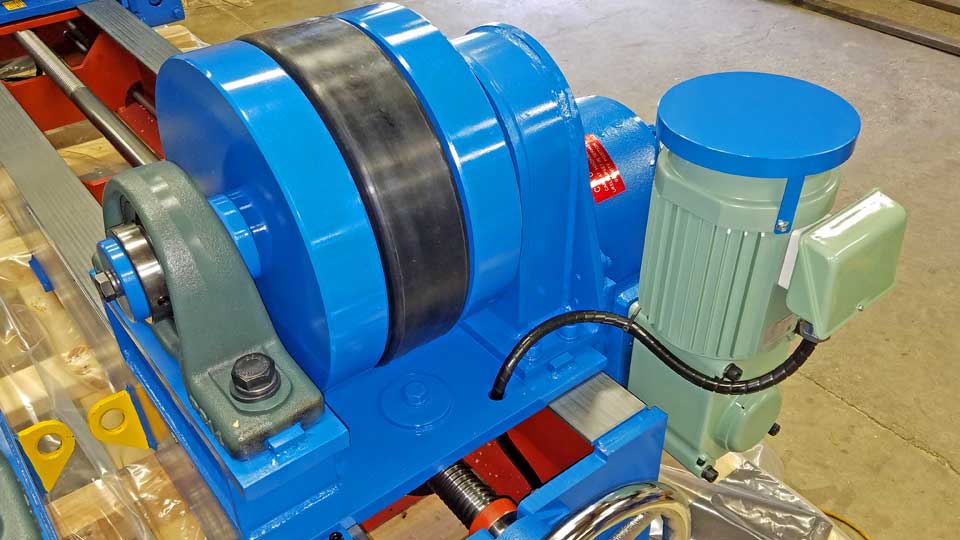

• Each drive roll independently powered. Eliminating all of the many problems and constraints associated with drive shaft systems.
• All gear drive system is lubricated and sealed from contaminants such as weld spatter and slag. There are NO belts or chains that will stretch, wear or need adjustment.

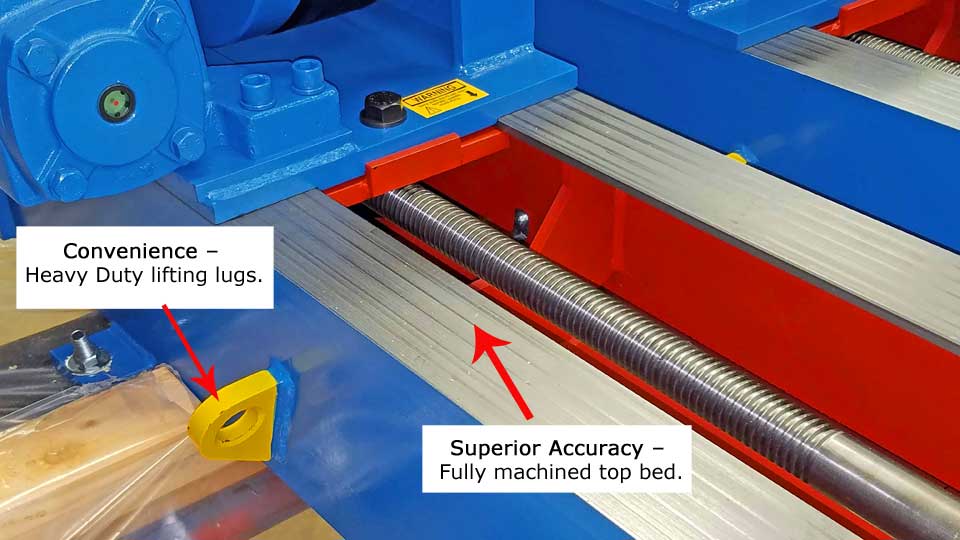

• Heavy box frame construction with bed fully machined flat for accuracy.
• Heavy duty lifting lugs welded to the frame on both drive and idler rolls.

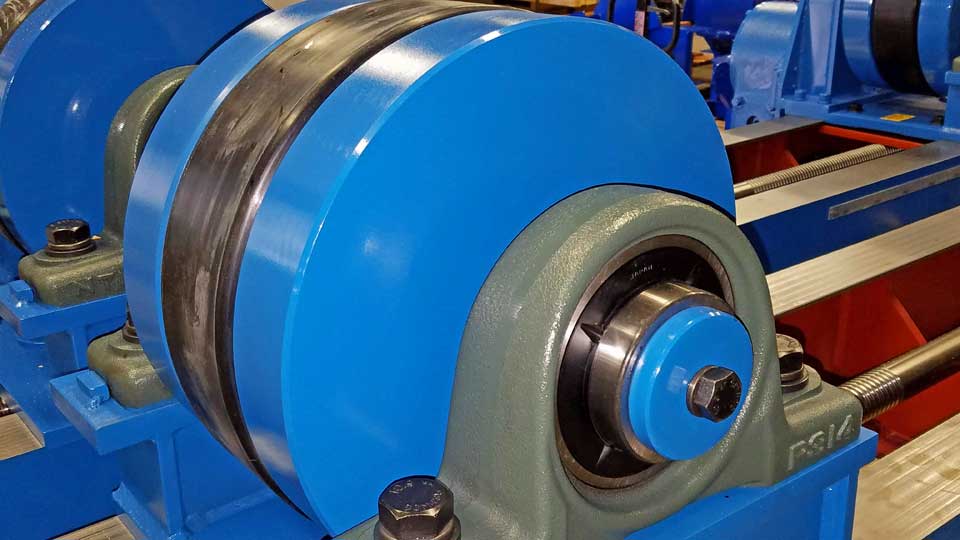

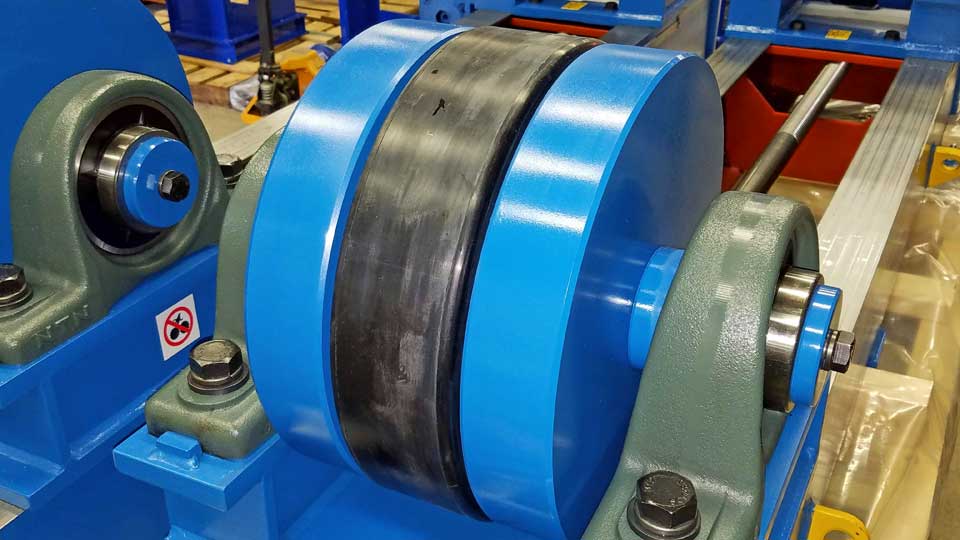

• Machined steel rolls with rubber center for traction provide greater accuracy.

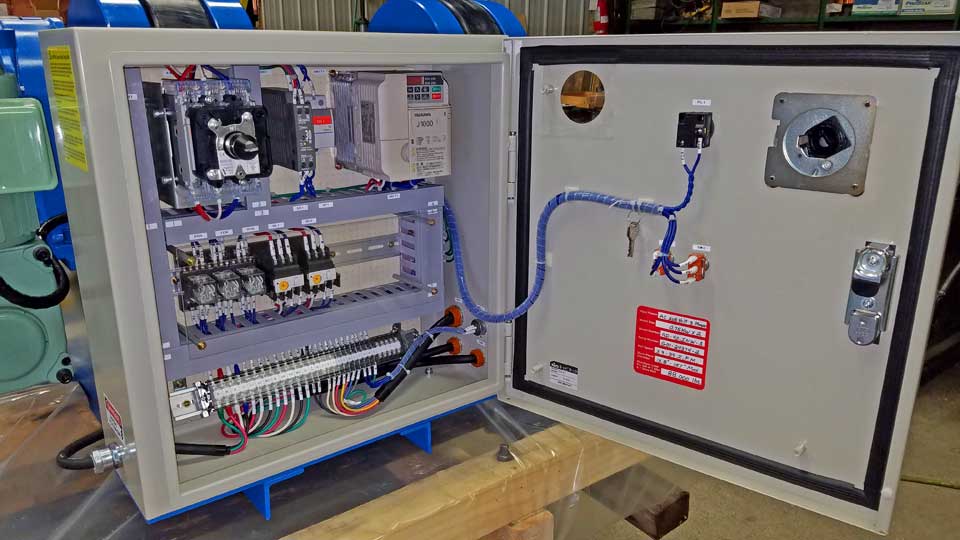

• AC inverter drive with LED frequency display for speed adjustment.

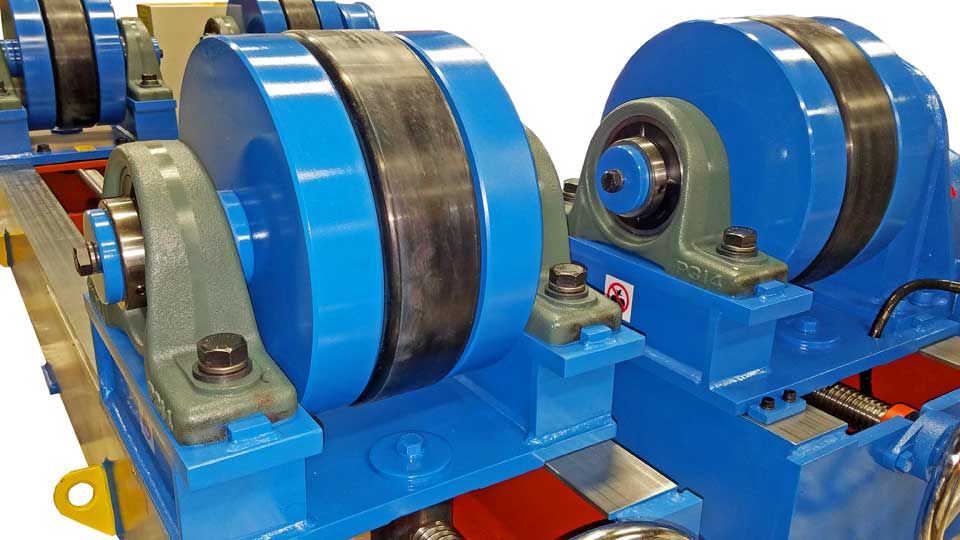

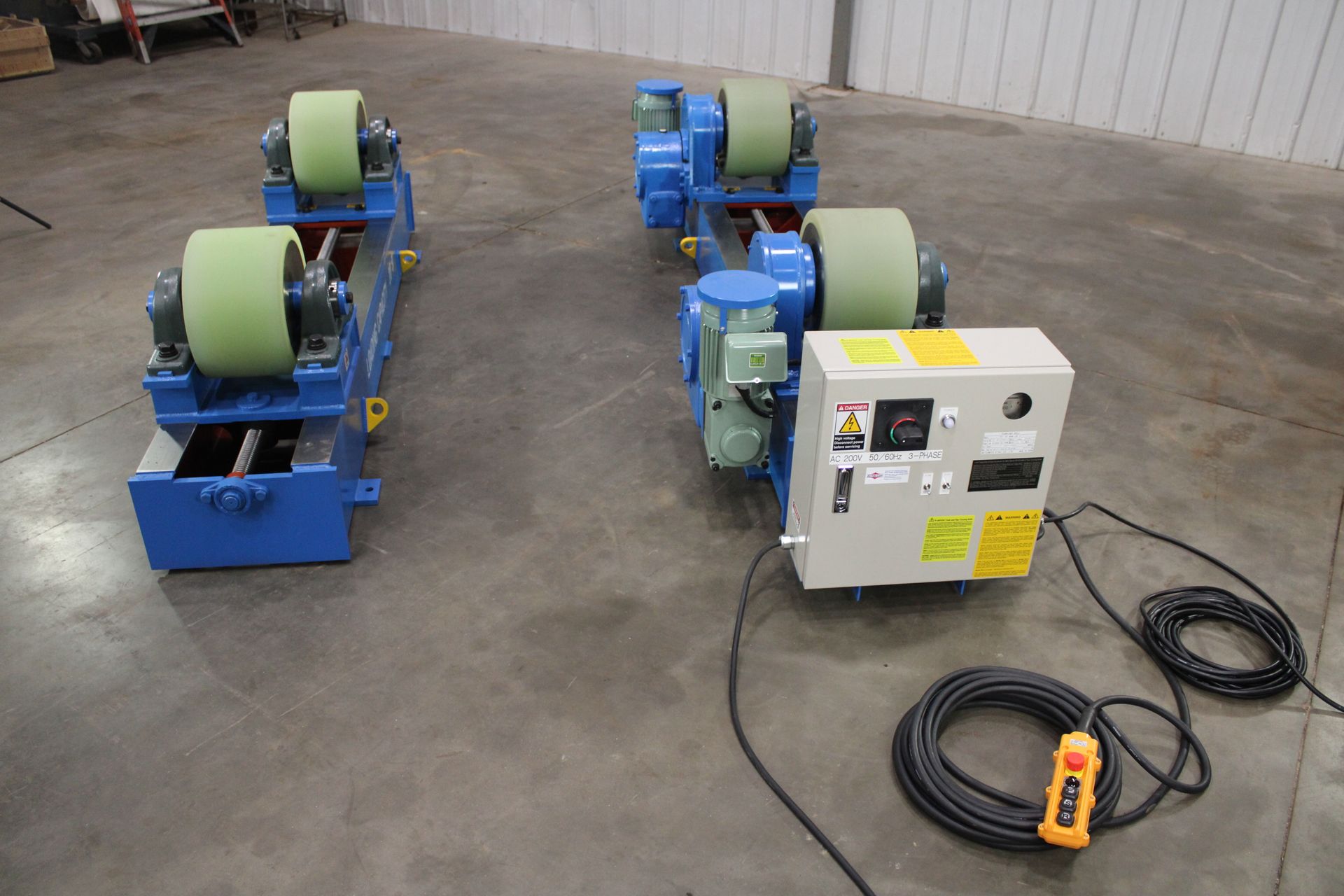

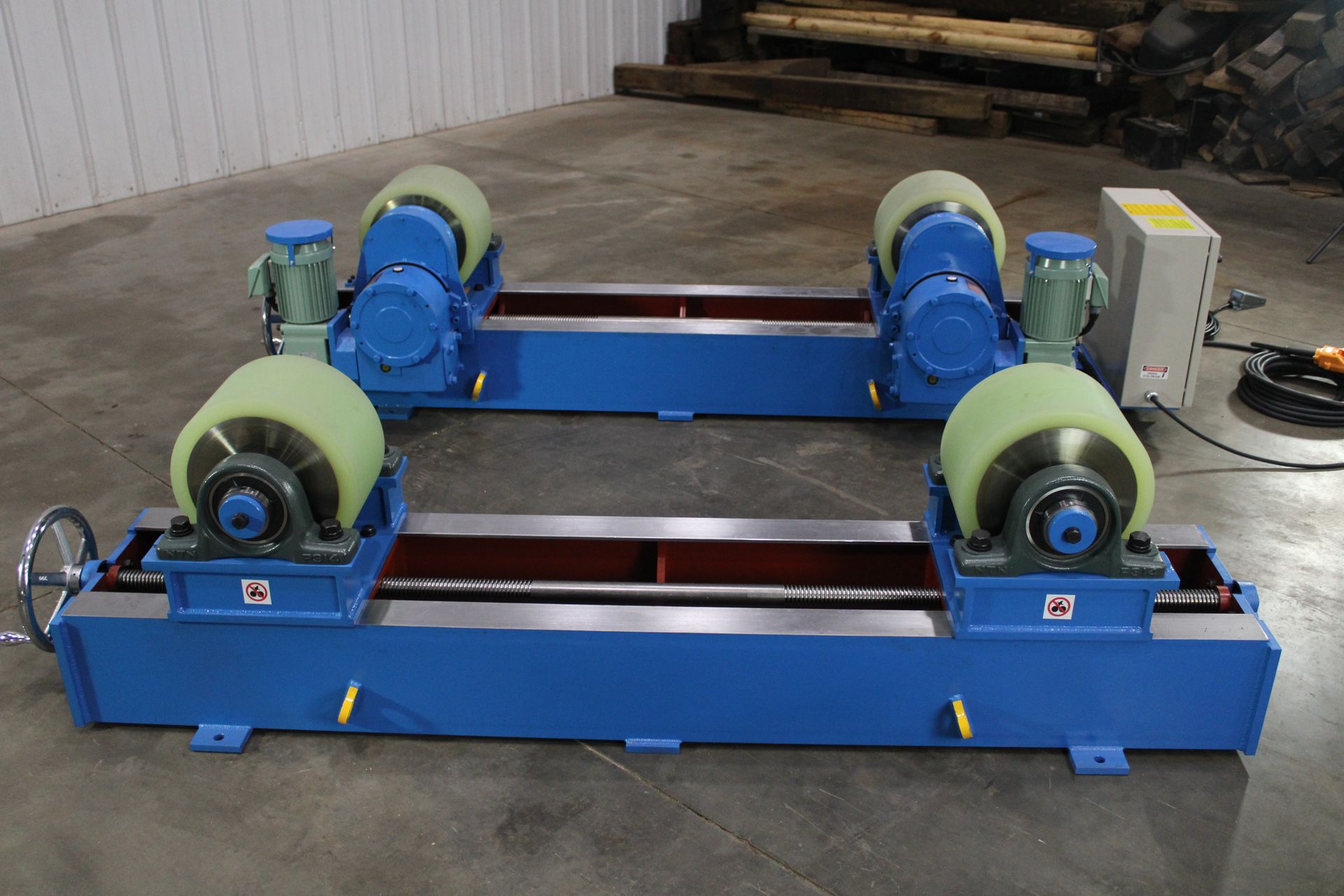

RD-40-INW Tank Turning Roll Additional Photos
RD-40-INW-A Turning Roll Financing Made Easy
Quick Response Time
Low Monthly Payments
Conserve Working Capital
Possible Tax Benefits & Accelerated Depreciation
Bundled Financing for Multiple Machines
Low Monthly Payments
Conserve Working Capital
Possible Tax Benefits & Accelerated Depreciation
Bundled Financing for Multiple Machines

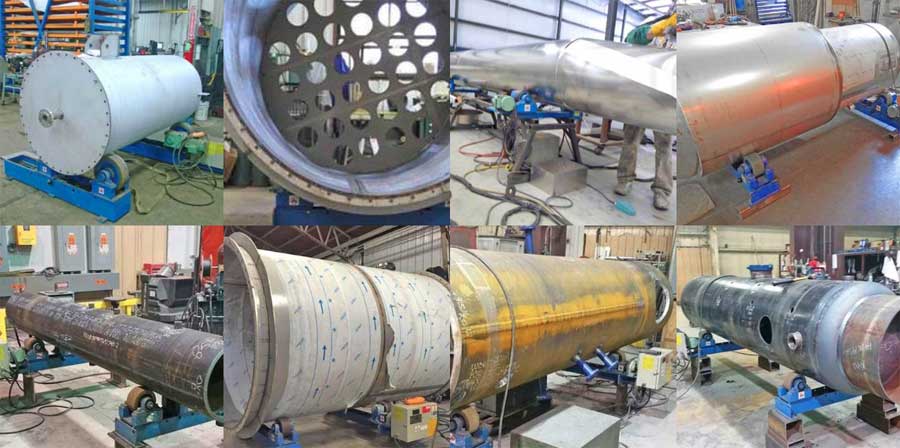

All-Fab Corp. has sold thousands of tank turning rolls to satisfied customers over the past 25 years. We are tank turning roll experts. Click on the image below to see just a few of the Tank Turning Rolls we have sold being used in production.
