MAC Model POK-20X-A Welding Positioner

Price: $44,000.00

Boasting a 4,400lb capacity, the POK-20 is built with the biggest welding projects in mind. The 43" rotating table can tilt up to 135° to keep you welding no matter what angle you need.


  • Maximum load capacity table in the flat horizontal position 4,400 pounds.
  • Maximum load capacity table tilted 90 degrees vertical position 4,400 pounds @ 8 inch CG.
  • 800 AMP Welding Current Conduction.
  • Power Table tilting 0 to 135 degrees forward.
  • Table Diameter 43 inches with centering grooves and 6 tee slots.
  • Variable rotation speed 0.034 to 0.34 rpm

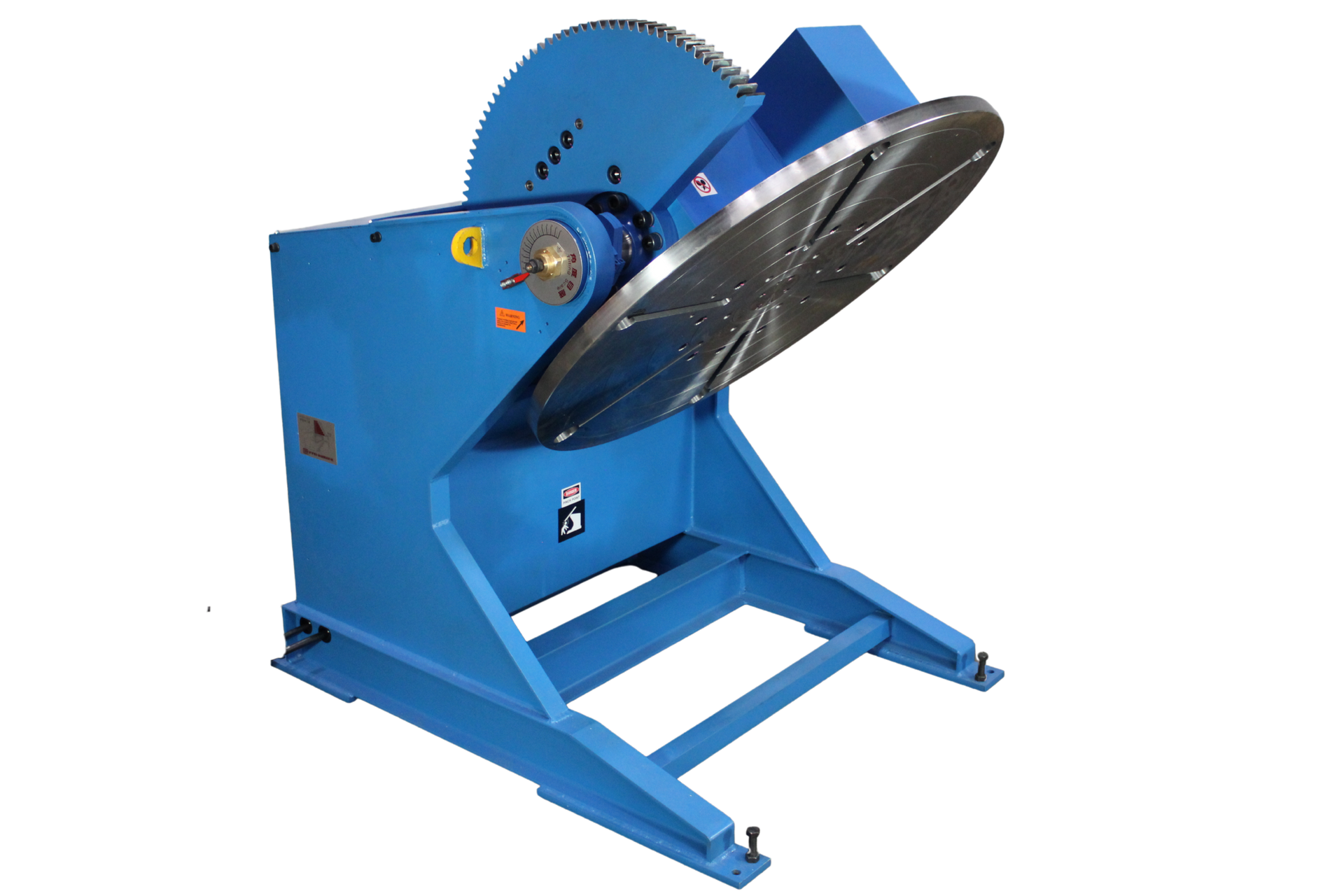

POK-20 Tilt

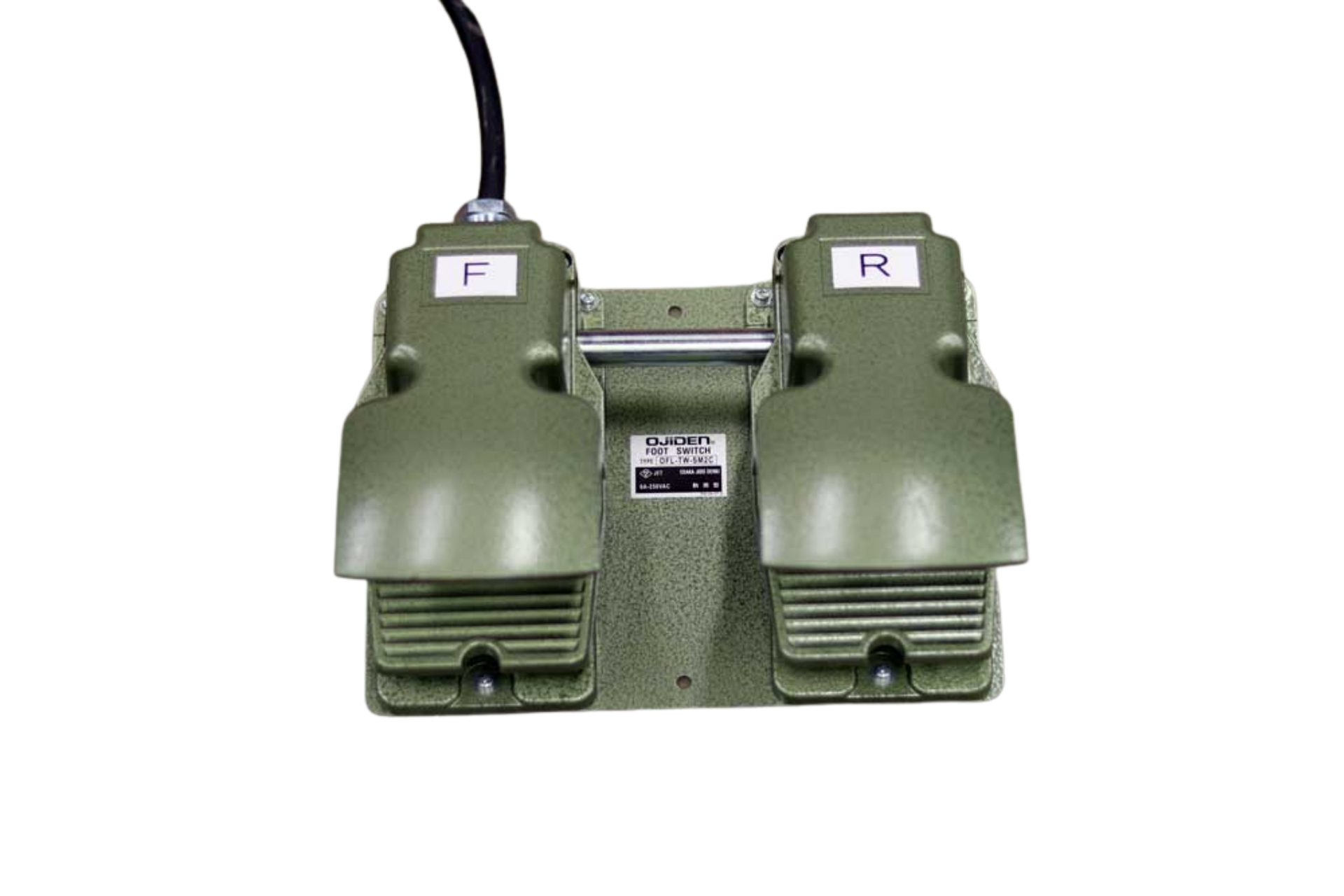

Control Pedals

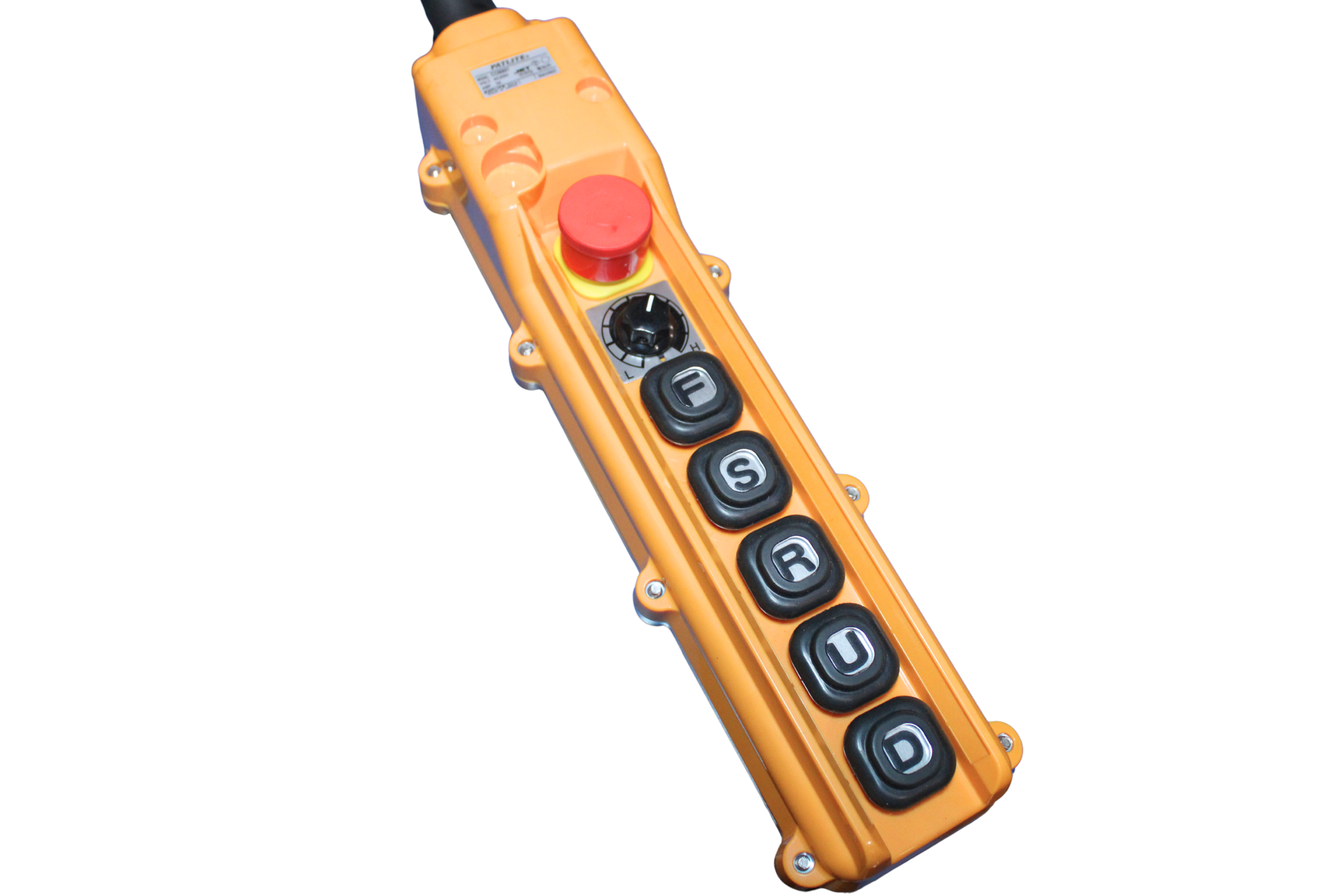

Control Pendant

135° Tilt Capacity

Control Foot Pedals

Control Pendant

Above Video: MAC POK-20 Welding Positioner

Specifications Model POK-20 Welding Positioner

  •  Max. loading capacity: 2000kgs / 4,400lbs
  •  Table dia.: 1100mm / 43in dia.
  •  Table height (at 0 degree): 1262mm / 49in
  •  Table rotation speed: 0.034 – 0.34 r.p.m.
  •  Rotating motor: 0.75kW Inverter Motor
  •  Table tilting angle: 0 – 135 degree
  •  Table tilting speed: 135degree/67sec. (50Hz.)                                                        135degree/56sec. (60Hz.)
  •  Tilting motor: 1.5kW Geared Motor with brake
  •  Centroid eccentricity: 300mm
  •  Centroid height: 300mm
  •  Operation: By Pendant Switch & Foot Switch
  •  Speed regulating: By Dial in Pendant Switch
  •  Power cable length: 10M / 32ft
  •  Max. allowable current: 800A (at 50% Duty Cycle)
  •  Power main (Original input power source of POK-20X-A):  AC 200V., 50/60Hz., 3-Phase


Standard features Model POK-20 Welding Positioner

  •  Power Tilt
  • Infinitely variable speed table rotation.
  • Rotation drive with LED frequency display for speed adjustment.
  • Push button pendent control for power tilt and table rotation.
  • For and Rev foot control for table rotation.
  • 800 amp welding ground at 50% duty cycle.
  • Machined table with centering grooves.
  • Extra heavy worm gear drives and construction.
  • Tilt gear shaft supported at each end for long life.
  • 360 degree table rotation CW & CCW with power on indicator light.
  • High frequency protected for Tig welding.
