PB1005 - Pipe Bully
Pipe Welding Rotator
Used with an outboard roller support the Pipe Bully can rotate a large diameter range of pipe smoothly and efficiently. The PB1005 can support up to 1,000 lbs using its outboard roller, and is available with three different control options.


MADE IN USA
Email  sales@allfabcorp.com to place an order or ask questions.

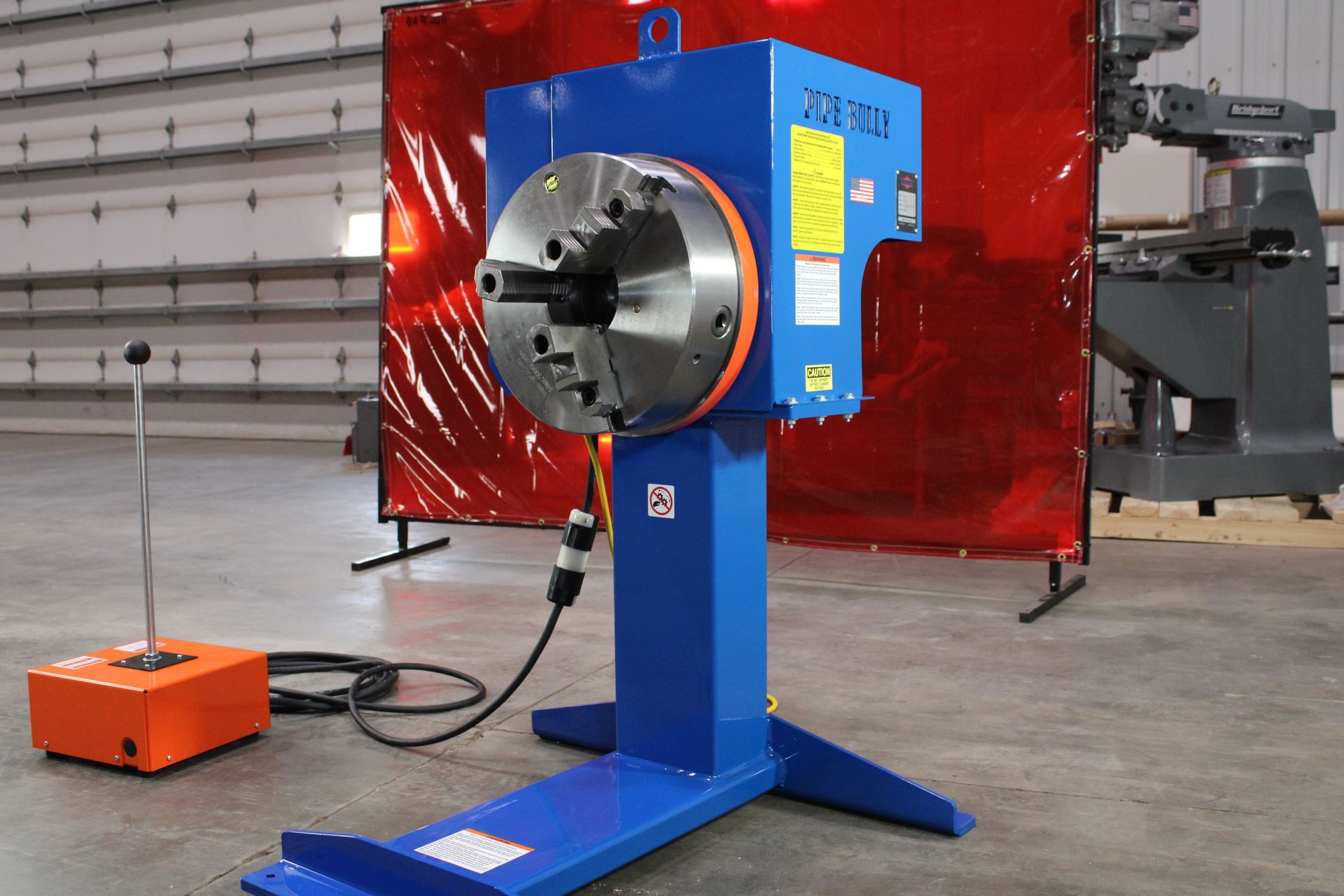

Pipe Bully Pipe Rotator

Model PB1005 : $14,000    Price Includes: Gator MT16 chuck, RS-15 outboard roller support, on/off foot control and 500 Amp capacity rotary welding ground.

USA Flag

Pipe Bully is Made In The USA

Pipe Bully Pipe Rotator in production
THIS BULLY WILL BE YOUR BEST FRIEND!  You will increase your pipe welding productivity and profits with the Pipe Bully.  The Pipe Bully offers mechanical contractors and pipe shops a low cost, high quality solution for rotating pipe, tubing and solid shafts for welding. Email or call for a quick quote today. sales@allfabcorp.com

Click on below Pipe Bully images to enlarge.

PB1005 and PB2005 Quick Compare
PB1005 and PB2005 Pipe Bully Quick Compare
PB1005 and PB2005 Quick Compare

This is paragraph text. Click it or hit the Manage Text button to change the font, color, size, format, and more. To set up site-wide paragraph and title styles, go to Site Theme.

Model PB1005
1000 lb capacity with an outboard roller support .

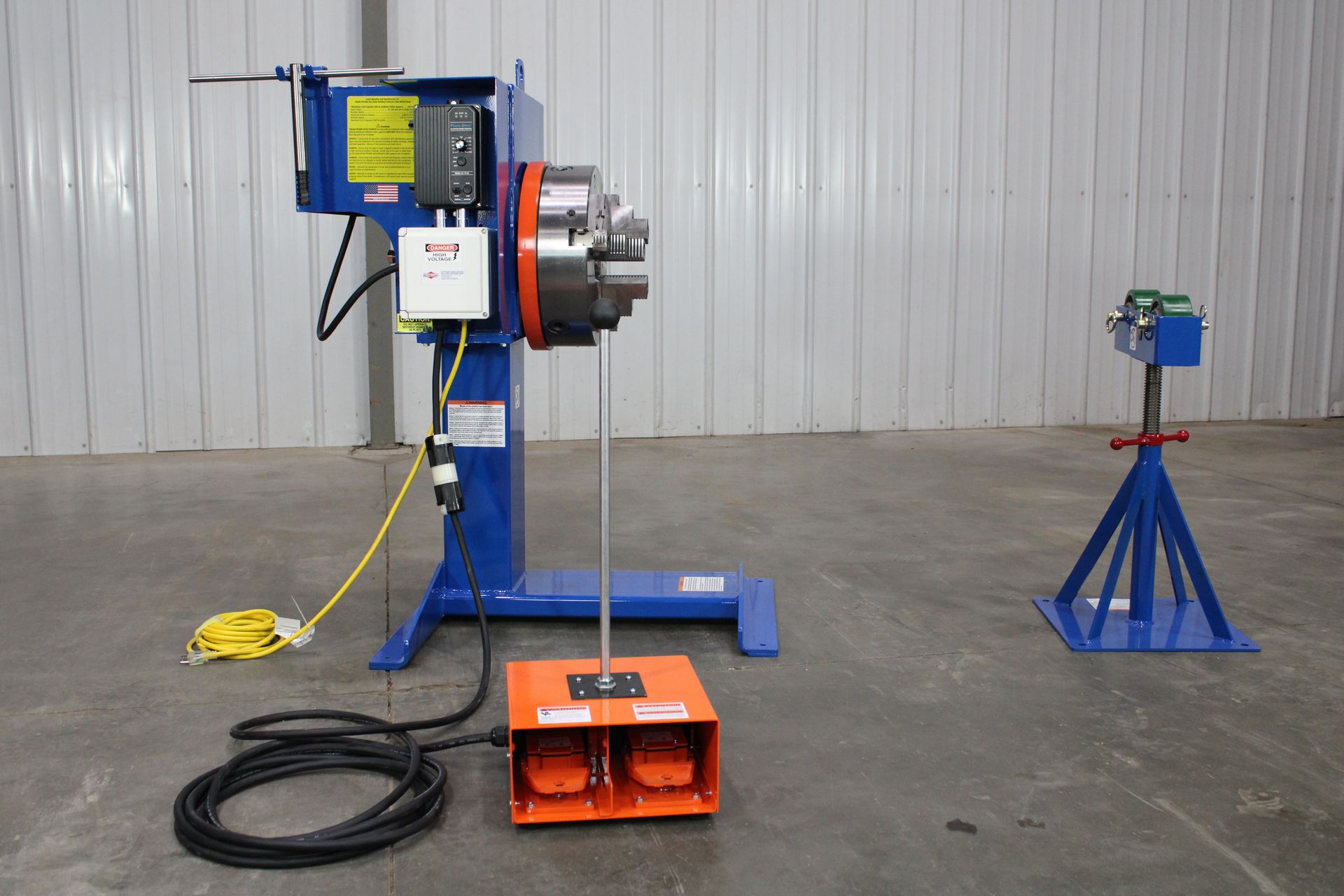

Model PB1005 Pipe Bully Welding Rotator. PRICE INCLUDES Gator MT16 Chuck, 500 Amp. rotary welding ground, on/off foot control with 25 feet of cable and RS-15 outboard roller support.  Maximum Outside Diameter gripping 16 inches.

Capacity

*Maximum Load Capacity using outboard roller support 1000 pounds
Maximum Rotation Torque 5000 in-lb
Maximum Pipe Diameter 16 inches

*Model PB1005 must be used with an outboard roller support. Chuck is fixed at
90 degrees to floor and does not tilt.

Rotation

Motor: 1/2 HP DC Variable speed.
Speed Range – Variable from 0.08 to 1.9 RPM
Speed Accuracy – 2 % of base speed.

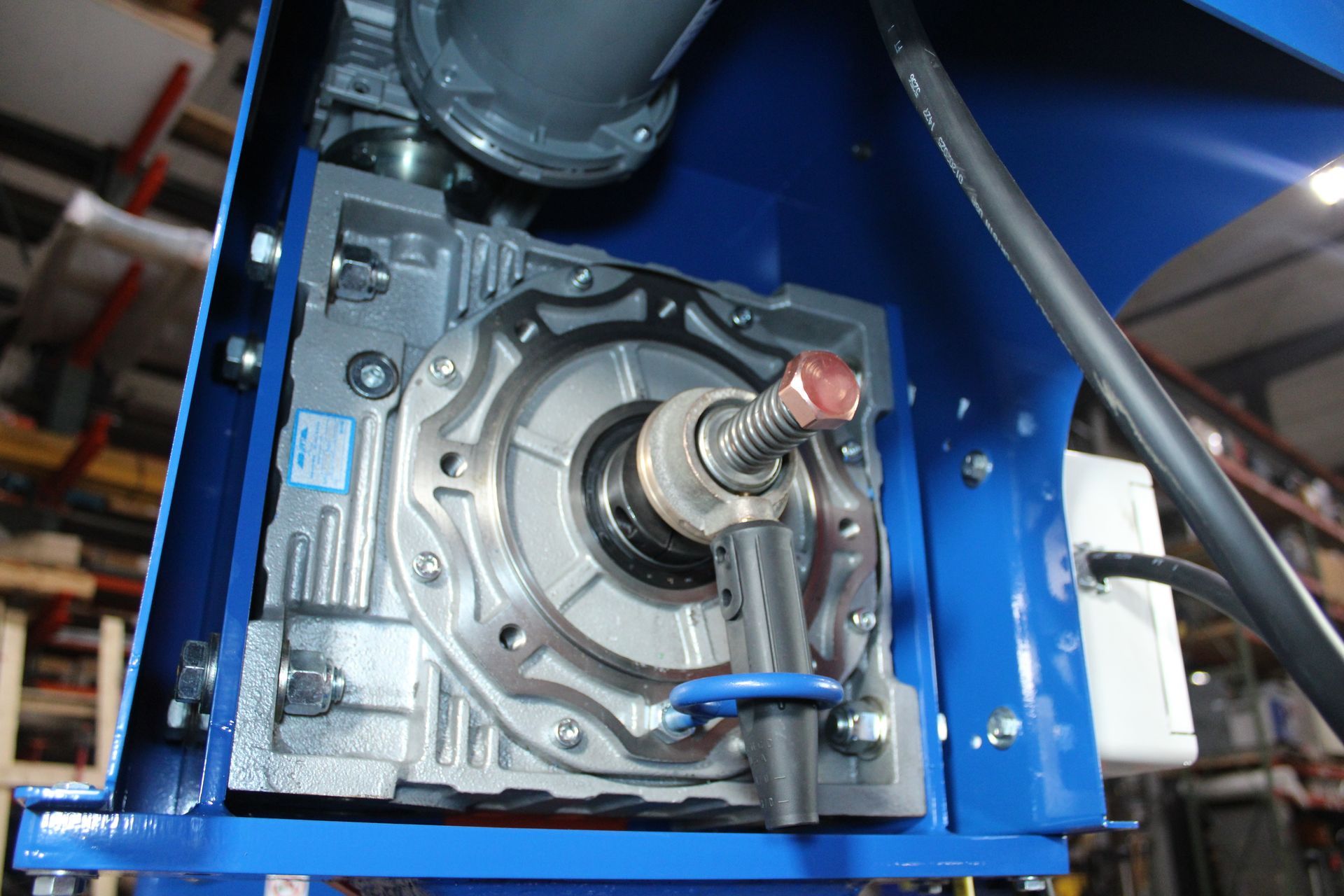

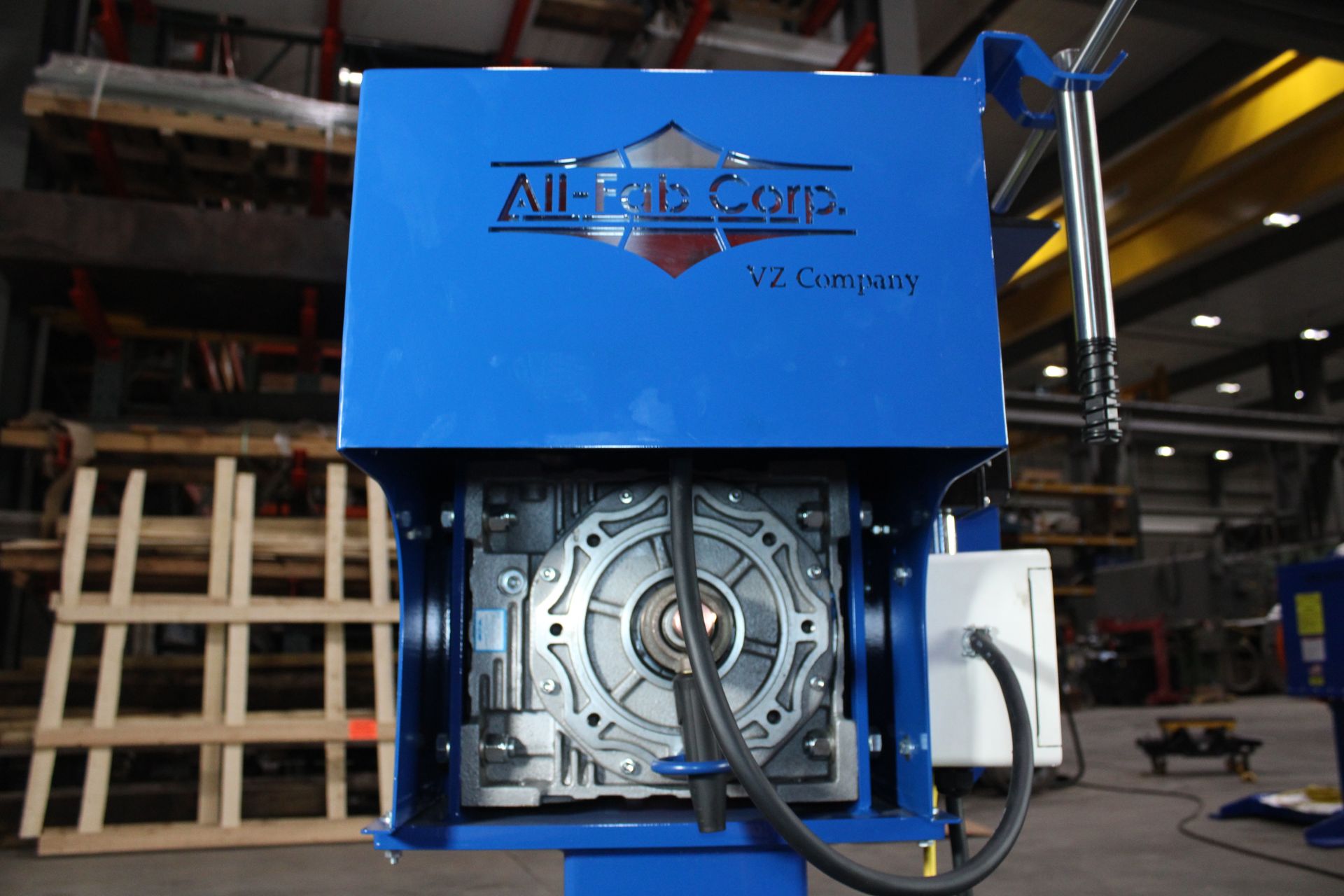

Rotation Drive – Fully enclosed & lubricated self-locking worm gear.

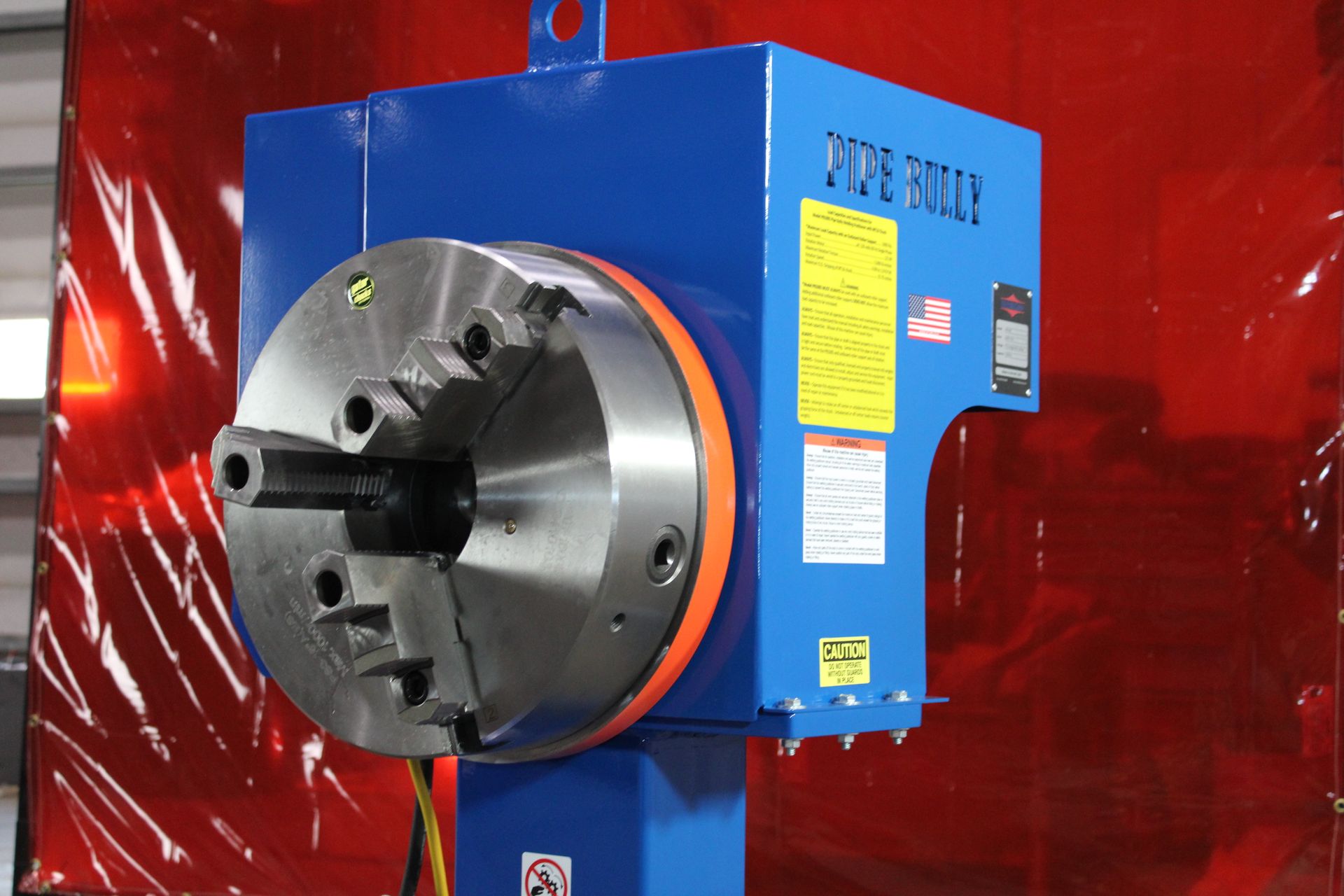

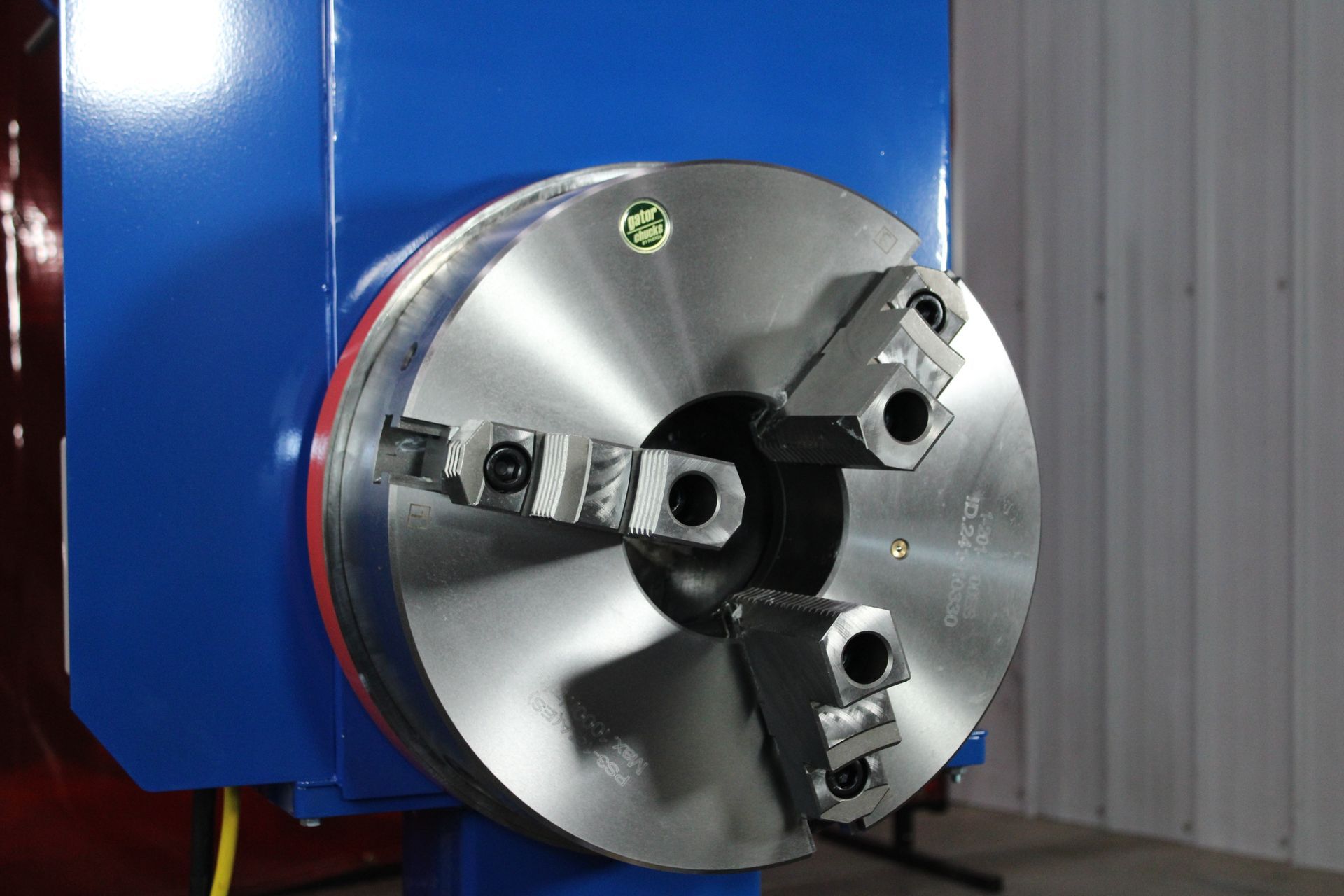

Chuck – MT16 Gator 3-jaw self-centering
Maximum Outside Diameter gripping 16 inch
Minimum Outside Diameter gripping 0.625 inch
Fixed at 90 degrees to floor
Centerline of chuck to floor 32 inches.
3-jaw self-centering hardened reversible jaws.

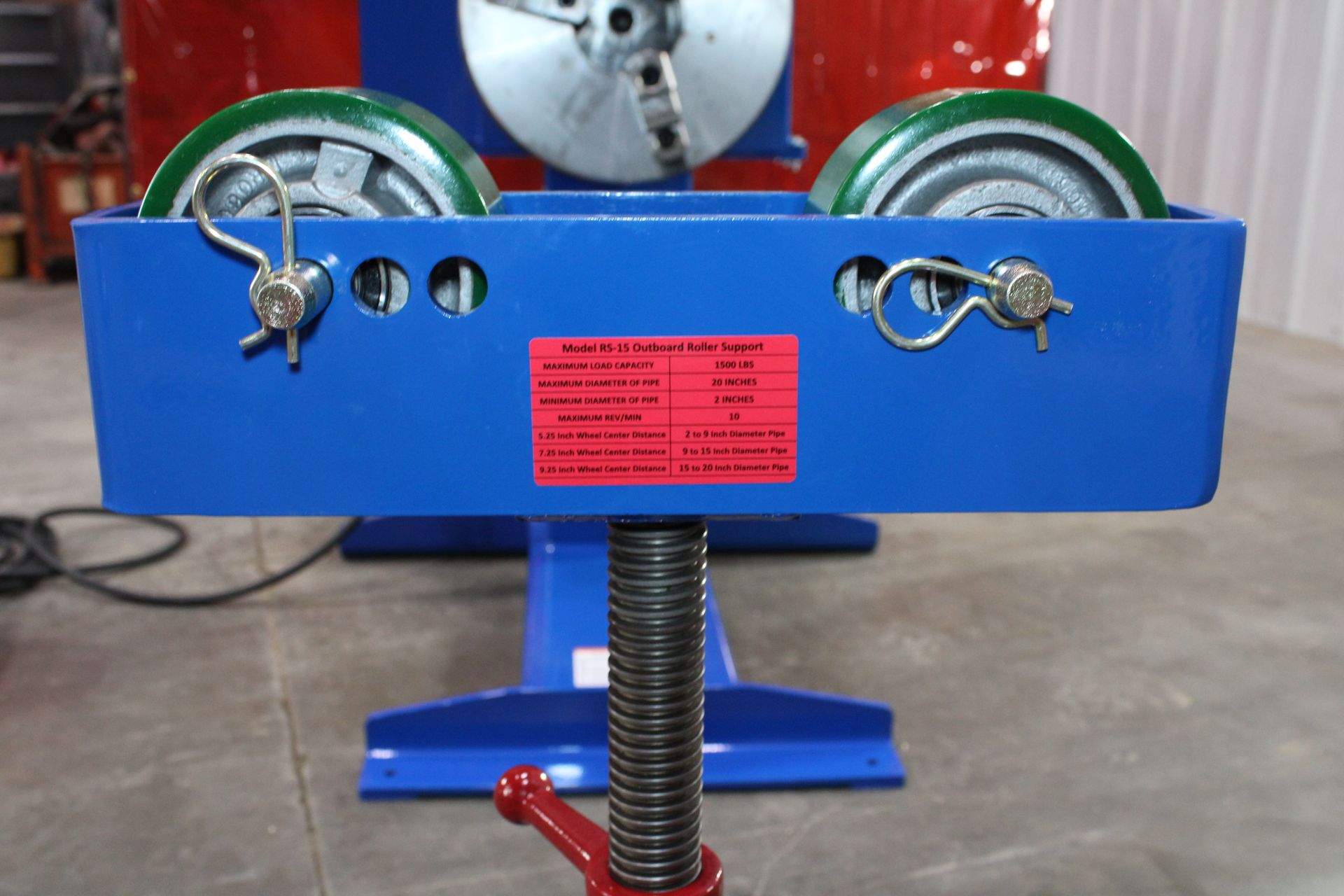

RS-15 outboard roller support
Maximum Load Capacity 1500 lbs.
Maximum Pipe Diameter 20 inches
Minimum Pipe Diameter 2 inches
Vertical Height adjustment 9.0 inches
Urethane rolls with sealed ball bearings
Roll to roll adjustment settings - 3
Powder coated frame with 4 anchor bolt holes.

Welding Ground Conduction – 500 Amps thru spring loaded mechanical ground.

Primary Input power – AC 115 volts 60 Hz Single Phase 15 Amp.

Controls

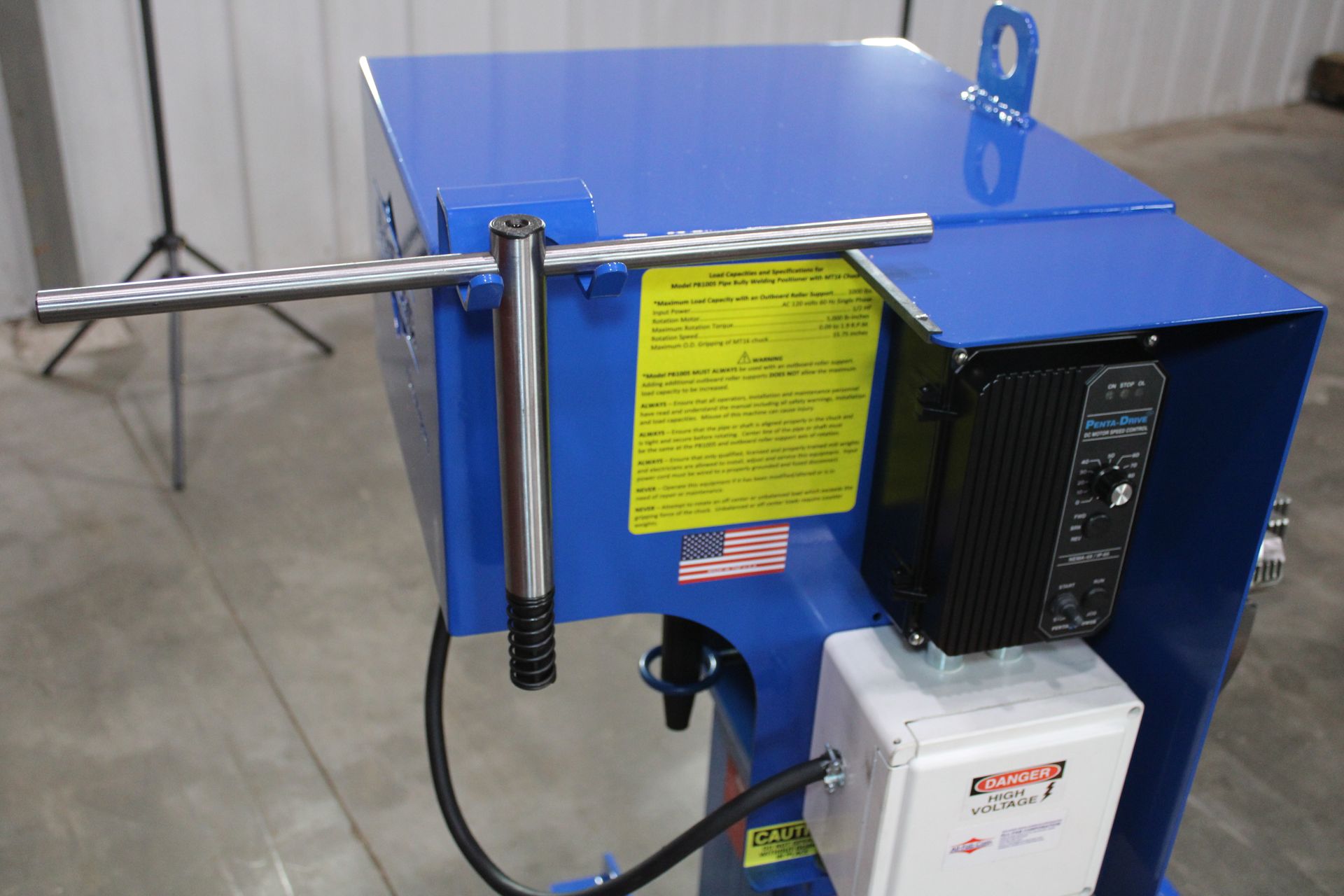

External Nema 4X Control box – With Power On, Stop and Overload indicator lights.
Speed Control – One turn potentiometer
Directional Control – Forward/Reverse switch with dynamic braking resistor.
Start Stop Switch – For safety must be used to start if power is lost.
Overload Protection – 8 Amp motor fuse.

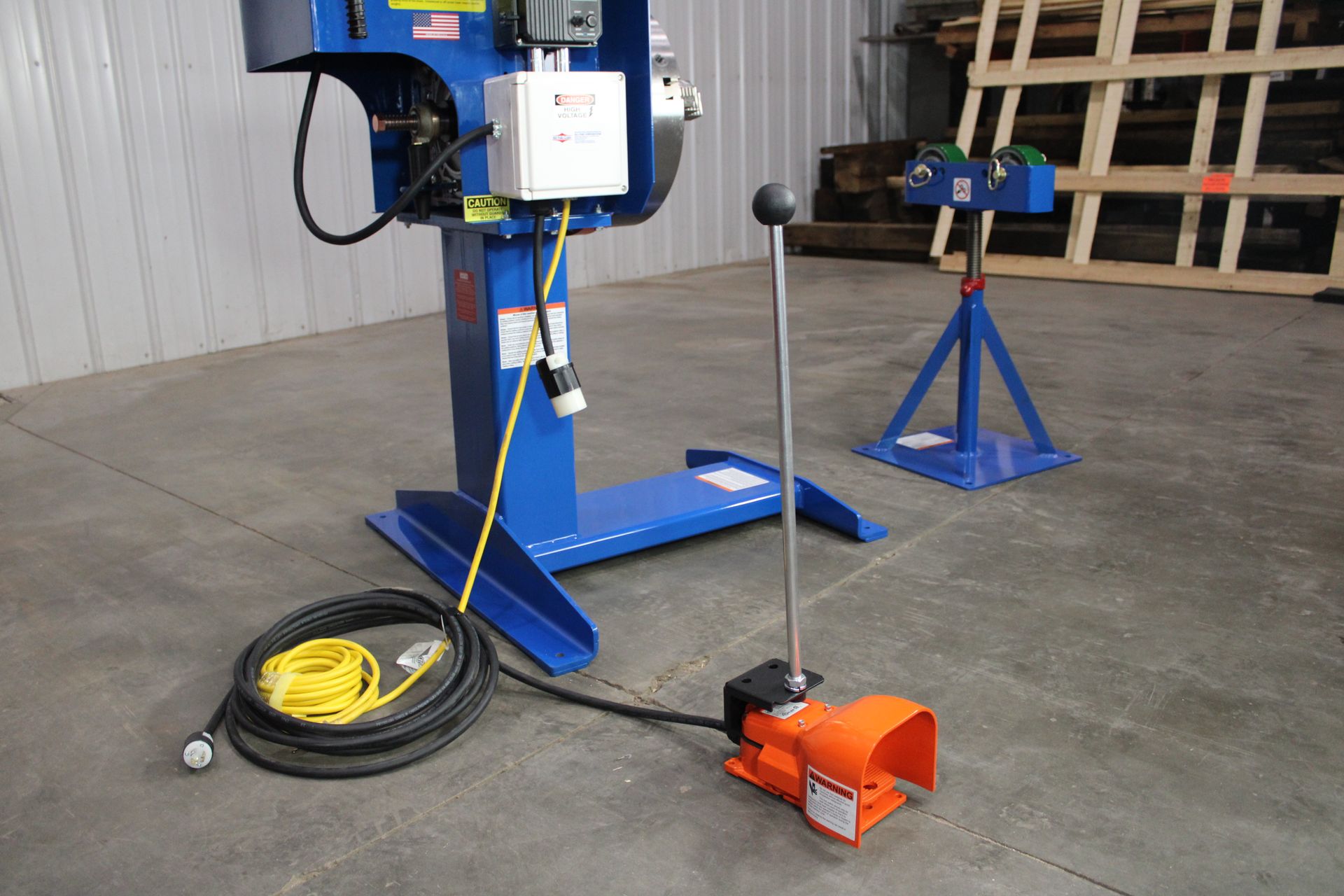

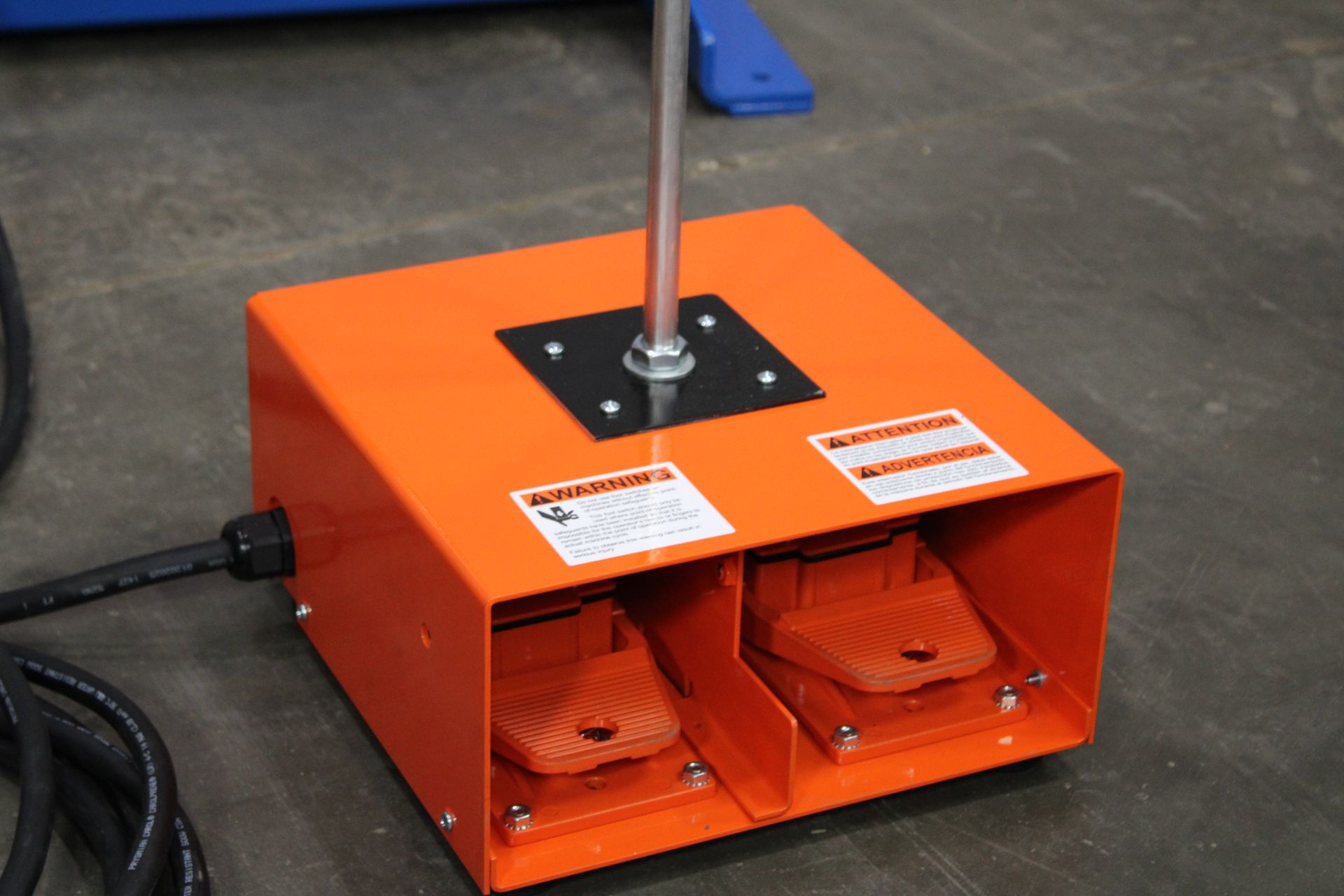

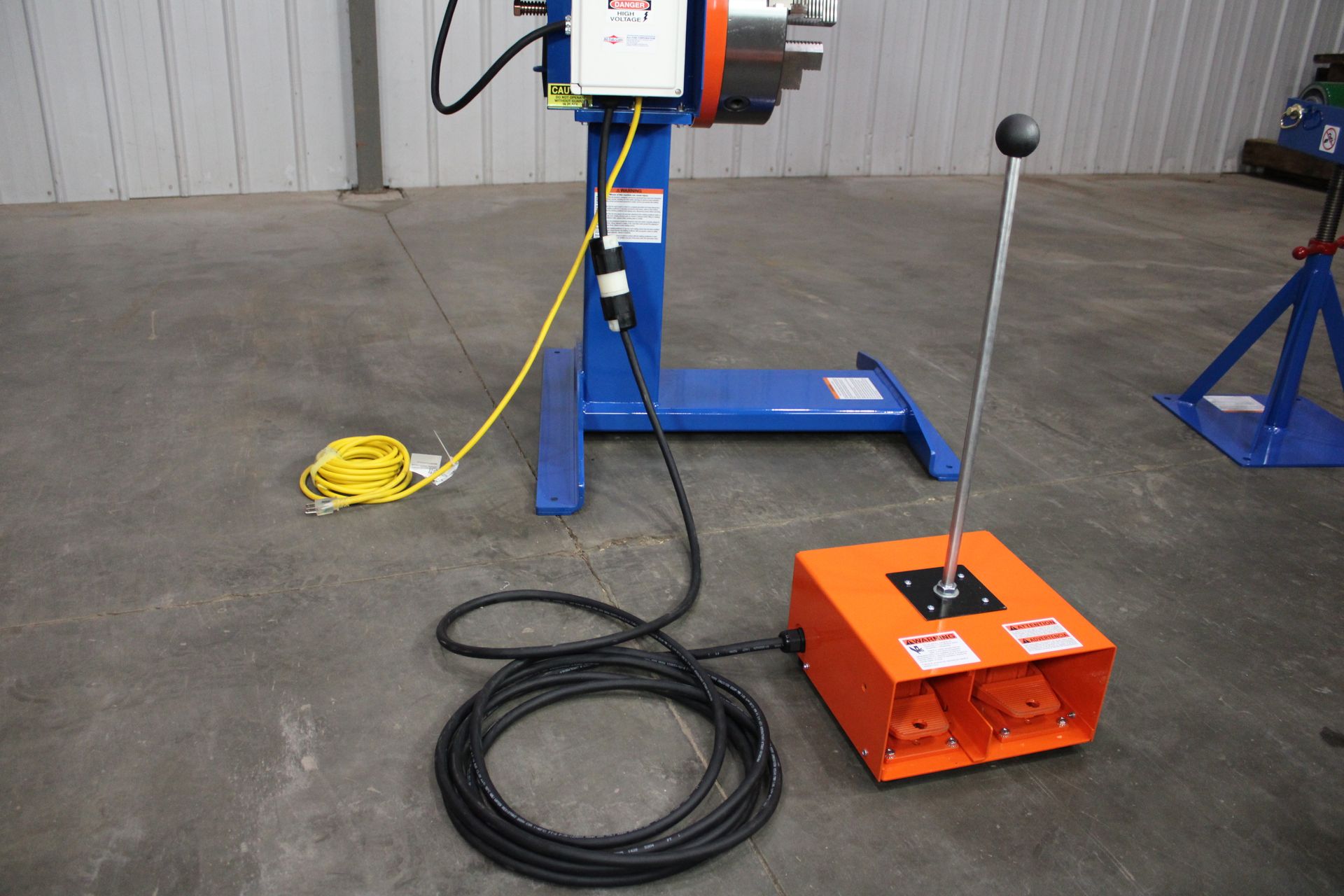

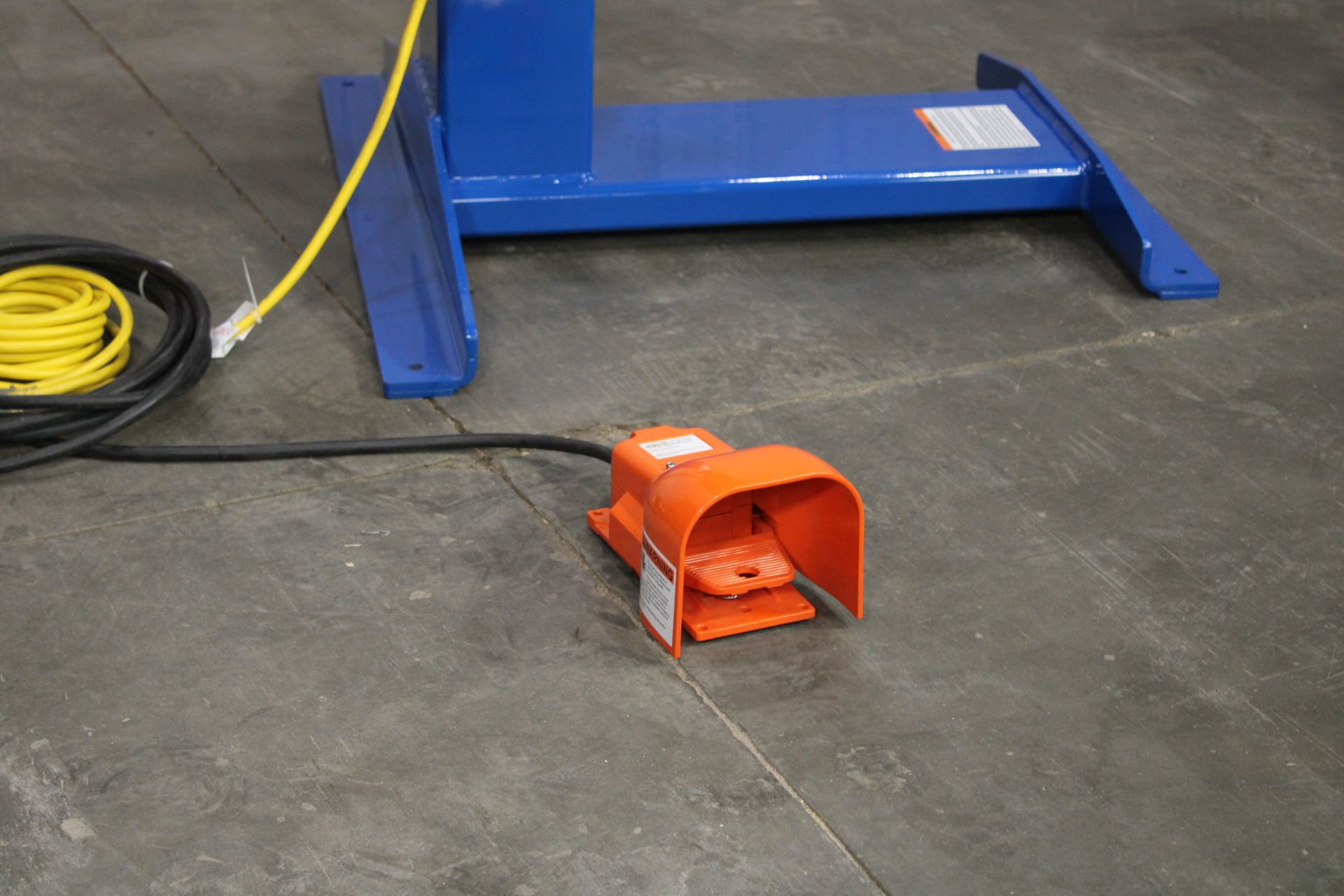

Foot Switch – Heavy Duty Remote start/stop with 25 feet of cable.
Cables – All motor, foot control and input power cable Heavy Duty 600 volt.

Frame – Heavy tube construction powder coated, Qty. 4 anchor bolt holes.

Approximate shipping Weight – 980 pounds, crate size 54” x 44” x 54”

The Pipe Bully is being used in production at fab shops all across North America.

 See just a few of our satisfied customers by clicking the image below of the Pipe Bully Rotator in production .

Pipe Bully in Production
Pipe Bully

Above: Pipe Bully being prepped to be sent out to a customer location.  Contact us today sales@allfabcorp.com for more information or to purchase The Pipe Bully.
