Height Adjustable Rotating Table
360° handling
The height adjustable rotating table allows easy access around all sides of the workpiece.
Ergonomic working in a small space
The height adjustable rotating table allows easy access around all sides of the workpiece. The Siegmund height adjustable rotating table provides an ergonomic and space saving solution. The work top height is infinitely variable and can be fixed in position by a side locking lever.
Many Siegumund Welding Tables and accessories are on display at
All-Fab Corp in Allegan, Michigan.

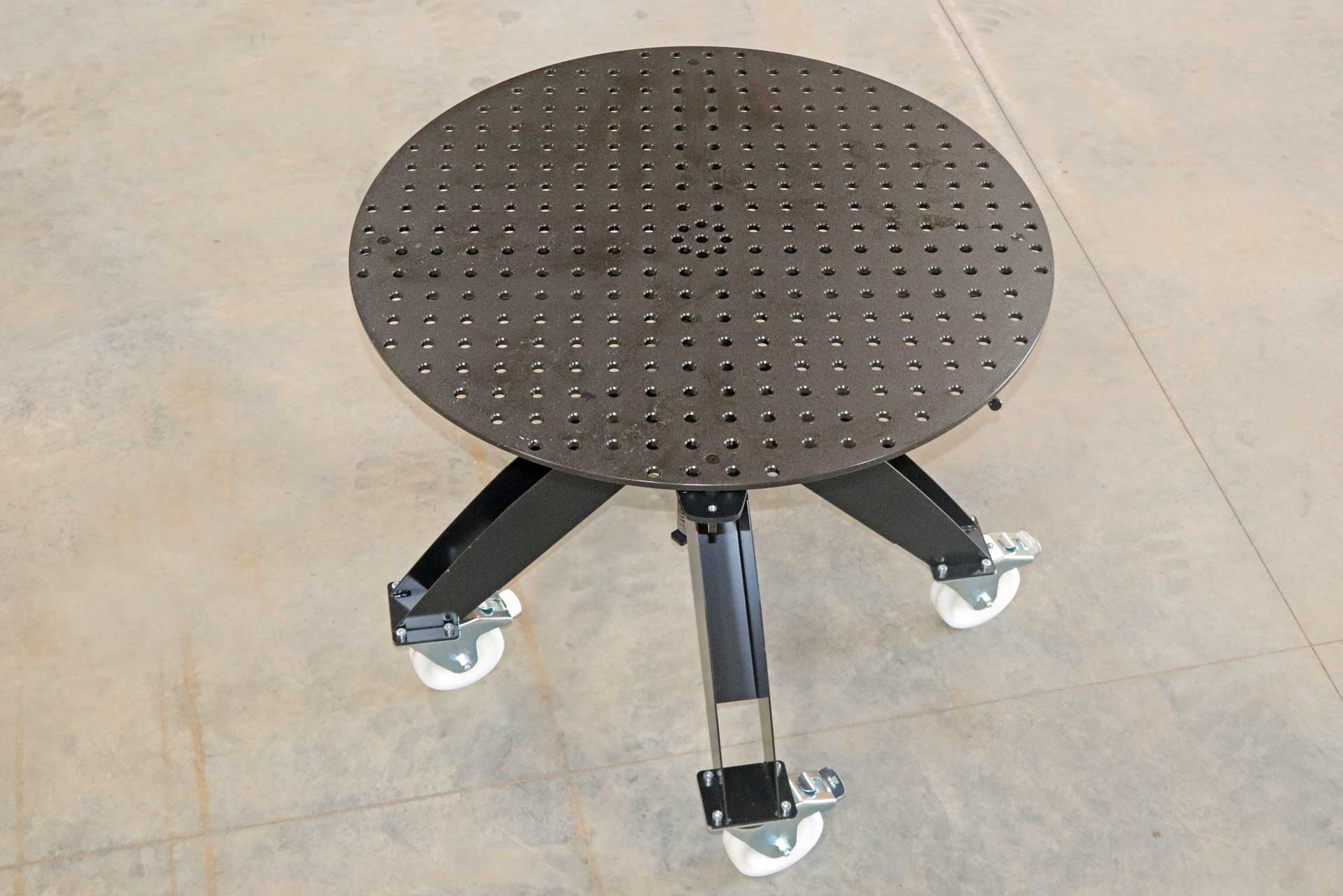

Above: Item Number: USDM164210.X7: Portable 40" Round Rotating Weld Table with Perforated Plate (Siegmund Imperial Series)
Two versions – Static or portable (Portable Shown)
Rotating Table Portable
Steel construction
powder coated finish
Will be delivered pre-assembled, customer to install table top
4 castors with locking brake
Dimensions (L x W): approx. 32" x 32"
Weight (without plate): approx. 154 lbs
Total weight (with plate): approx. 313 lbs
Maximum load capacity excluding top plate 2,200 lbs
Working height between 31" and 43"
Rotating Table Static
Steel construction
powder coated finish
Will be delivered pre-assembled, customer to install table top
4 base plates ∅ 3-9/16"
Dimensions (L x W): approx. 31" x 31"
Weight (without plate): approx. 154 lbs
Total weight (with plate): approx. 313 lbs
Maximum load capacity excluding top plate 2,200 lbs
Working height between 31" and 43"

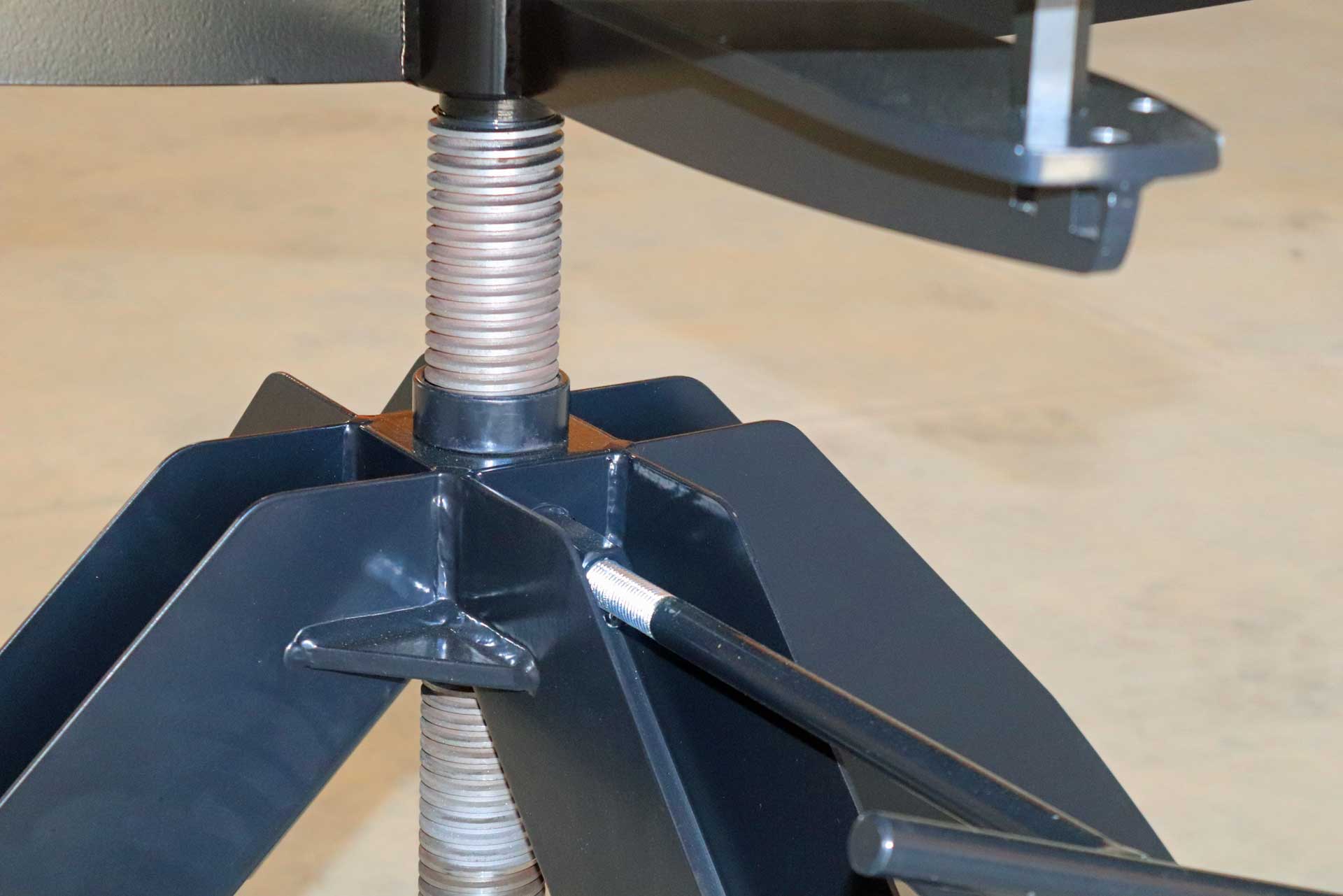

Stepless height adjustment
- Height adjustment through threaded rod
- Working height between 31" and 43"
- Locking lever to secure the working heigh
360° handling
The height adjustable rotating table allows easy access around all sides of the workpiece.
