RD-5-INW Tank Turning Rolls

RD-5-INW-A Tank Turning Roll

Don’t get burned by other obsolete drive shaft, chain or friction drive tank turning rolls. MAC Twin Drive Roll System offers the most reliable, steady, and maintenance free drive system available in tank turning rolls.

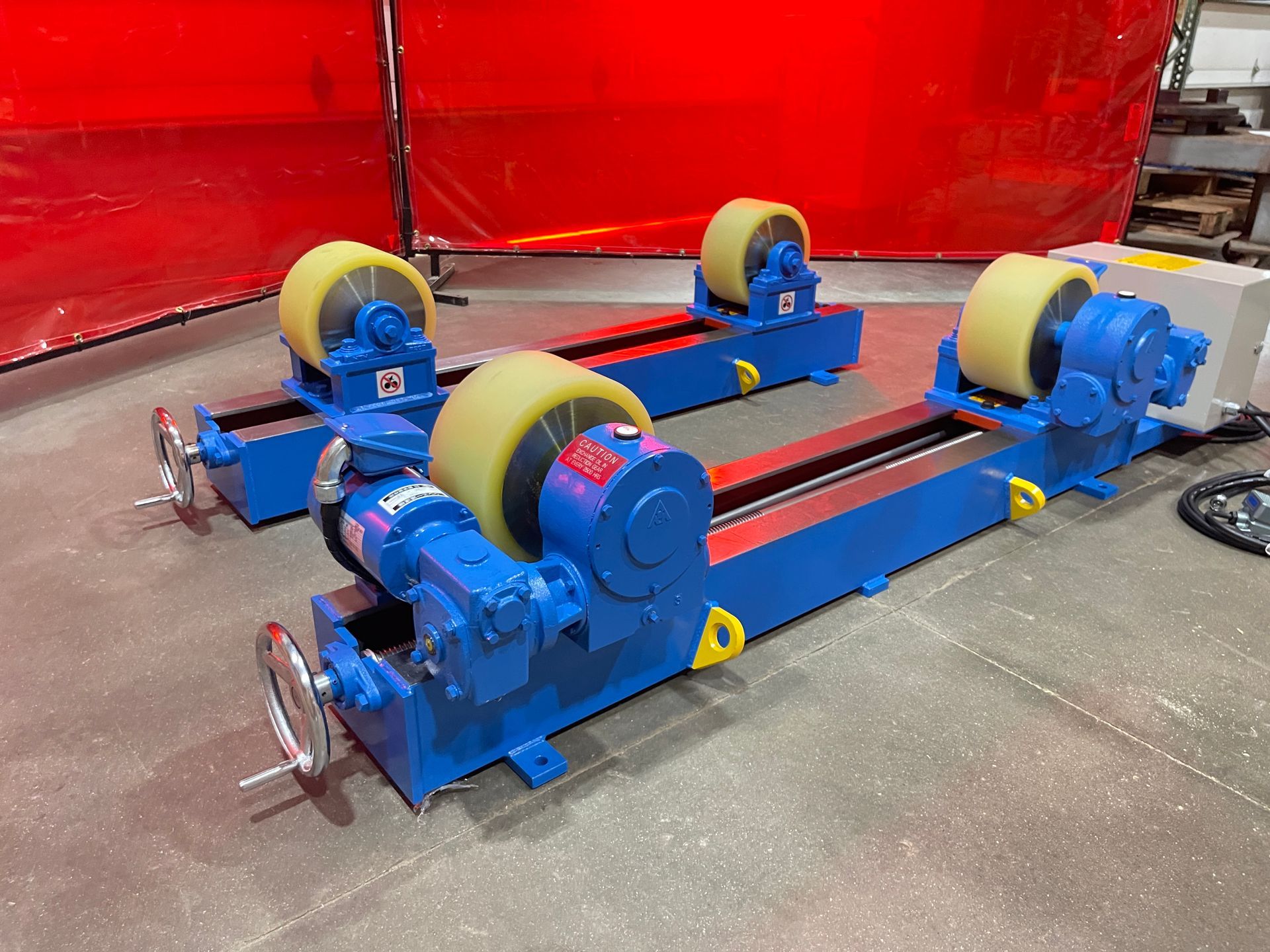

RD-5-INW Tank Turning Roll
With the RD-5-INW-A you won't have setup or down time due to lost or bent drive shafts used by most other turning roll manufactures.
The RD series turning rolls feature an industry exclusive infinitely variable roll to roll center distance by lead screw adjustment on both the drive roll and idler roll. This allows quick and easy adjustment for the perfect roll to roll center distance. The top bed of both the idler and drive roll are also machined for flatness and greater accuracy, which reduces spiral out movement of the tank or pipe.

Specifications MAC Model RD-5-INW
  • Input Power: AC 120 volts 60 Hz Single Phase
  • Maximum load capacity per set of one drive roll and one idler roll: 11,000 lb.
  • Maximum work-piece diameter: 120 in.
  • Work-piece diameter range: 11.8 in. to 120 in.
  • Speed Range: 3.9 to 39 in./min.
  • Approximate shipping weight per set: 1,210 lb.
Standard Features MAC Model RD-5-INW-A Turning Roll

• Push button pendent control with maintained forward, stop, reverse, E-stop and roll speed adjustment.
• On/off foot control with quick plug in for easy removal and storage.
• Control voltage stepped down to 24 volt DC for operator safety.
• Variable roll to roll center distance by hand wheel & acme screw to maintain constant centerline of the work-piece.
• Each drive roll independently powered. Eliminating all of the many problems and constraints associated with drive shaft systems.
• All gear drive system is lubricated and sealed from contaminants such as weld spatter and slag. There are NO belts or chains that will stretch, wear or need adjustment.
• Heavy box frame construction with bed fully machined flat for accuracy.
• Heavy duty lifting lugs welded to the frame on both drive and idler rolls.
• Machined steel rolls with rubber center for traction provide greater accuracy.
• AC inverter drive with LED frequency display for speed adjustment.
RD-5-INW Tank Turning Roll Features
RD-5-INW-A Tank Turning Roll
All-Fab Corp. has sold thousands of tank turning rolls to satisfied customers in the U.S. and Canada over the past 25 years. We are tank turning roll experts. Click on the image below to see just a few of the Tank Turning Rolls we have sold being used in production.
Tank Turning Rolls in Production
