RD-3-INW Tank Turning Rolls

MAC RD-3-INW Tank Turning Roll

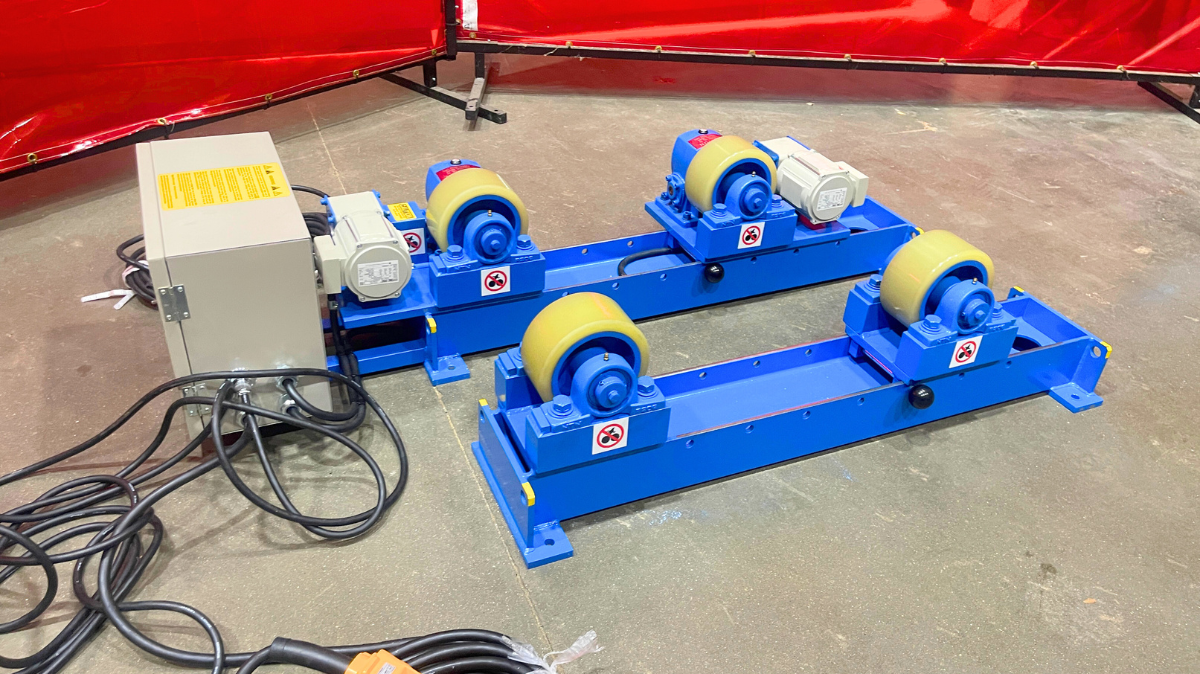

RD-3-INW Tank Turning Roll

Specifications MAC Model RD-3-INW Tank Turning Roll



  • Input Power: AC 120 volt 60 Hz Single Phase
  • Maximum load capacity per set of one drive roll and one idler roll: 6,600 lb.
  • Maximum work-piece diameter: 79 in.
  • Work-piece diameter range: 7.9 in. to 78.7 in.
  • Speed Range: 3.5 to 35.4 in./min.
  • Approximate shipping weight per set: 580 lb.
RD-3-INW Tank Turning Roll

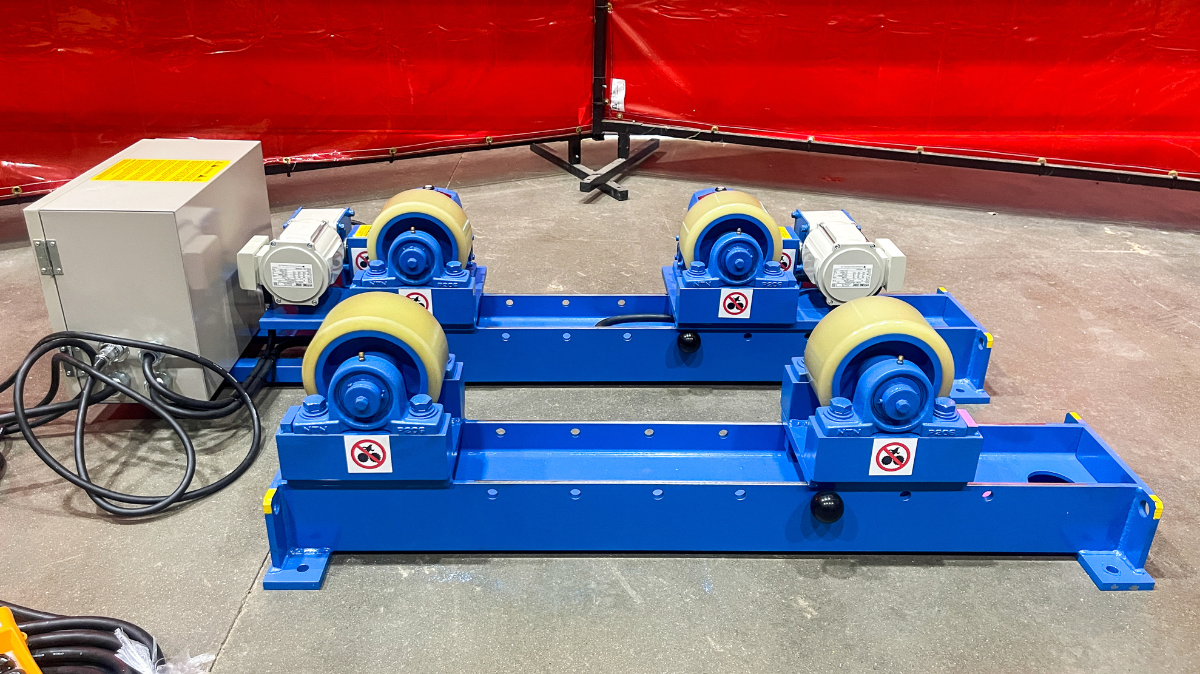

Above: MAC Model RD-3-INW Tank Turning Roll with power and idler rolls at the minimum distance.

MAC Model RD-3-INB Tank Turning Roll

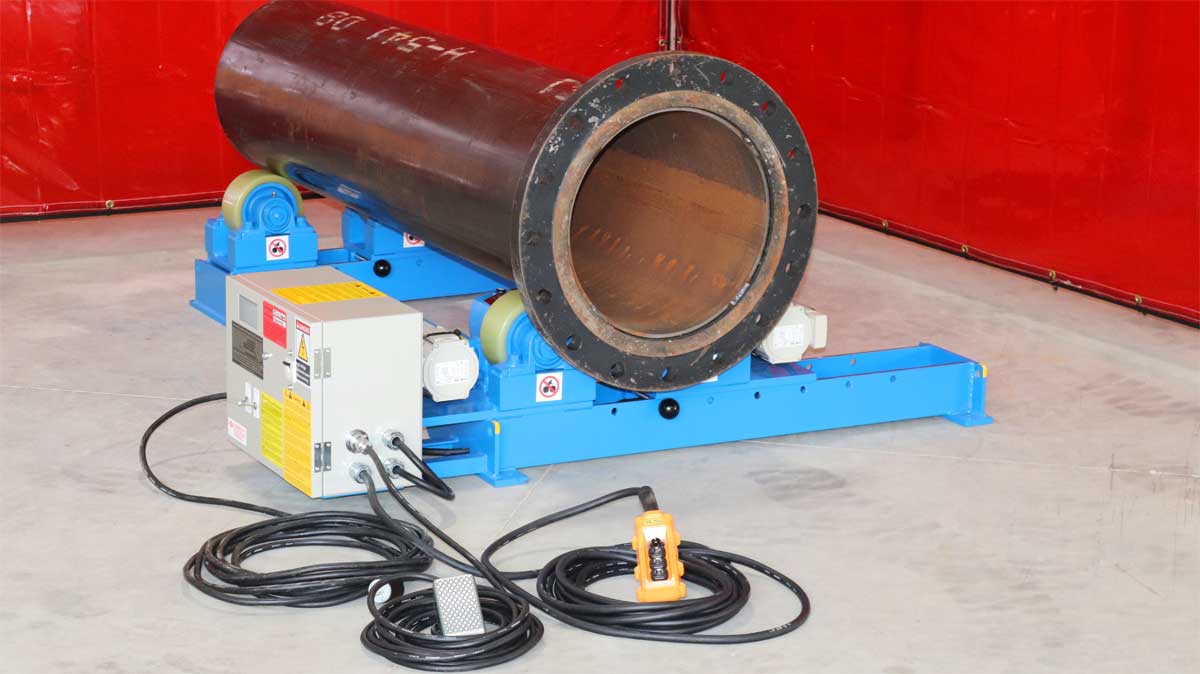

Above: MAC Model RD-3-INW Tank Turning Roll turning a 16 inch diameter pipe.

Standard Features MAC Model RD-3-INW Tank Turning Roll


  • The model RD-3-INW Tank Turning Roll features both drive rolls independently powered providing excellent driving
  • On/off electric foot control with forward and reverse switch at the control box.
  • Adjustable roll to roll center distance for optimum contact angle.
  • Each worm gear drive system is oil immersed for long life and sealed from contaminants such as weld spatter and slag.
  • Hand held push button pendent control with maintained forward, stop, reverse and infinitely variable speed adjustment.
  • Adjustable roll to roll center distance for optimum contact angle.
  • Both drive rolls independently powered eliminating the many problems associated with drive shaft systems.
  • Separate drive roll & idler roll allows for short or long work-pieces.
  • AC inverter drive with LED frequency display for speed adjustment.
  • Machined bed on idler and drive roll for greater accuracy.
  • Low voltage 24 volt D.C. operator controls.



RD-3-INW Tank Turning Roll Wheels

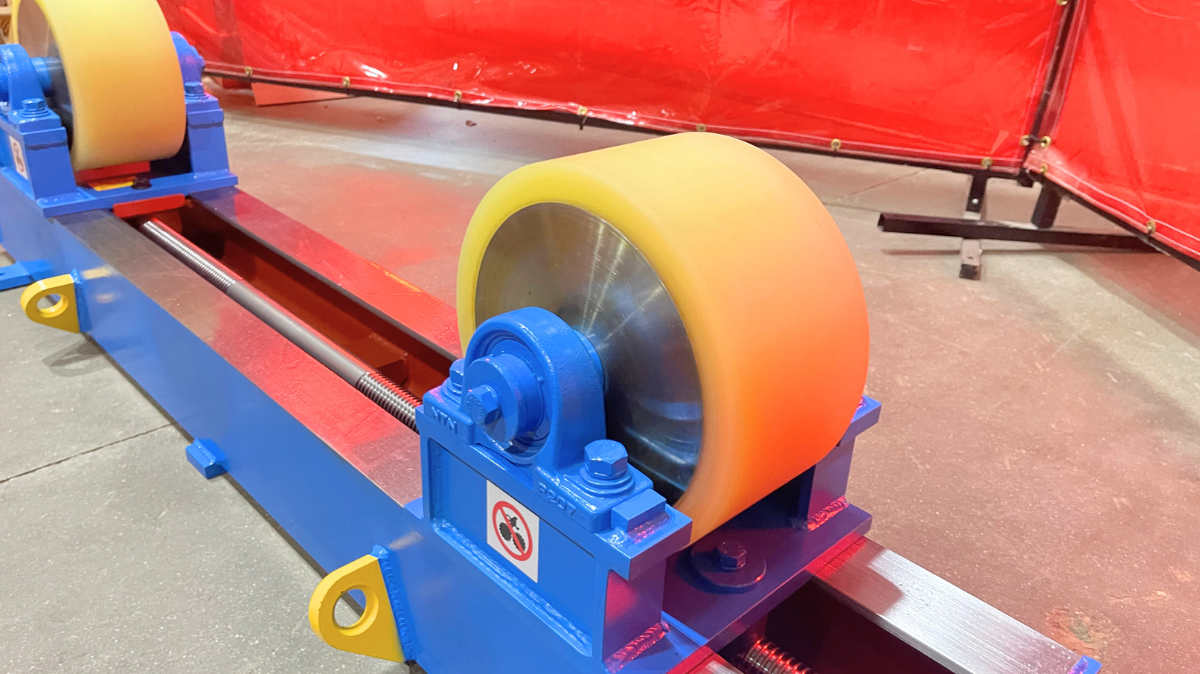

Above: MAC Model RD-3-INW Tank Turning Roll drive and idler rolls have a heavy duty iron core with extra thick urethane for long life and traction. The rolls will not mar or scratch materials such as stainless steel or aluminum.

RD-3-INW Tank Turning Roll Electrical Box

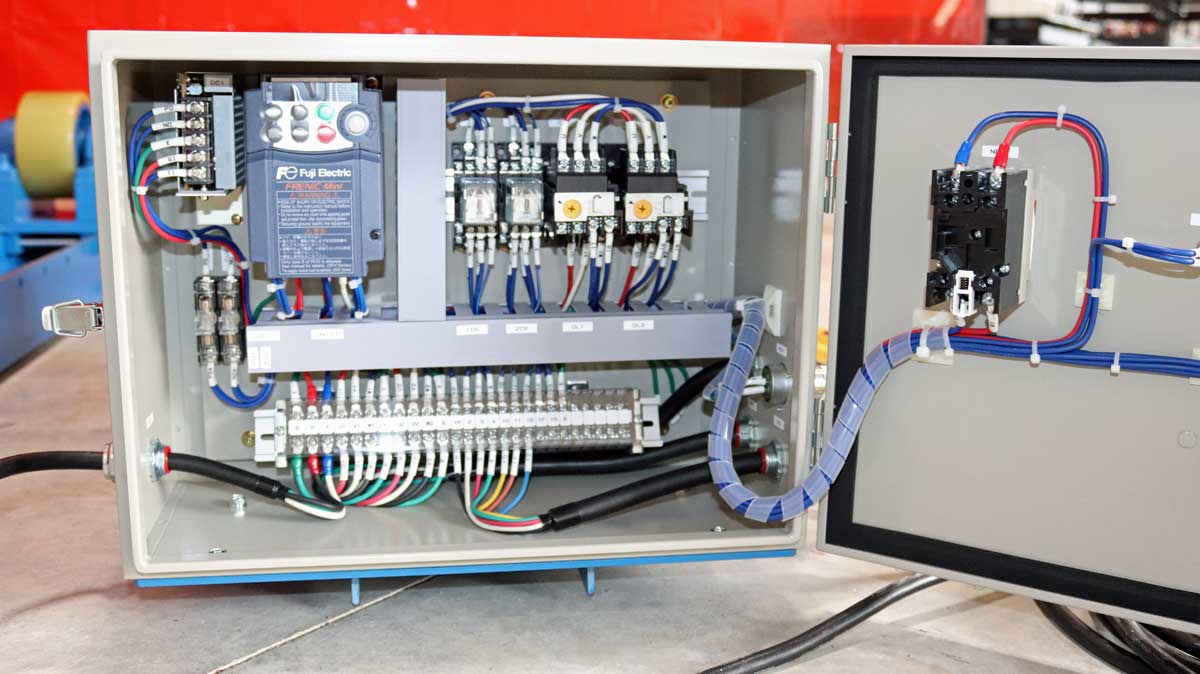

Above: MAC Model RD-3-INW Tank Turning Roll Electrical Box.

Above Video: MAC Model RD-3-INW Turning Roll turning a 16 inch diameter pipe.

  • Input Power: AC 120 volt 60 Hz Single Phase
  • Maximum load capacity per set of one drive roll and one idler roll: 6,600 lb.
  • Maximum work-piece diameter: 79 in.
  • Work-piece diameter range: 7.9 in. to 78.7 in.
  • Speed Range: 3.5 to 35.4 in./min.
  • Approximate shipping weight per set: 580 lb.
All-Fab Corp. has sold Tank Turning Rolls to satisfied customers throughout North America.  See just a few of the Standard Tank Turning Rolls we have sold in production.
