RD-10-INW Tank Turning Rolls
RD-10-INW-A Tank Turning Roll
With the RD-10-INW-A you won't have setup or down time due to lost or bent drive shafts used by most other turning rolls. Don’t get burned by other obsolete drive shaft, chain or friction drive turning rolls. MAC Twin Drive Roll System offers the most reliable, steady, and maintenance free drive system available in turning rolls.
- Push button pendent control with maintained for, stop, rev and speed adjustment.
- Infinitely variable wheel center distance by hand wheel through lead screw allows for fast center distance adjustment and optimum contact angle.
- Heavy duty worm gear drives on each drive roll eliminates the many problems associated with drive shaft systems.
- Each drive system is oil immersed for long life and sealed from contaminants such as weld spatter and slag.
Specifications MAC RD-10-INW Tank Turning Roll
- Input Power: AC 120 volts 60 Hz Single Phase
- Maximum load capacity per set of one drive roll and one idler roll: 22,000 lb.
- Maximum work-piece diameter: 120 in.
- Work-piece diameter range: 15.7 in. to 120 in.
- Speed Range: 3.9 to 39 in./min.
- Approximate shipping weight per set: 1,870 lb.
Standard Features MAC Model RD-10-INW-A
• Push button pendent control with maintained forward, stop, reverse, E-stop and roll speed adjustment.
• On/off foot control with quick plug in for easy removal and storage.
• Control voltage stepped down to 24 volt DC for operator safety.
• Variable roll to roll center distance by hand wheel & acme screw to maintain constant centerline of the work-piece.
• Each drive roll independently powered. Eliminating all of the many problems and constraints associated with drive shaft systems.
• All gear drive system is lubricated and sealed from contaminants such as weld spatter and slag. There are NO belts or chains that will stretch, wear or need adjustment.
• Heavy box frame construction with bed fully machined flat for accuracy.
• Heavy duty lifting lugs welded to the frame on both drive and idler rolls.
• Machined steel rolls with rubber center for traction provide greater accuracy.
• AC inverter drive with LED frequency display for speed adjustment.

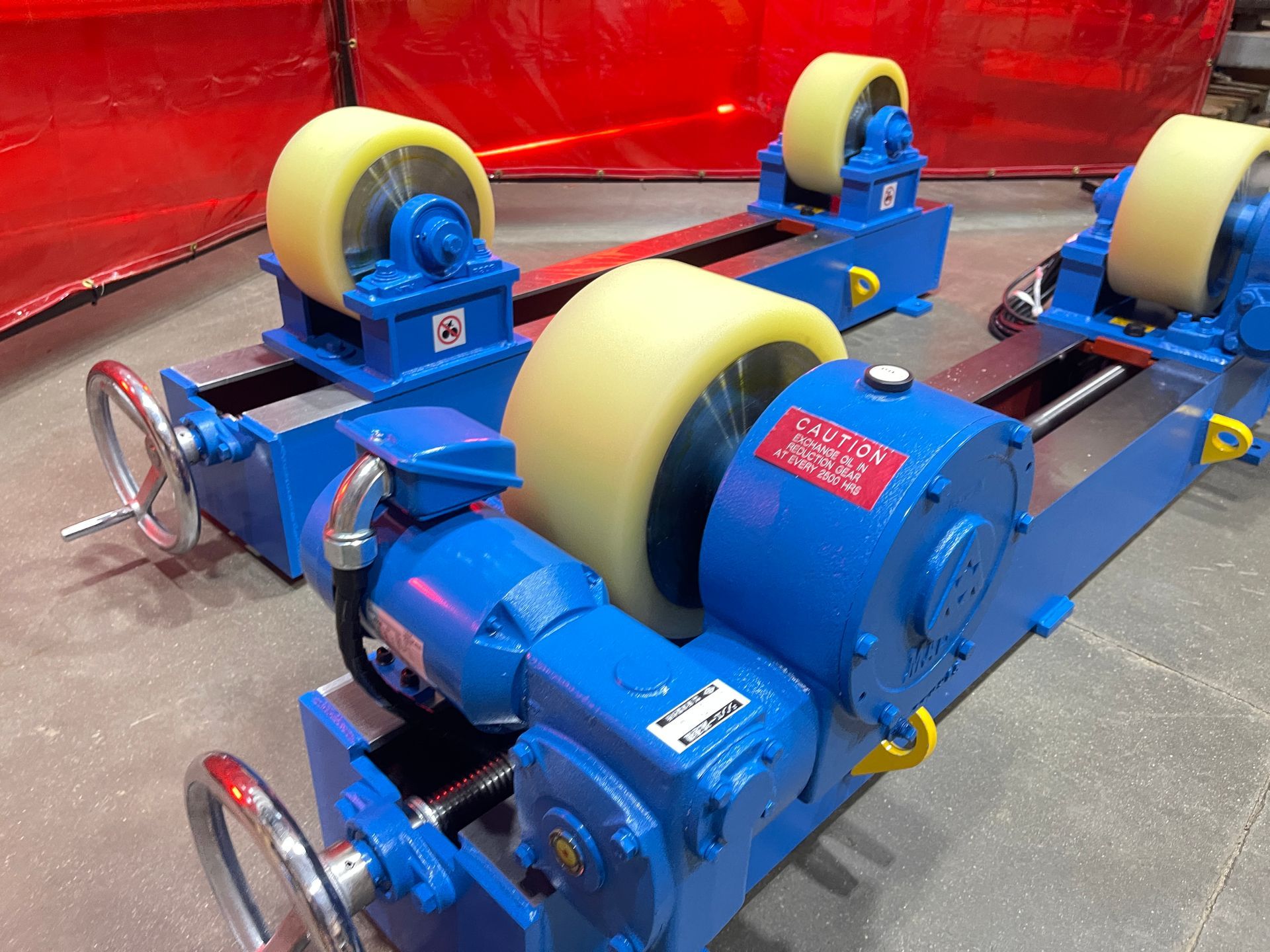

RD-10-INW-A Tank Turning Rolls being readied to ship out to a customer site.
