PS-1F Benchtop Welding Positioner

MAC Model PS-1F-5-A Benchtop Welding Positioner
MAC Model PS-1F Welding Positioner with optional MT6 Welding Chuck is shown in the video below.

Our #1 Seller PACKAGE DEAL Special! MAC Model PS-1F welding positioner WITH MT6 welding chuck only $1,799.00. (As seen in video above)

MAC Model PS-1F welding positioner:
$1,599.00

MAC Model PS-1F welding positioner with MT6 welding chuck : $1,799.00 (Shown Above)

MAC Model PS-1F welding positioner with WP200 chuck: $1,999.00

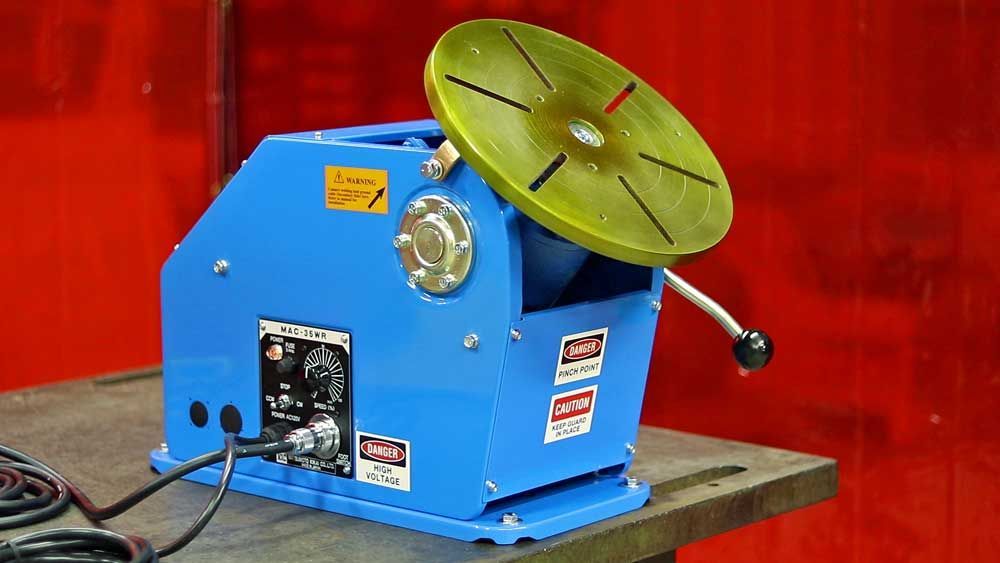

MT6 chuck mounted on the PS-1F bench-top welding positioner.

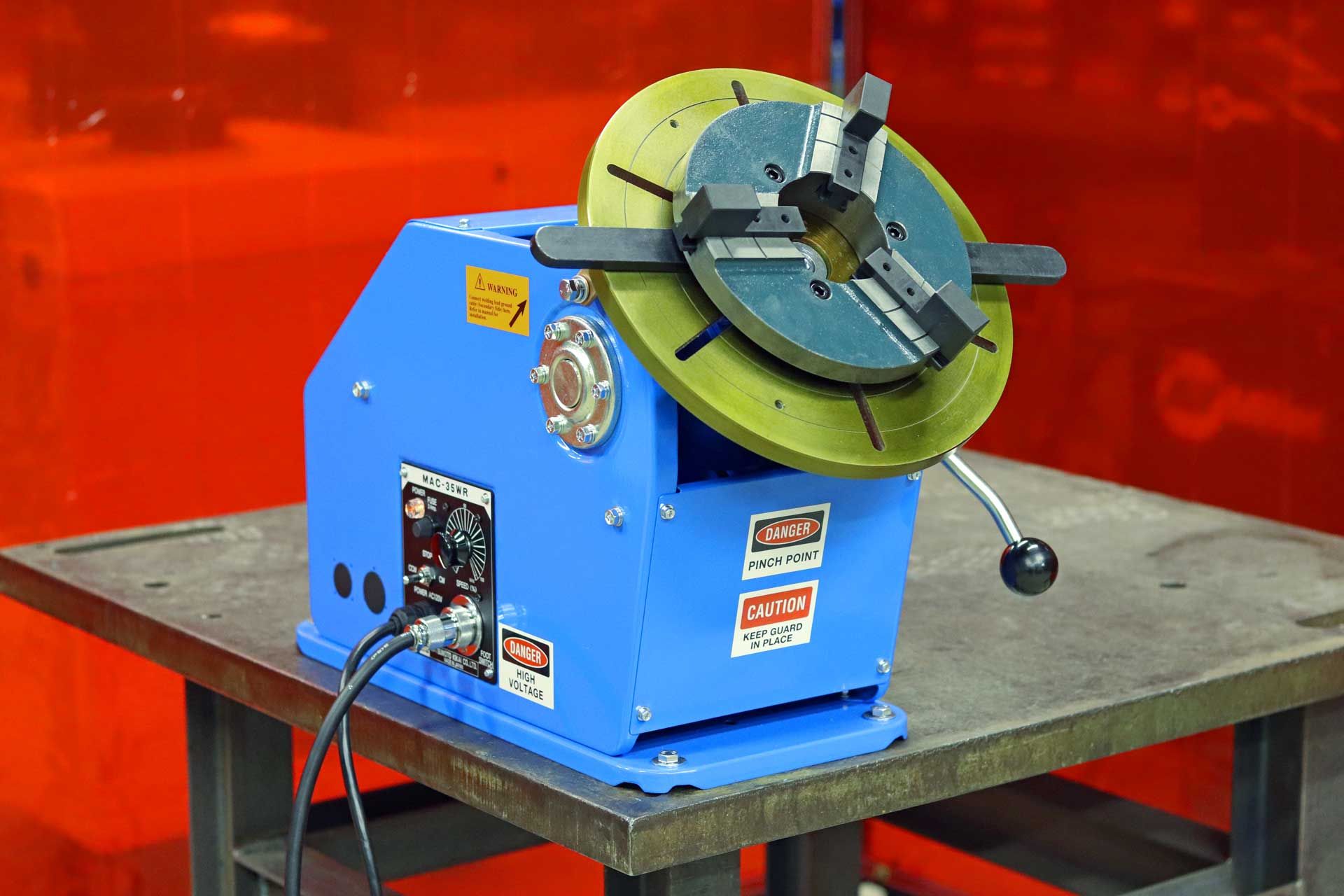

Above:  MAC PS-1F Benchtop Welding Positioner with optional MT6 chuck.
Package Deal: $1,799.00
Our #1 Seller

PS-1F Benchtop Welding Positioner with WP-200 chuck

Above: MAC PS-1F Benchtop Welding Positioner with optional MAC WP-200 welding chuck.
Package Deal: $1,999.00

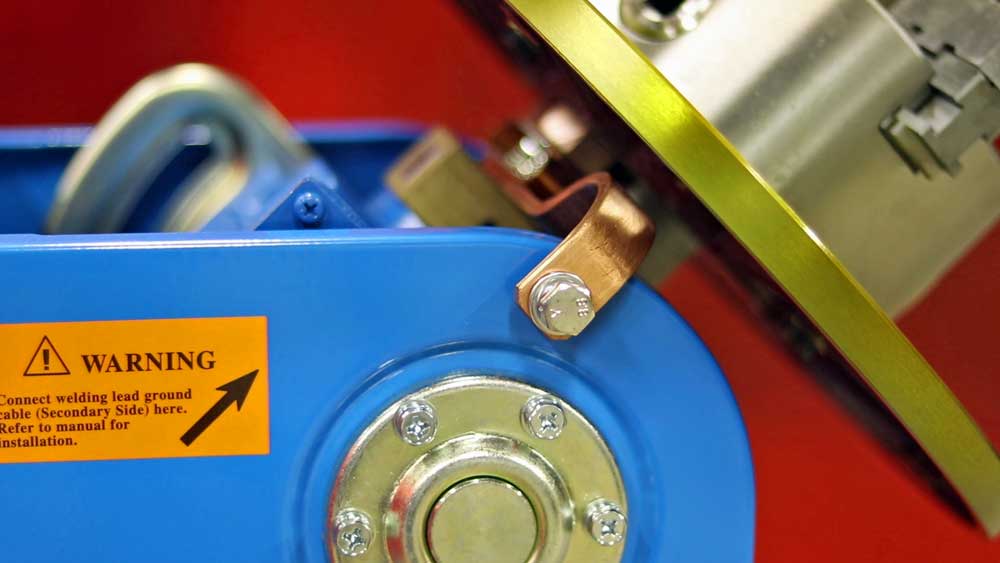

SIZE MATTERS You need a 500 Amp welding ground in order to handle the most demanding MIG, TIG and Flux-Core welding, especially when welding Aluminum. The PS-1F benchtop welding positioner comes standard with a 500 Amp. capacity welding ground (highest capacity in the industry).

  • 500 Amp Welding Ground. Highest in the Industry.
  • Controls

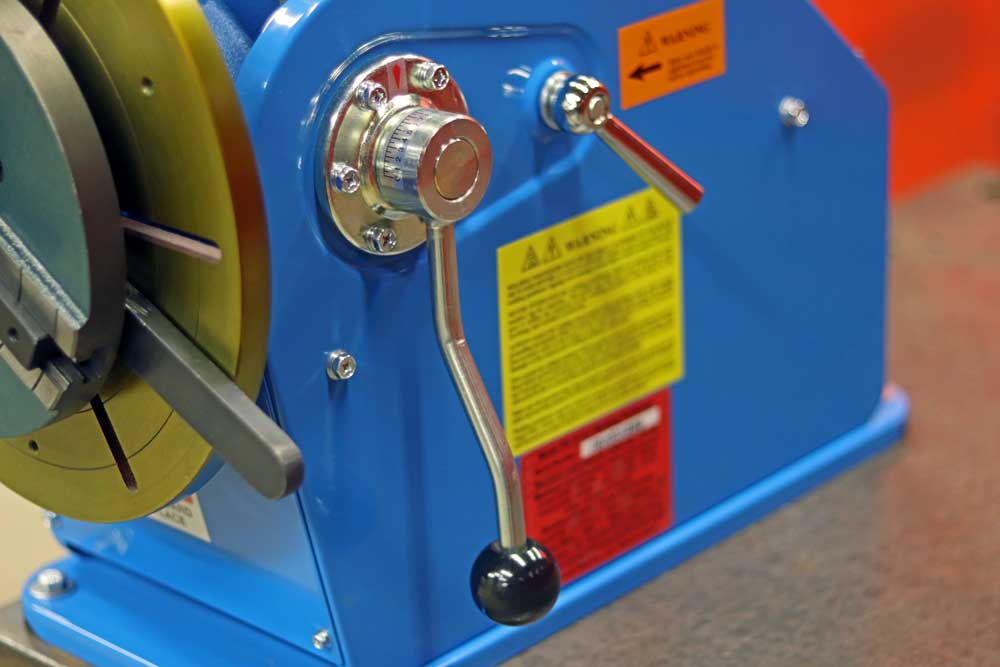

  • Tilt Handle

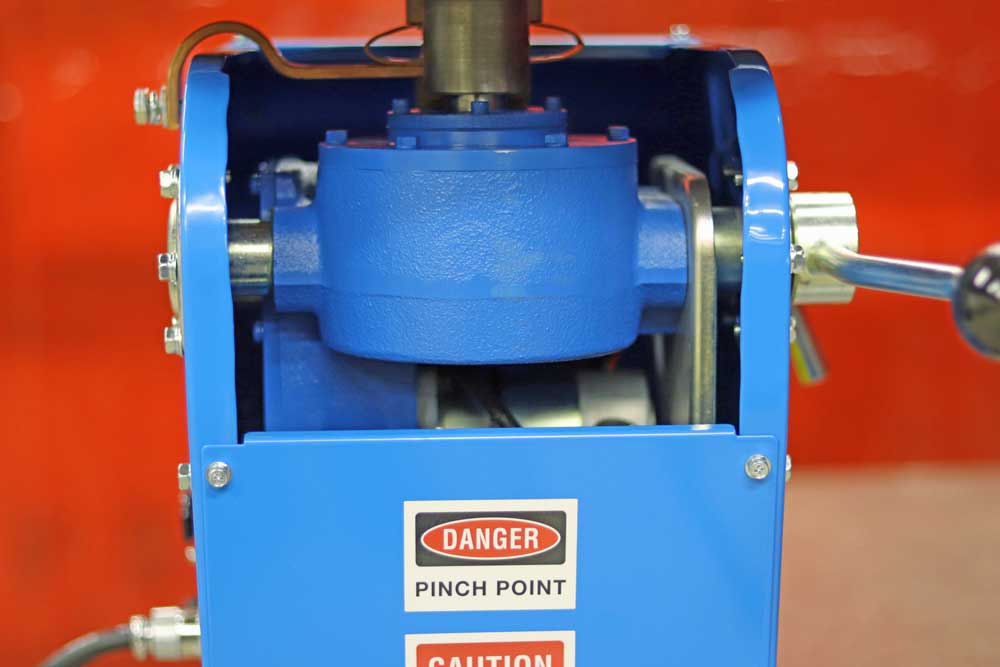

  • Gear Box
  • Call to place your order: 269-673-6572. Email sales@allfabcorp.com with questions.
    • Maximum Load Capacity Table Flat Horizontal position: 200 pounds
    • Maximum Load Capacity using outboard roller support: 100 pounds
    • The PS-1F benchtop welding positioner has a heavy duty worm gear rotation drive. All bearings are fully lubricated and sealed for long life and safety.
    • The 12 inch diameter table is machine flat and includes 6 slots with centering grooves. The table can be tilted from zero to 90 degrees.
    • The variable speed control is true DC control and will provide full torque and steady consistent speed, even at very low RPM
    • The PS-1F welding positioner features the highest capacity welding ground in the industry at 500 amps.

    Above: Demonstration of optional MAC WP-200 Welding Chuck used with the MAC PS-1F Benchtop Welding Positioner.

    PS-1F Welding Positioner

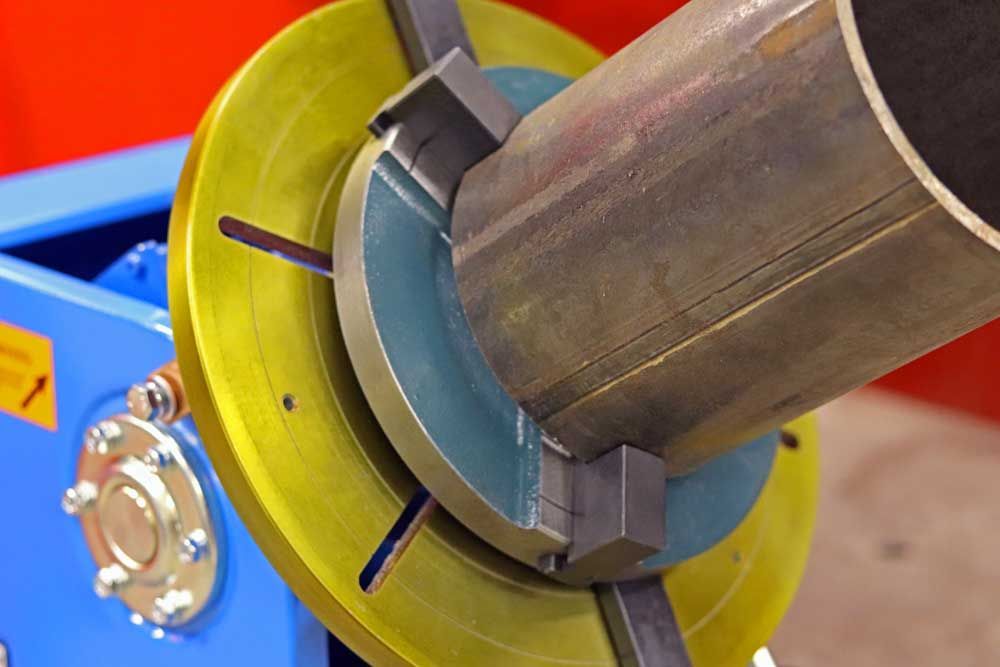

    Above: Optional WP-200 welding chuck holding workpiece.
    PS-1F Welding Positioner

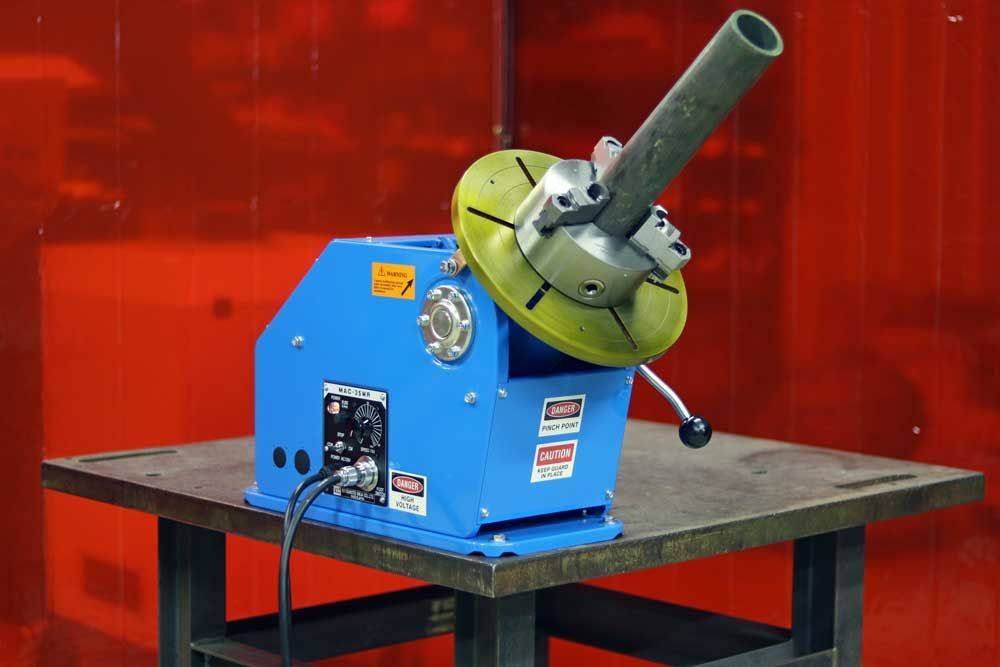

    Above: Optional MT6 welding chuck holding workpiece.
    PS-1F Welding Positioner

    Above: MAC PS-1F Benchtop Welding Positioner shown with an optional WP-200 Chuck.  The MAC PS-1F above is sitting on a Siegumund System 28 Basic welding table.

    MAC PS-1F Benchtop Welding Positioner

    Above: MAC PS-1F Benchtop Welding Positioner with optional MAC WP-200 welding chuck (Left).  MAC PS-2F Benchtop Welding Positioner with optional Gator MT10 welding chuck (Middle).  MAC PS-3F Benchtop Welding Positioner with Optional Gator MT12 Welding Chuck.  All sitting on a Siegmund 4'x8' Professional Extreme PLUS Welding Table.

    PS-1F Benchtop Positioners with MT6 Chucks being prepped for shipping to customer site.

    Above: MAC PS-1F Benchtop Positioners with optional MT6 Chucks being prepped for shipping to customer site.  Thousands of MAC PS-1F welding positioners have been sold and in use worldwide.

    Are you tired of dealing with excessive backlash and table drifting with your welding positioner? The PS-1F heavy duty worm gear rotation drive eliminates both problems.

    Specifications Model PS-1F Welding Positioner

    Capacity
    Maximum Load Capacity Table Flat Horizontal position – 200 pounds
    Maximum Load Capacity using outboard roller support - 100 pounds

    Maximum Load Capacity Table Tilted 90 degrees Vertical Position:
    Rating @ 2 inch CG load height from table – 100 pounds
    Rating @ 4 inch CG load height from table – 85 pounds
    Rating @ 8 inch CG load height from table – 60 pounds
    Rating @ 16 inch CG load height from table – 35 pounds

    Maximum Rotation Load Torque – 100 inch-pound
    Rating @ 2 inch CG Load Eccentricity from axis – 50 pounds
    Rating @ 5 inch CG Load Eccentricity from axis – 20 pounds
    Rating @ 8 inch CG Load Eccentricity from axis – 12.5 pounds

    CG = Center of Gravity

    Rotation

    Motor: 35W 3000 rpm DC Variable speed.
    Speed Range – Variable from 0.3 to 5 RPM
    Speed Accuracy – 2 % of base speed.
    Rotation Drive – Fully enclosed & lubricated self-locking worm gear.

    Tilt

    Tilt Range – 90 degrees forward
    Tilt Torque – Manual
    Tilt Actuation – Hand Lever with clamp.
    Table

    Round – 12 inch Diameter with centering grooves.
    Number of Slots – 6 @ 60 degrees
    Tee Nut bolt size – 1/4 inch
    Inherent overhang – 4.65 inches

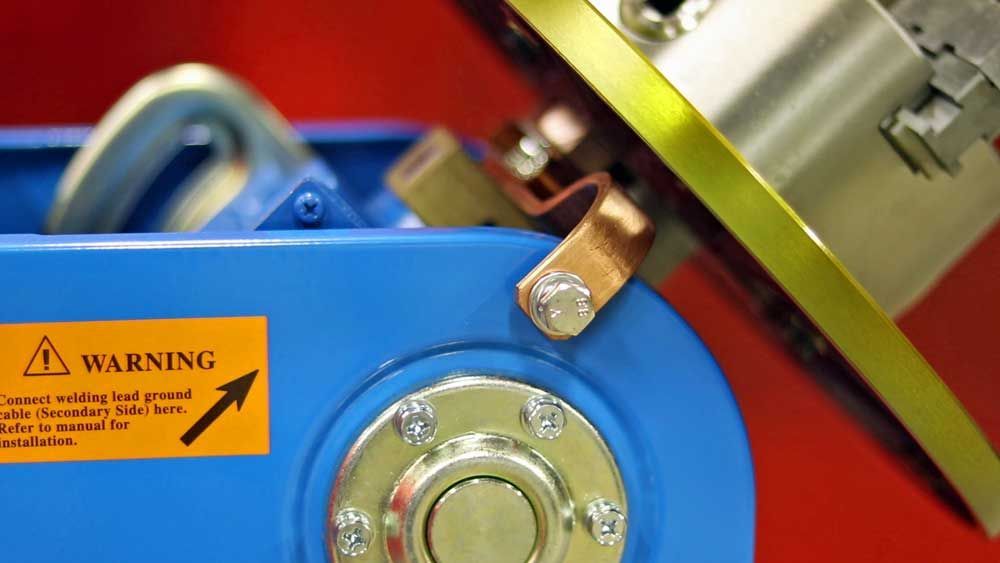

    Welding Ground Conduction – 500 Amps thru spring loaded mechanical ground.

    Primary Input power – AC 115 volts 60 Hz Single Phase 10 Amp.

    Controls

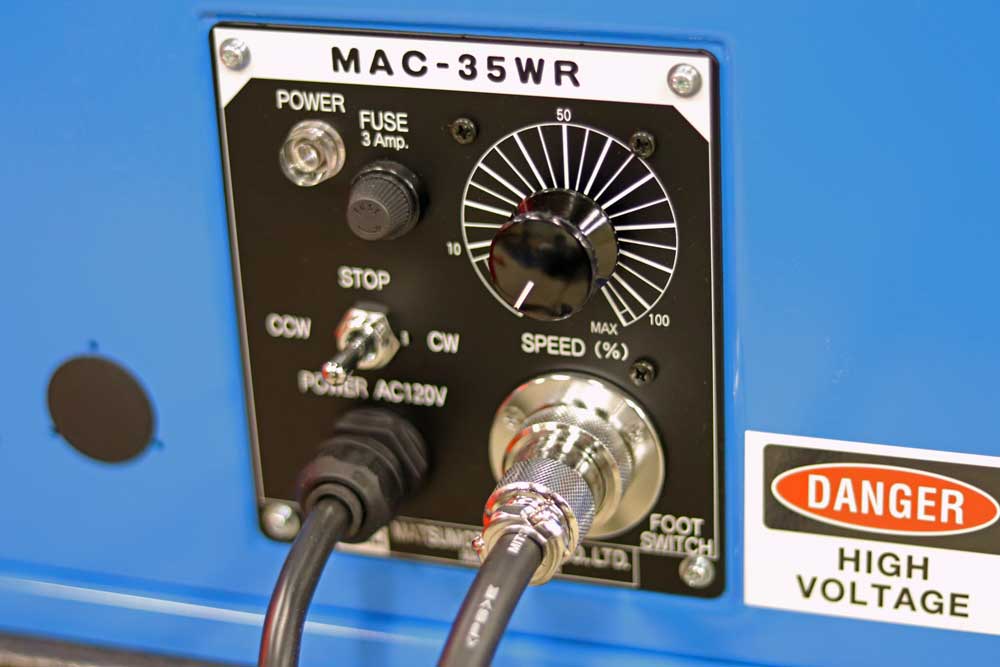

    Internal Control box – With Power on indicator light & Foot control receptacle.
    Speed Control – One turn potentiometer
    Directional Control – Forward-Stop-Reverse switch.
    Overload Protection – 3 Amp motor fuse.
    Dynamic braking – Brings table rotation to a quick stop.
    Foot Switch – Remote start/stop with 10 feet of cable.

    Frame – 4 anchor bolt holes.

    Approximate shipping Weight – 67 lbs. Box – Can ship by UPS Ground.
    All-Fab has sold thousands of PS-1F Benchtop Welding Positioners to shops all across North America. See more images of the PS-1F welding positioner being used in production.
    PS-1F Welding Positioner in Production
    Model PS-1F-5-A Options - Welding Chucks
    Welding Chuck Option

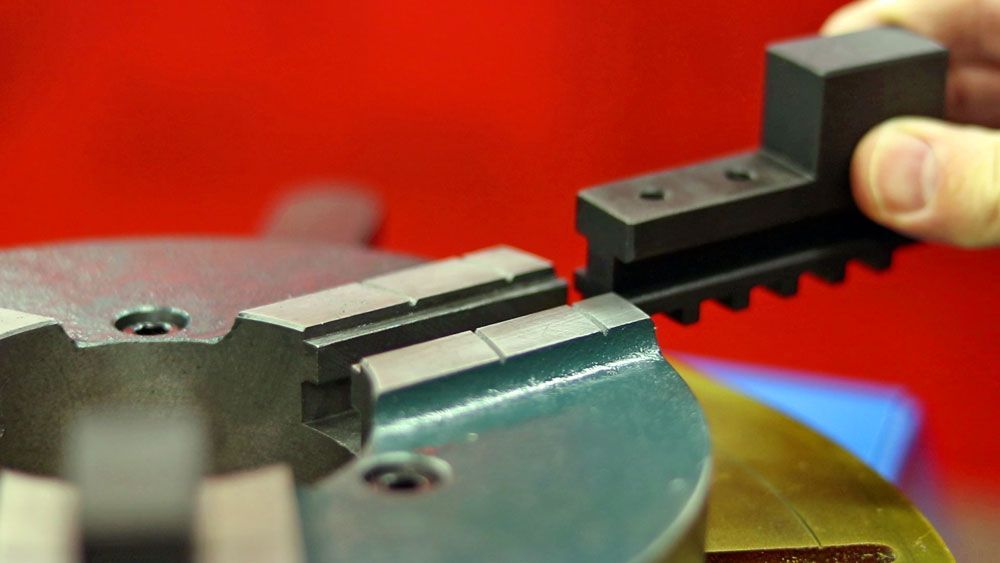

    Optional MT6 3-jaw self-centering scroll chuck, features hardened reversible American standard serrated jaws. The MT6 chuck has a clamping range of .13 to 6.00 inches on the outside diameter.
    Welding Chuck Option
    Optional MAC WP-200 welding chuck Three jaw self-centering with reversible jaws. The WP-200 has a clamping range of .79 - 8.27 inches on the outside diameter. The WP-200 opens and closes quickly ideal for loading and unloading light work-pieces. Handles are permanently attached eliminating the need for a T-handle wrench.
    Feature
    PS-1F Welding Positioner
    Competitor Positioners

    500 AMP Welding Ground

    Fully enclosed & lubricated self-locking worm gear

    One Year Warranty
