EX-R10-A Tank Turning Rolls

MAC EX-R10-A Tank Turning Rolls

EX-R10-A Tank Turning Rolls

Specifications MAC Model EX-R10-A Turning Rolls



  • Input Power AC 120 volts 60 Hz Single Phase
  • Maximum load capacity per set of one drive roll and one idler roll 20,000 lb.
  • Maximum work-piece diameter 120 in.
  • Work-piece diameter range 15.8 in. to 120 in.
  • Speed Range 5.5 to 55 in./min.

Approximate shipping weight per set 1,420 lb.

EX-R10-A Tank Turning Rolls

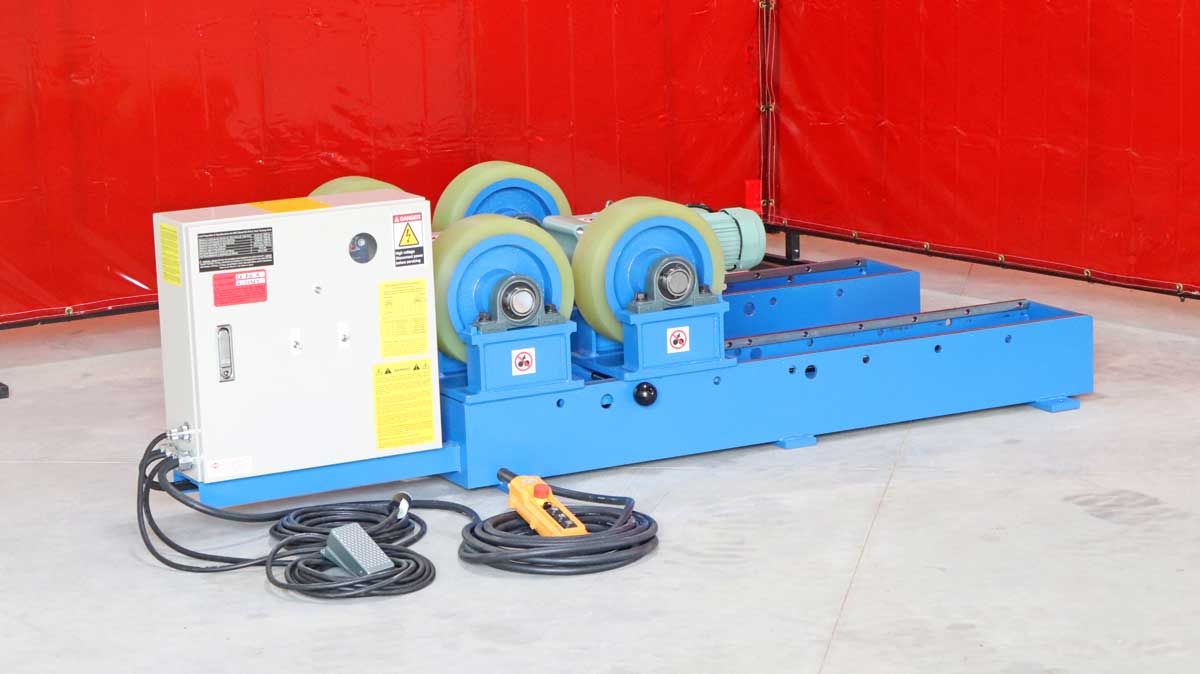

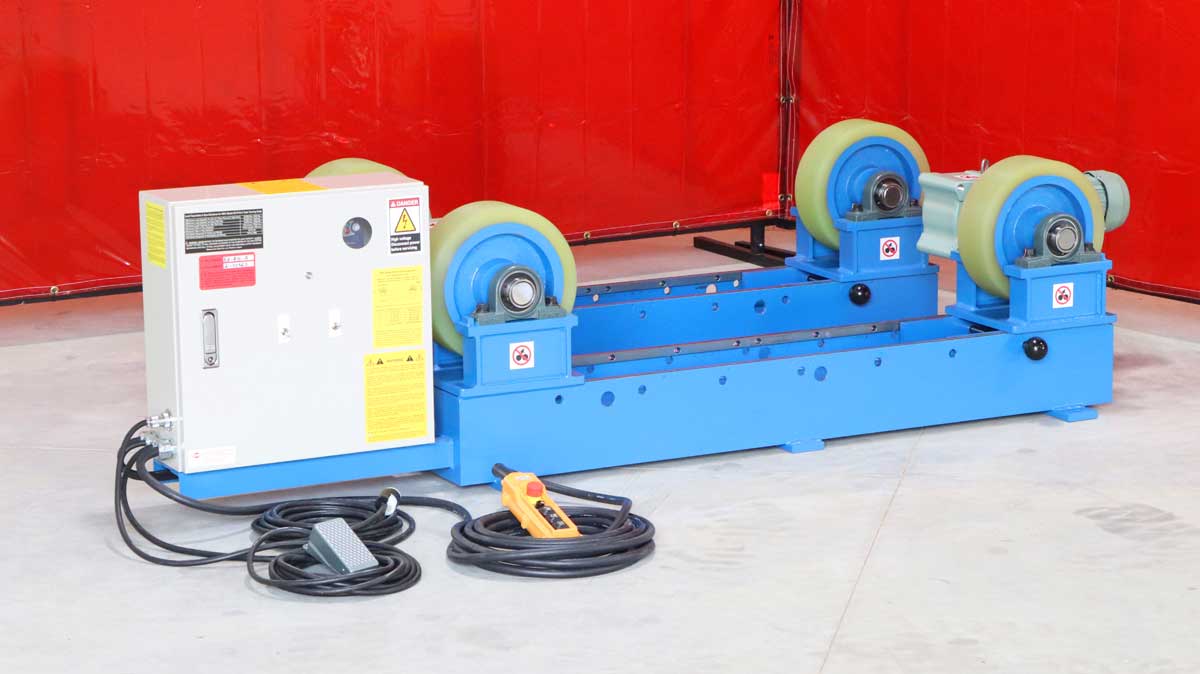

Above: MAC Model EX-R10-A Tank Turning Roll with power and idler rolls at the minimum distance.

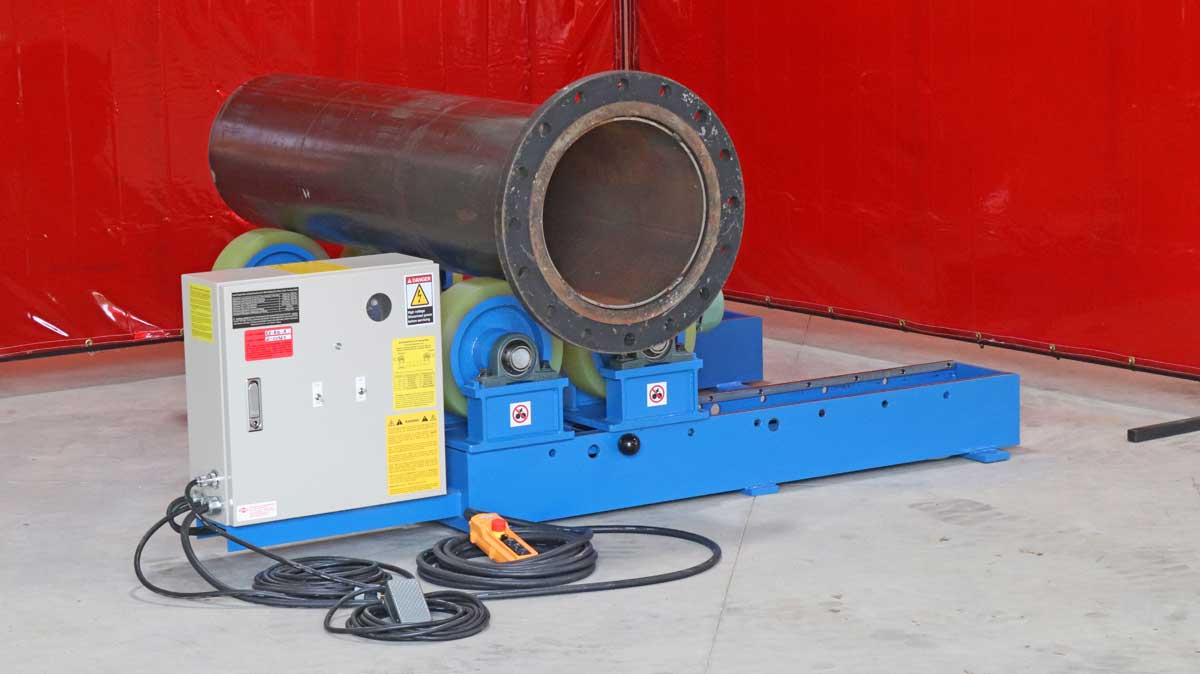

MAC Model EX-R-10-A Tank Turning Roll turning a 16 inch diameter pipe

Above: MAC Model EX-R-10-A Tank Turning Roll turning a 16 inch diameter pipe.

Standard Features MAC Model EX-R10-A Turning Rolls

  • Push Button Pendant Control – The hand held pendent control features a maintained Forward – Stop- Reverse push buttons along with a variable speed control dial, Emergency Stop button and 32 feet of control cable.


  • Foot Control – An on/off foot control is also provided with forward and reverse switch located at the control box. A quick release plug in at the control box allows the foot control to be quickly and easily removed and stored when not in use.


  • LED frequency display for speed adjustment – An AC inverter drive provides infinitely variable roll speed, long life and low maintenance. A sight window is provided at the control box to allow viewing the LED frequency display which can be used to quickly and accurately adjust the roll speed back to previous settings.


  • Low Voltage Controls – The control voltage used in the pendent, foot control and switches is stepped down to 24 volts DC and fused at 0.5 amps for greater operator safety.


  • AC 120 Volts Input Power – The EX-R10 uses AC 120 volt 60 Hz single phase input power. Allowing the rolls to be used anywhere in the shop.


  • Qty 2 Heavy Duty Gear Drives – Both drive rolls are powered by a heavy duty direct gear drive and brake motor. All of the gears and bearings are fully sealed and lubricated for long life and safety.


  • Non Marring Rolls – Both the drive and idler rolls are heavy duty iron core with extra thick urethane for long life and traction. The rolls will not mar or scratch materials such as stainless steel or aluminum.


  • Highest Quality Workmanship and Materials – The model EX-R10 rolls are manufactured to world class quality and come with a 1 year warranty. We maintain a complete parts inventory available for immediate shipment if needed.

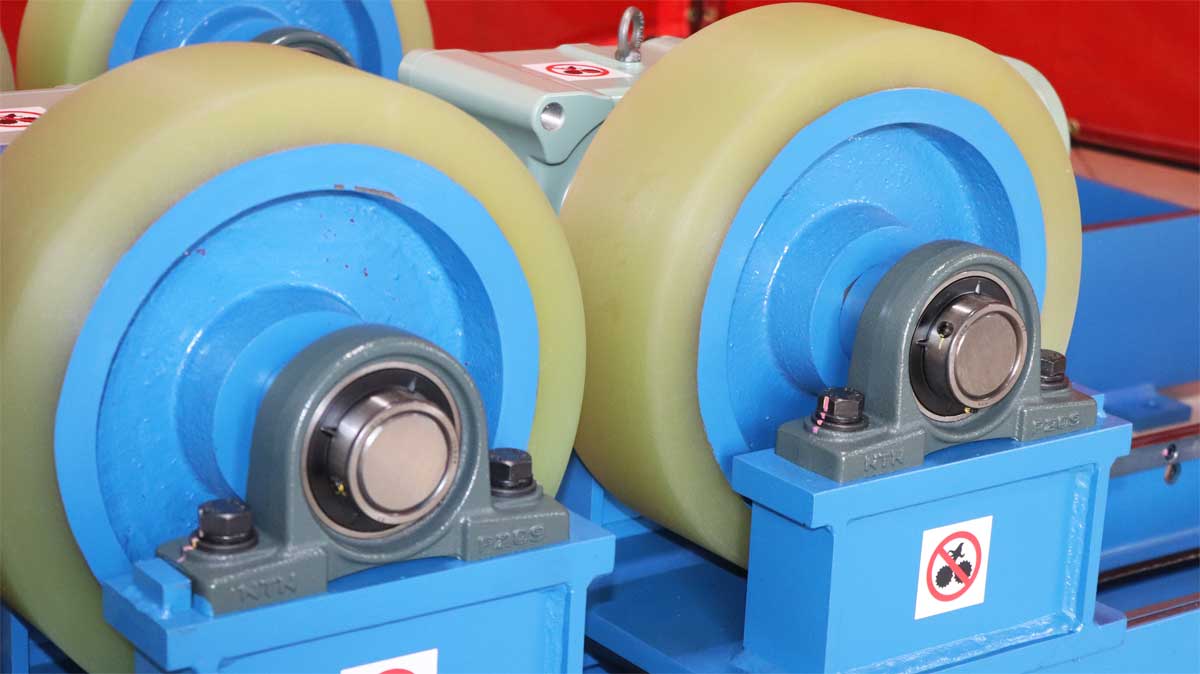

MAC Model EX-R10-A Tank Turning Roll Wheels

Above: MAC Model EX-R10-A Tank Turning Roll drive and idler rolls have a heavy duty iron core with extra thick urethane for long life and traction. The rolls will not mar or scratch materials such as stainless steel or aluminum.

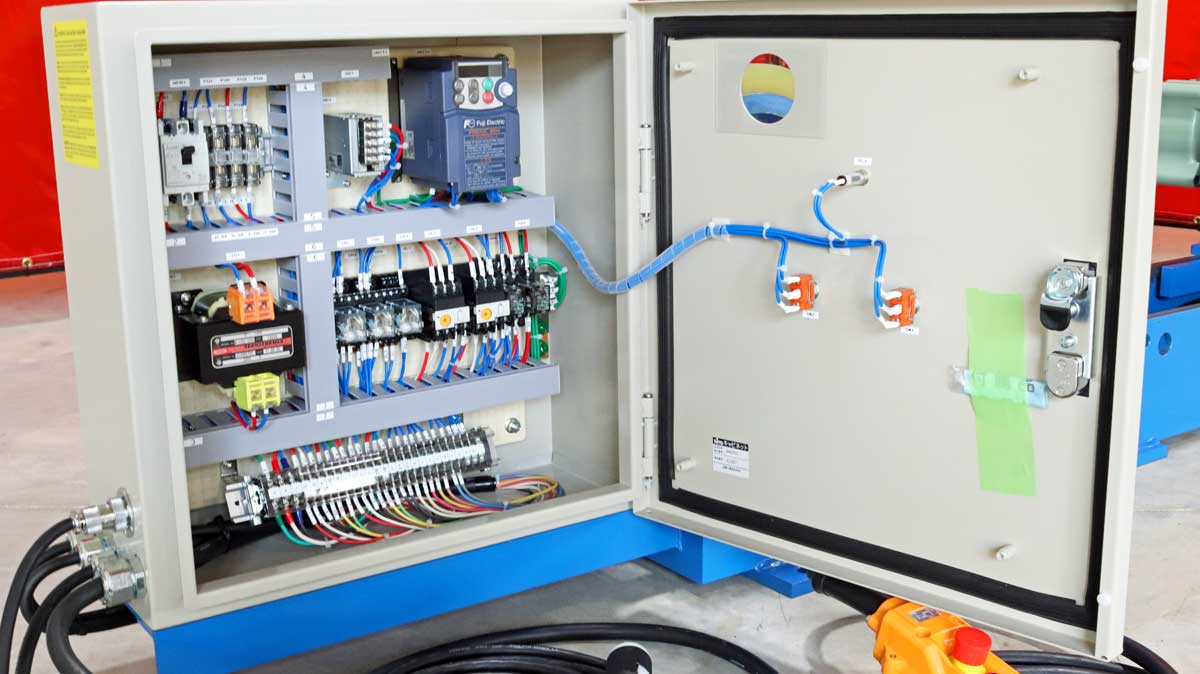

MAC Model EX-R10-A Tank Turning Roll Electrical Box

Above: MAC Model EX-R-10-A Tank Turning Roll Electrical Box.

Above Video: MAC Model EX-R10-A Turning Roll turning a 16 inch diameter pipe.

  • Power AC 120 volts 60 Hz Single Phase
  • Maximum load capacity per set of one drive roll and one idler roll 20,000 lb.
  • Maximum work-piece diameter 120 in.
  • Work-piece diameter range 15.8 in. to 120 in.
  • Speed Range 5.5 to 55 in./min.
  • Approximate shipping weight per set 1,420 lb.

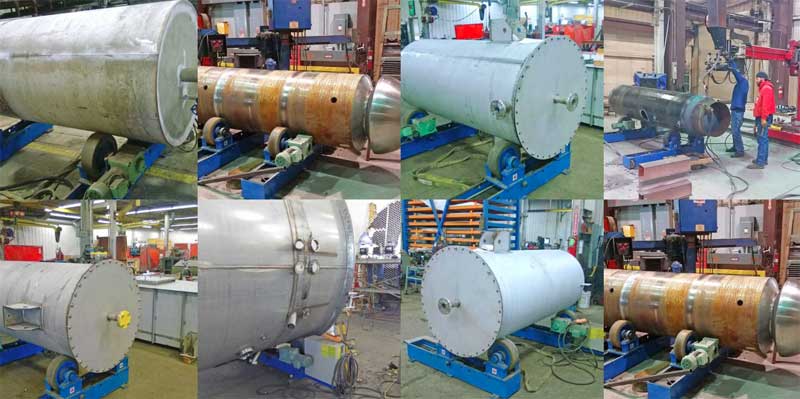

All-Fab Corp. has sold thousands of tank turning rolls to satisfied customers all across North America. See photos of just a few tank turning rolls in production  below.

EX-R10-A Tank Turning Roll in production
